Brother 2104D - Feed Timing Adjustment

3 - 15
Adjustment
Adjustment Adjustment

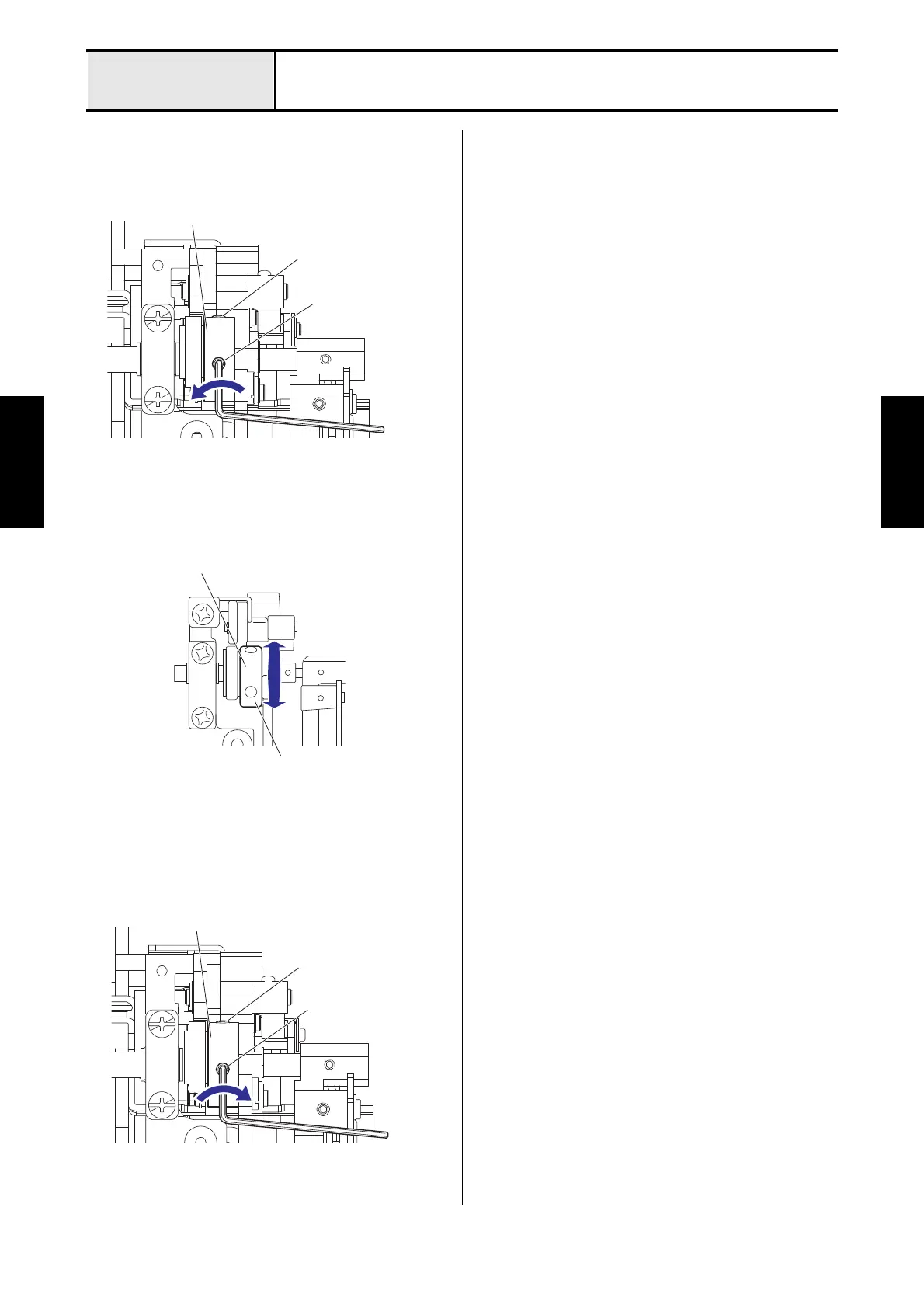

Feed timing adjustment
1. Loosen the two screws (set screw, socket (FT)
M4x4) for the feed eccentric wheel, and then
remove the screw (rear side).
2. Align the screw hole (rear side) of the feed
eccentric wheel with the cut surface of the
driving shaft.
3. Secure the screw (rear side) of the feed
eccentric wheel to the cut surface of the driving
shaft, and then secure the screw (front side).
Set screw, socket
(FT) M4x4
(Rear side)
Set screw, socket
(FT) M4x4
Feed eccentric wheel
Feed eccentric wheel
Align the screw hole with the
cut surface of the driving shaft.
Set screw, socket
(FT) M4x4
(Rear side)
Set screw, socket
(FT) M4x4(Front side)
Feed eccentric wheel
