Brother 2104D - Page 24

Disassembly
2 - 13
Disassembly Disassembly
Main frame / Covers / Upper thread guide
4. Remove the screw (bolt, socket M3x12). Loosen the nut 1 M4 to remove the tension dial. (four
locations)

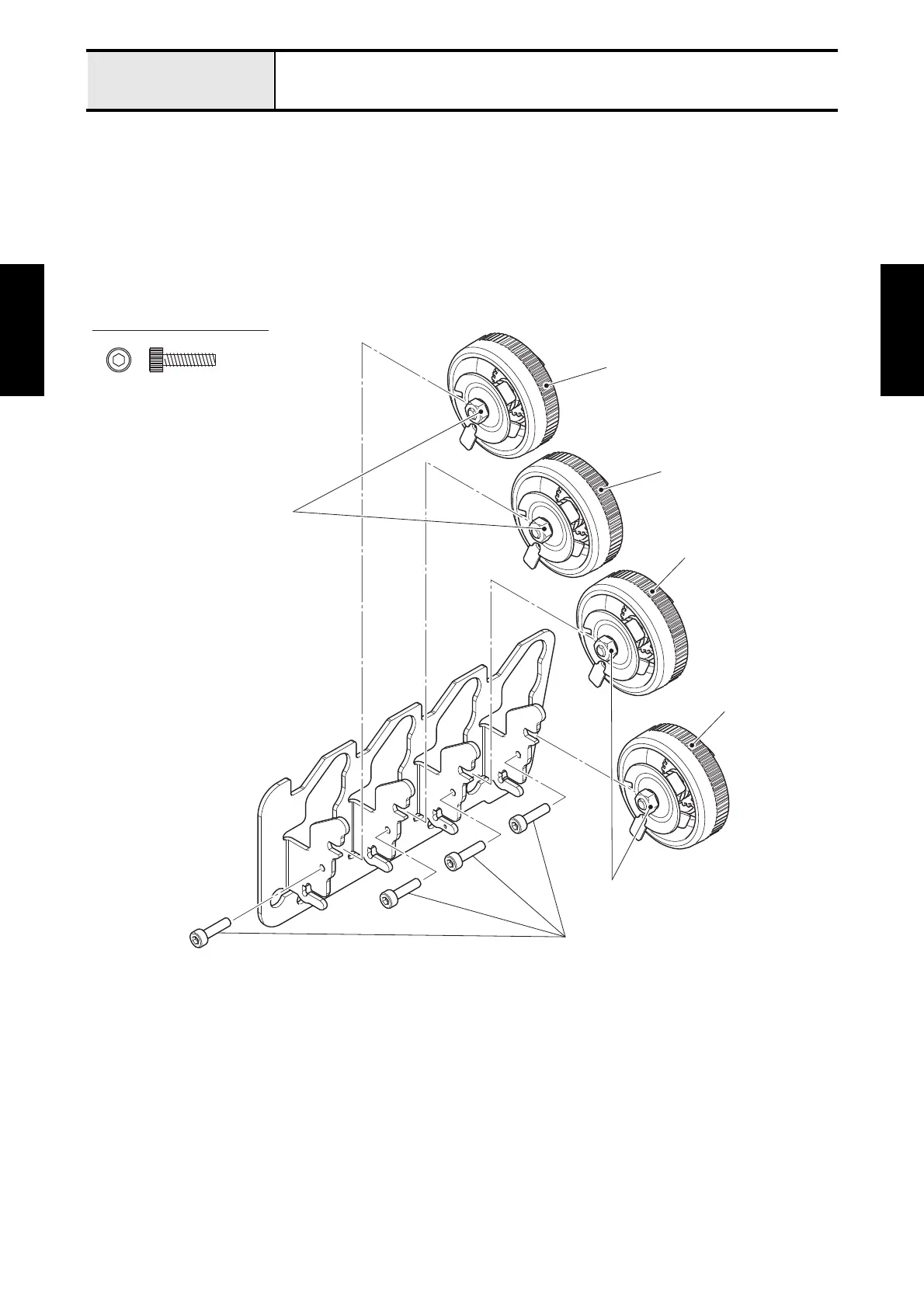

Fig. 2-11
Bolt, Socket M3X12
Tension dial (yellow)
Tension dial (green)
Tension dial (pink)
Tension dial (blue)
Bolt, socket M3x12
Nut 1 M4
Nut 1 M4
