Disassembly
2 - 39
Disassembly Disassembly
Feed mechanism
4. Remove the screw (set screw, socket (CP) M4x4) to pull out the adjusting link shaft from the differential
feed adjusting and the differential feed link.
*Assembling note
• Fully tighten the screw after performing "Differential adjusting plate".
5. Remove the screw (set screw, socket (CP) M4x4) to remove the differential feed link from the link shaft.
6. Remove the differential feed adjusting from the feed bar lever.
7. Remove the retaining ring E4 (BK) from the feed bar lever shaft. Pull out the feed bar lever shaft to
remove the feed bar lever. Remove the retaining ring E4 from the feed bar lever shaft.
8. Remove the retaining ring E4 from the adjusting block shaft. Pull out the adjusting block shaft to
remove the feed link from the feed bar lever. Remove the retaining ring E4 from the adjusting block
shaft.

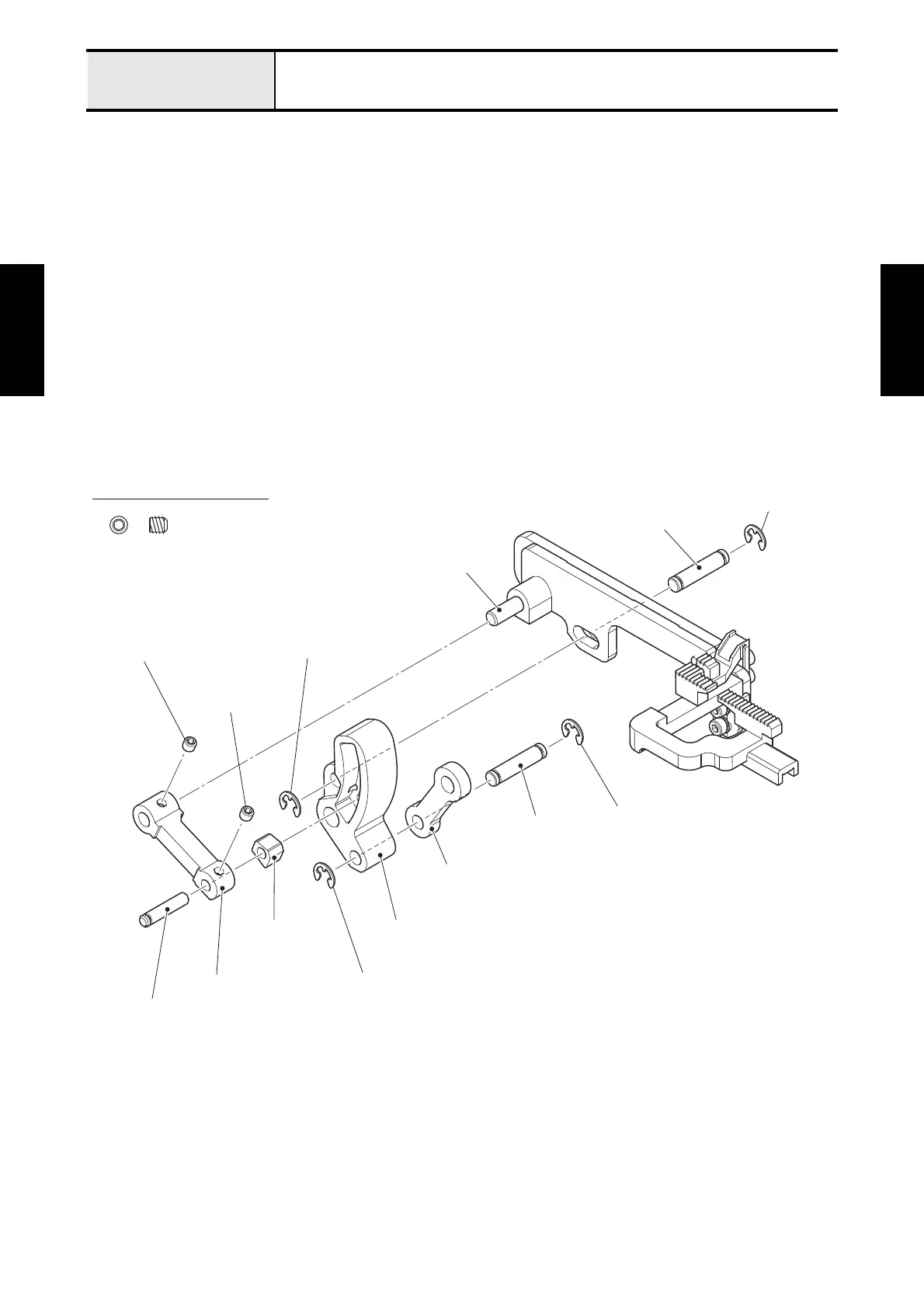

Fig. 2-4
Set Screw, Socket (CP) M4X4
Retaining ring E4 (BK)
Set screw, socket
(CP) M4x4
Set screw, socket
(CP) M4x4
Retaining ring E4
Retaining ring E4
Retaining ring E4
Adjusting link shaft
Differential feed link
Differential feed
adjusting
Feed bar lever
Feed link
Adjusting block
shaft
Link shaft
Feed bar lever shaft
