3 - 33
Rotary hook drive mechanism
Main unit
Assembly
9

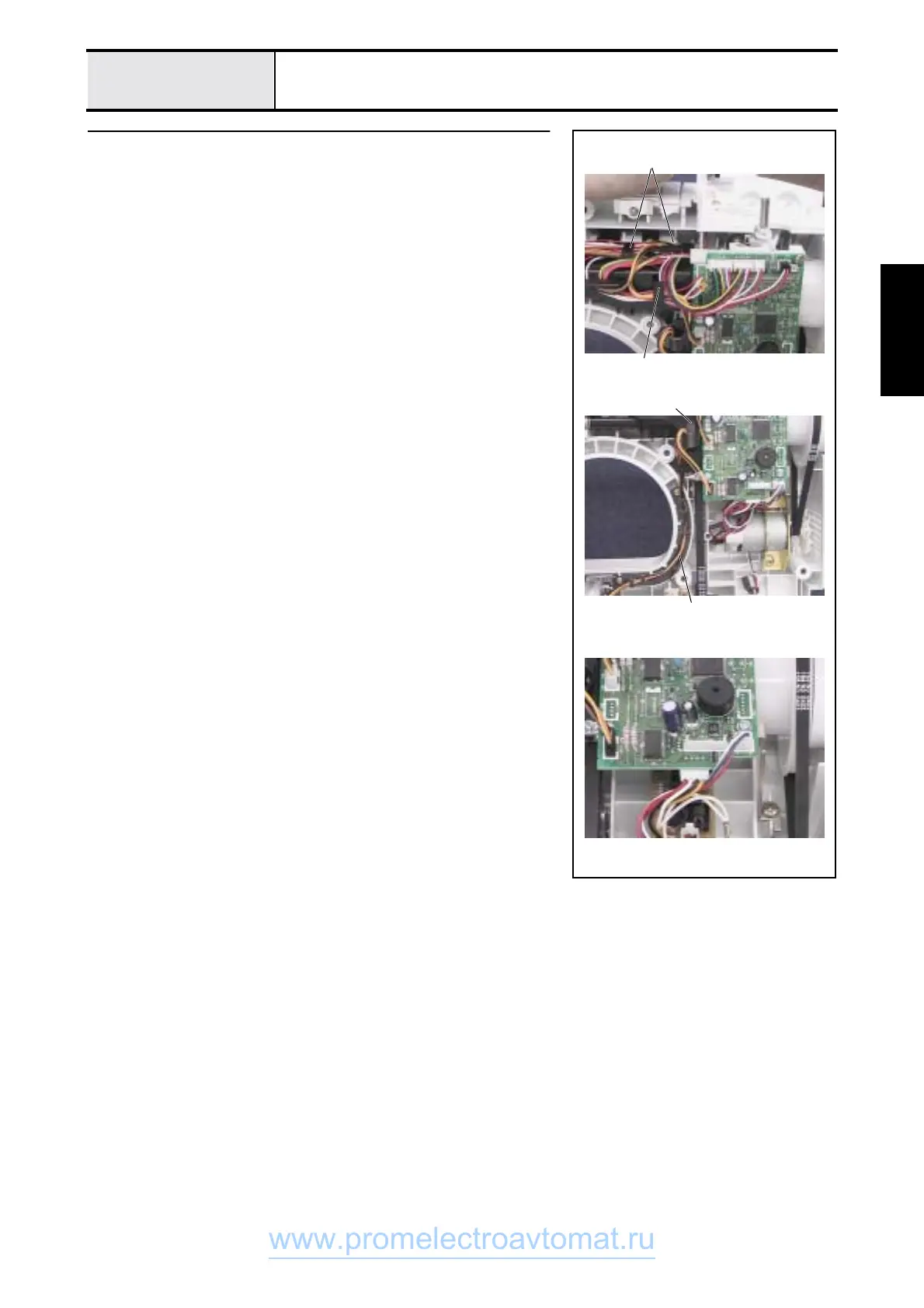

Lead assy. processing
1. Bring the various lead wires for the needle-presser module to the shutter
cover hook 1, and attach to the main PCB assy.
2. Bring the various lead wires from the feed module to the lead wire guide
2 and shutter cover hook 3, and attach them to the main PCB assy.
3. Connect the foot controller jack lead wires and motor PCB lead wires to
the main PCB assy.
4. Connect the main motor assembly lead wires to the motor PCB assy.
2
1
3
1
