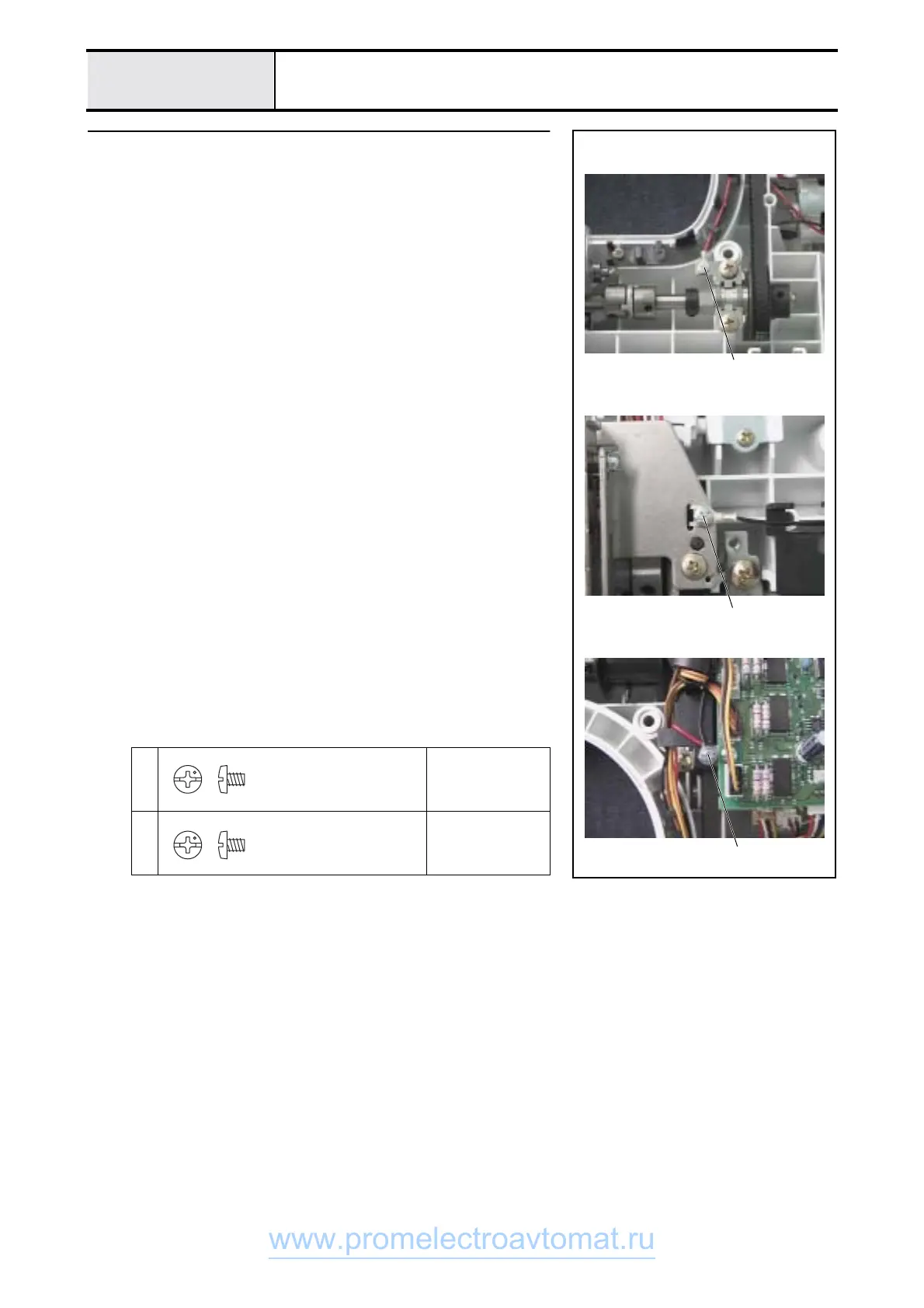

Rotary hook drive mechanism
Main unit
10
Ground lead wire assy. attachment
1. Attach the ground lead wire assy. using screws 1 (two).
2. Tighten the ground lead wire assy. to both the shutter cover and Set plate L
using the screw 4 attached in "3." of 3 - 32 "8 Main PCB assy./motor PCB
assy. attachment."
1
Torque
0.29 - 0.59 N-m
4
Torque
0.78 - 1.18 N-m
1
1
4
Screw, Bind
M3X4
Color; Silver
Screw, Bind
M3X4
Color; Silver
