3 - 40
Front cover
Main unit
8

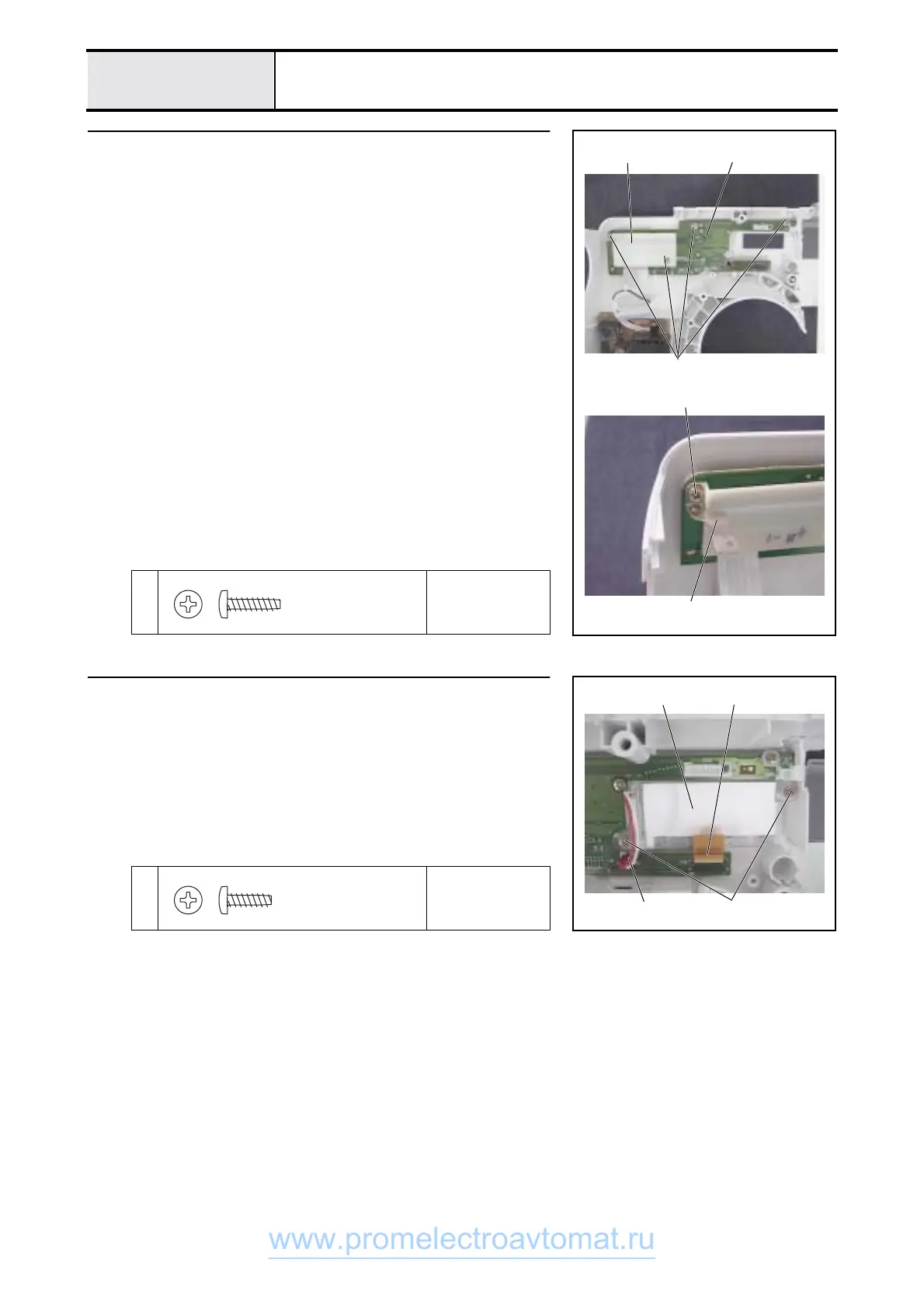

PCB assy : operation S3. attachment (S3 only)
1. Attach the PCB assy : operation S3. 1, Board pressers (two), the PCB
cover 2 and front cover fixed plate 3 to the front cover using screws 1
(four).
1
Torque
0.59 - 0.78 N-m
3
1
1
1
2
Taptite, Bind B
M3X12
Color; Gold
9
Single light guide assy S3. attachment (S3 only)
1. Attach the Single light guide assy S3. 1, and PCB hold plate to the front
cover using screws 1 (two).
2. Connect the back light lead wire connector 2 and Single light guide assy
S3. connector 3 to the PCB assy : operation S3.
1
Torque
0.59 - 0.78 N-m
2
1
1
3
Taptite, Bind B
M3X10
Color; Gold
