Front cover
Main unit
12

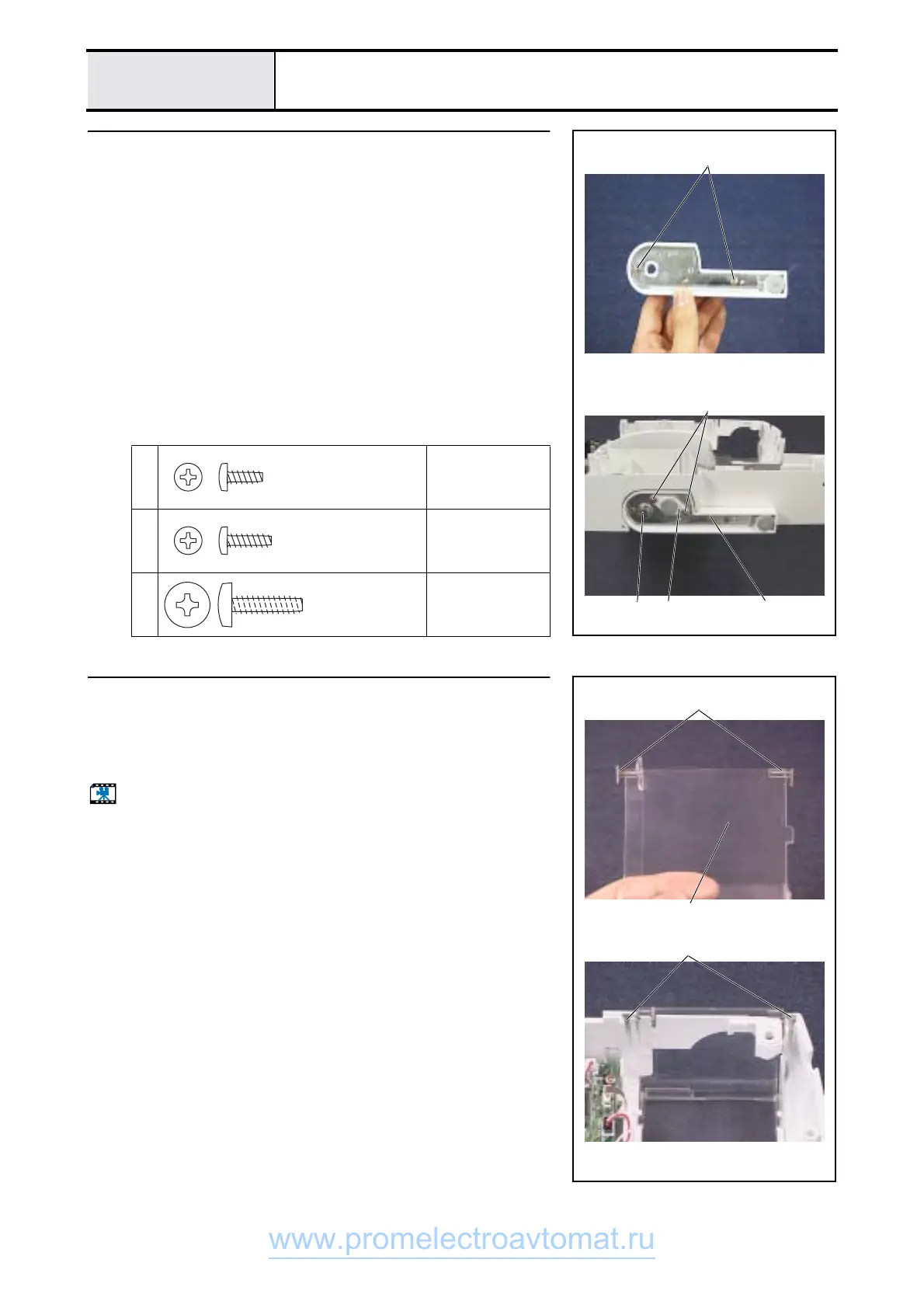

Base cover A attachment
1. Attach base plate A 2 to the base cover 1 using screws 1 (two).
2. Attach the rubber cushion plinth 3 to base plate A 2 using screws 2
(two).
3. Attach base plate rubbers A (two) to base plate A 2.
4. Attach the base cover washer and base cover A assy. 4 to the front cover
using screws 3.
1
Torque
0.57 - 0.78 N-m
2
Torque
0.57 - 0.78 N-m
3
Torque
1.18 - 1.57 N-m
43
2
3
1
Taptite, Bind B
M3X8
Color; Gold
Taptite, Bind B
M3X10
Color; Gold
Giza Tite
5X16
Color; Gold
13
Cassette cover attachment
1. Attach the cover link plate assys. 2 (two) to the cassette cover 1.
2. Attach the cassette cover to the front cover using the link hold plates 3
(two).
3. Attach the front cover for the cassette to the front cover.
Start movie clip (CD-ROM version only)
1
3
2
