Brother CS8000 Series User Manual

3 - 53
Needle-presser module
Modules
Assembly
11
Lever release plate assy. attachment

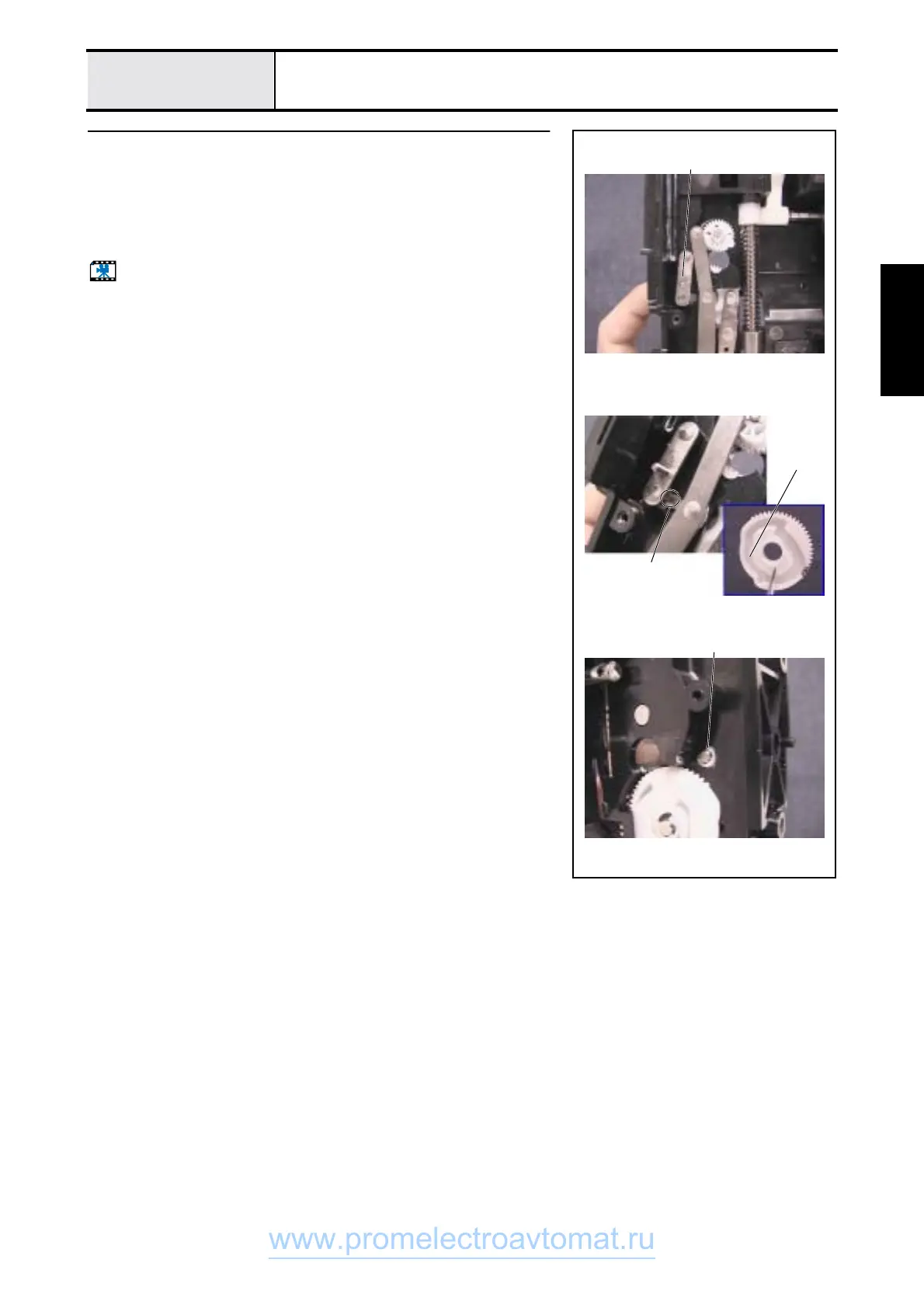

1. Attach the lever release plate assy. 1 to the upper unit holder, and attach
retaining ring E3.
*Key point
• Align the shaft of the lever release plate assy. with the narrow
groove in the T cam.
Start movie clip (CD-ROM version only)
Shaft
Narrow
groove
1
Retaining ring E 3
