3 - 55
Needle-presser module
Modules
Assembly
13

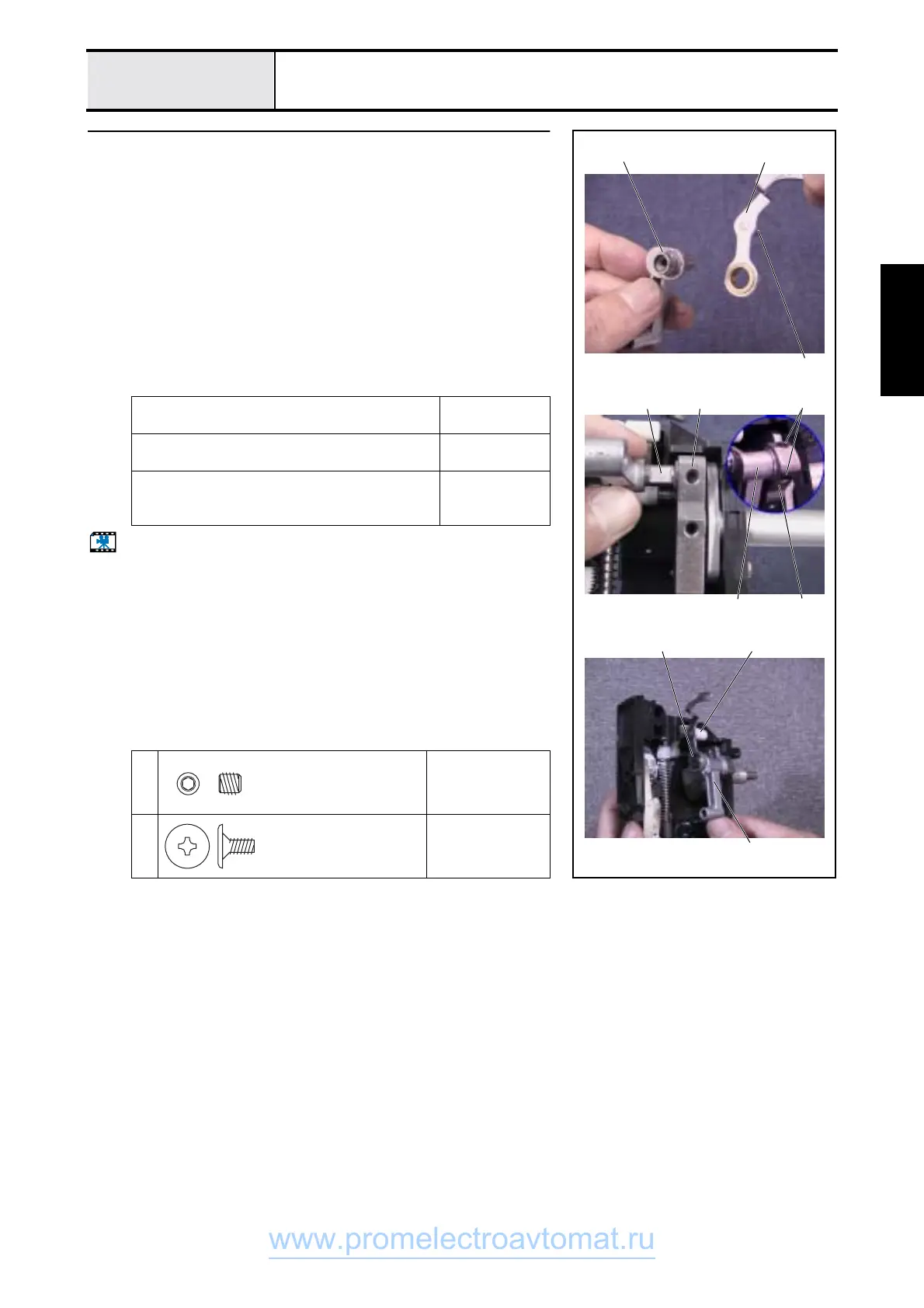

Thread take-up lever assy. attachment
1. Apply a small amount of Molykote EM30L to the surface of the thread
take-up lever 1 on the needle bar crank rod assy. and the thread take-up
lever assy. shaft 2.
2. Attach the needle bar crank rod assy. 3 to the thread take-up counter
weight 4 using screws 1 (two).
*Key point
• Align the needle bar crank D cut 5 with the thread take-up
counter weight screw hole 6.
3. Attach the thread take-up lever assy. 7 to the needle bar crank rod assy. 3
and thread take-up lever link 8 using screw 2.
*Key point
• Screw 2 is reverse threaded.
Start movie clip (CD-ROM version only)
Apply Molykote EM30L grease to the needle bar
crank shaft
Small amount
Apply Molykote EM30L grease to the thread
take-up lever shaft
Small amount
Apply Molykote EM30L grease to the to the
needle bar crank thread take-up attachment (left
screw attachment) surface
Small amount
1
Torque
1.37 – 1.77 N
−m
2
Torque
1.18 – 1.57 N
−
m
1
2
3
3
5 6
4
7
8
1
2
Set Screw, Socket (FT)
M5X5
Color; Black
Screw, Flat
SM3.57-40X7 L
Color; Black
