3 - 56
Needle-presser module
Modules
14

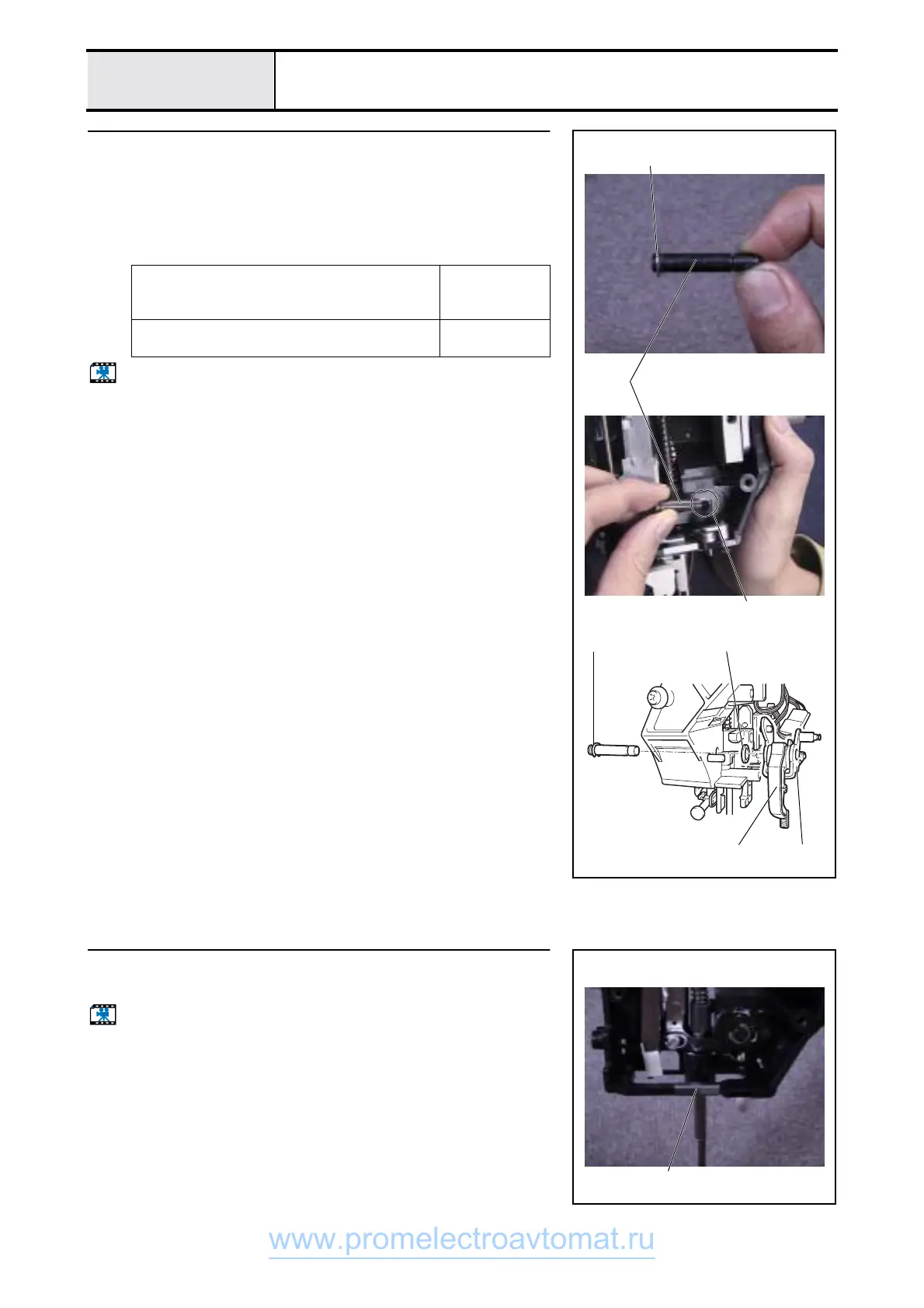

Presser foot lifter attachment
1. Attach retaining ring E4 to the presser lift shaft 1.
2. Apply a small amount of Molykote EM30L to the presser lift shaft 1.
3. Insert the presser lift shaft 1 into the square hole 2 in the thread releaser
assy., and attach the washers 3 (two) and presser foot lifter 4.
4. Attach retaining ring E4 to the presser lift shaft 1.
Start movie clip (CD-ROM version only)
Apply Molykote EM30L grease to the presser
foot lifter operating surface of the presser lifter
shaft.
Small amount
Apply Molykote EM30L grease to the presser bar
clamp operating surface of the presser foot lifter
Small amount
1
2
Retaining ring E4
4
Retaining ring E4
5
3
15
Thread guide plate attachment
1. Attach the thread guide plate to the upper unit holder 1.
Start movie clip (CD-ROM version only)
1
