3 - 57

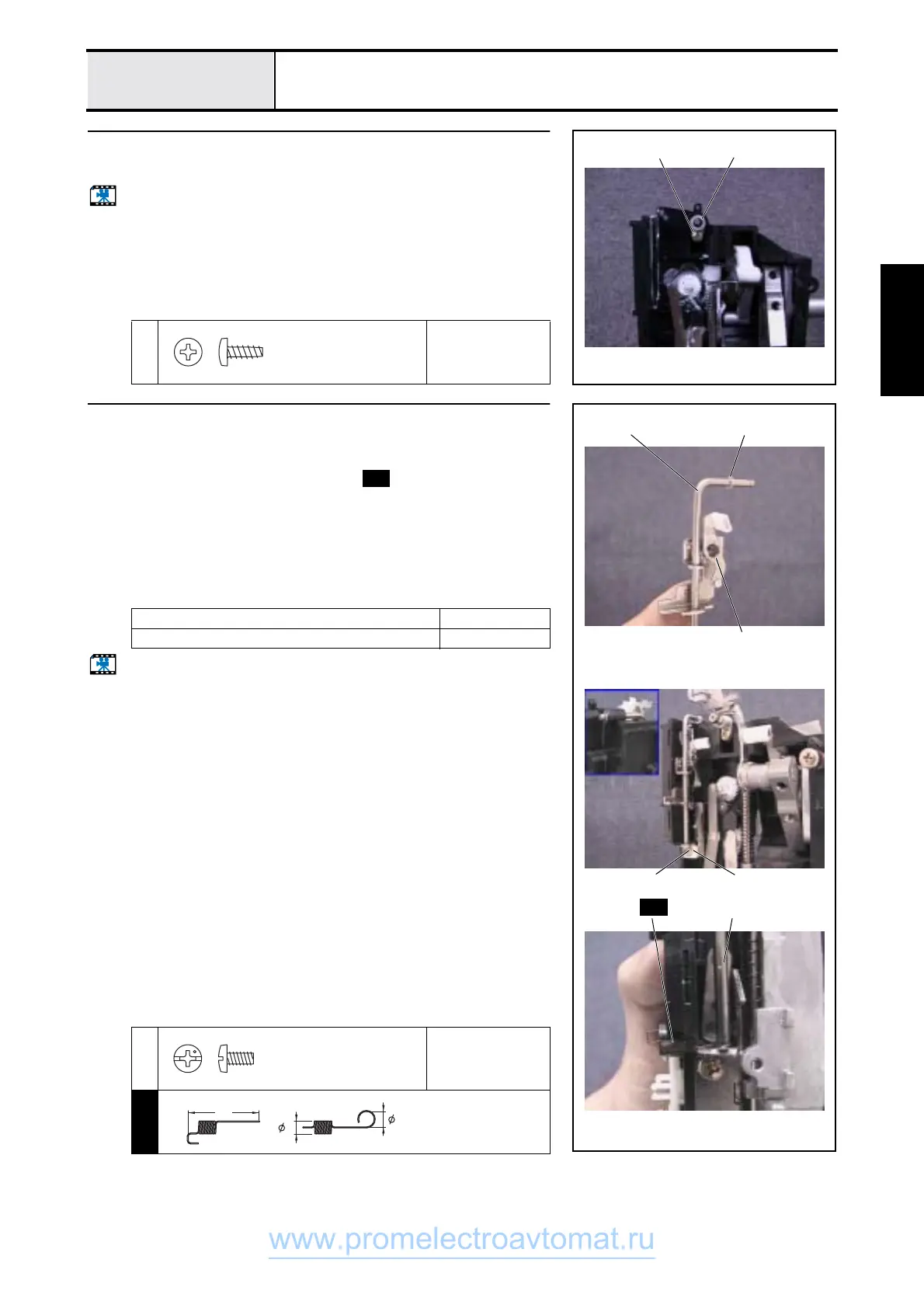

Needle-presser module
Modules
Assembly
16
Shaft bushing A attachment
1. Attach shaft bushing A 1 to the upper unit holder using screw 1.
Start movie clip (CD-ROM version only)
1
Torque
0.78 – 1.18 N
−m
11
Taptite, Bind B
M3X8
Color; Gold
17
Lever AB assy. attachment
1. Attach retaining ring E2 to the lever guide shaft 1.
2. Apply a small amount of Epnoc Grease AP to the lever guide shaft.
3. Attach the Lever AB assy. 2 and spring to the lever guide shaft.
4. Apply a small amount of Molykote EM30L to the upper unit holder slide
groove.
5. Attach the lever guide shaft to the upper unit holder, and attach the lever
supporter plate 2 using screw 1.
6. Attach retaining ring E2 to the lever guide shaft.
7. Apply a small amount of Molykote EM30L to the lever AB assy.
Start movie clip (CD-ROM version only)
Epnoc Grease AP Small amount
Molykote EM30L Small amount
1
Torque
0.58 - 0.78 N
−
m
S39
1
1
Retaining ring E2
2
Retaining ring E2
2
1
S39
S39
Screw, Bind
M3X6
Color; Silver
GROUND SPRING
XC5348***
16
3
3.5
