Needle-presser module
Modules
Assembly
20
Shaft assy. attachment

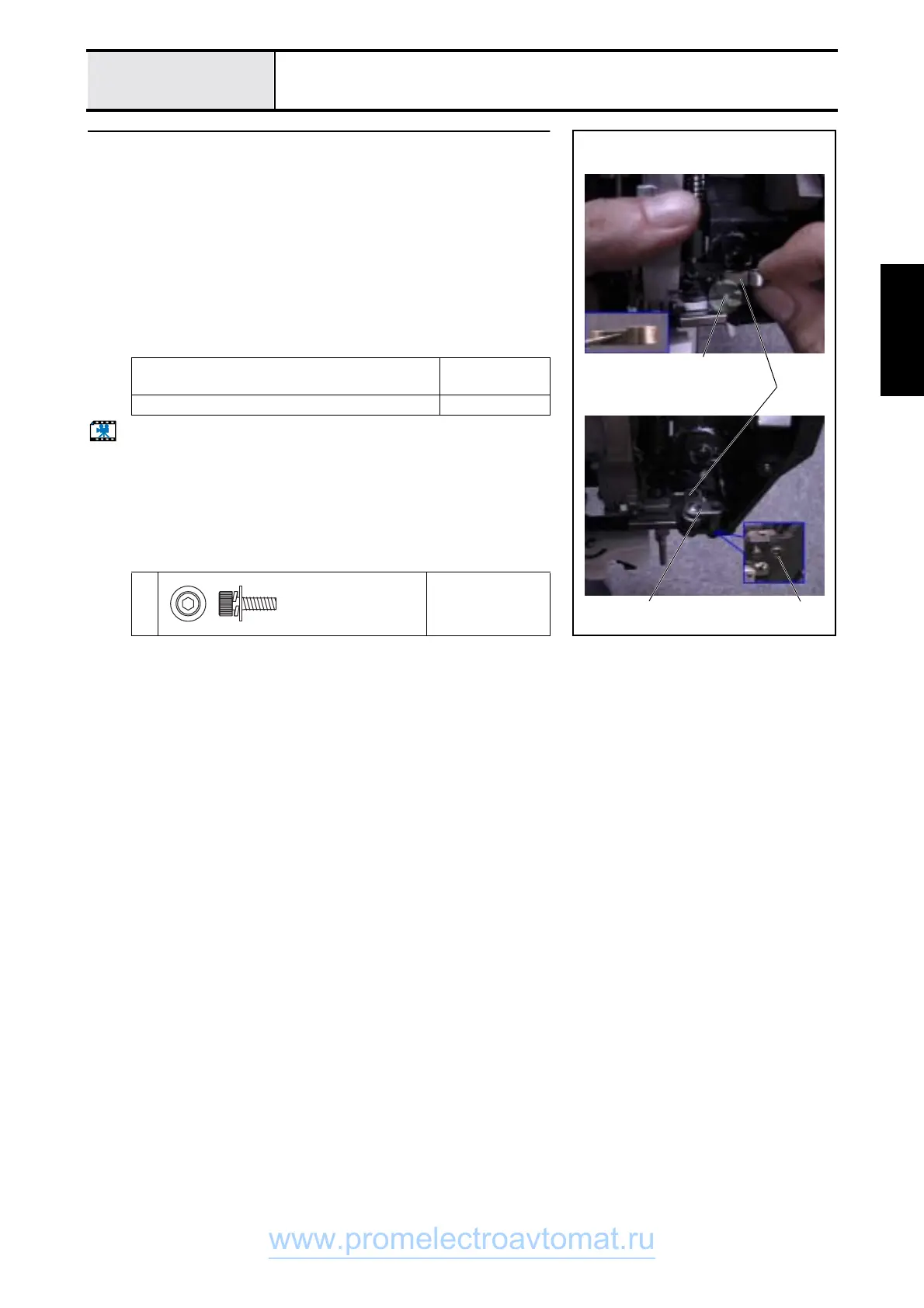

1. Apply a small amount of Epnoc Grease AP to the needle bar supporter
assy. needle roller 1.
2. Attach the needle holder block 2 to the needle bar supporter assy. needle
roller 1.
*Key point
• The flat surface of the needle holder block is the bottom.
3. Apply a small amount of Epnoc Grease AP to the shaft assy. 3 shaft.
4. Attach the shaft assy. 3 to the needle holder block 2 and upper unit
holder, and hand start screw 1.
(Fully tighten after 4 - 10"Needle interference left/right adjustment.")
Start movie clip (CD-ROM version only)
Apply Epnoc Grease AP to the upper unit holder
needle roller
Small amount
Apply Epnoc Grease AP to the shaft assy. shaft. Small amount
1
Torque
Hand start
1
2
3 1
Screw
3X10
Color; Black
