Brother CS8000 Series User Manual

3 - 73
Feed module
Modules
Assembly
15

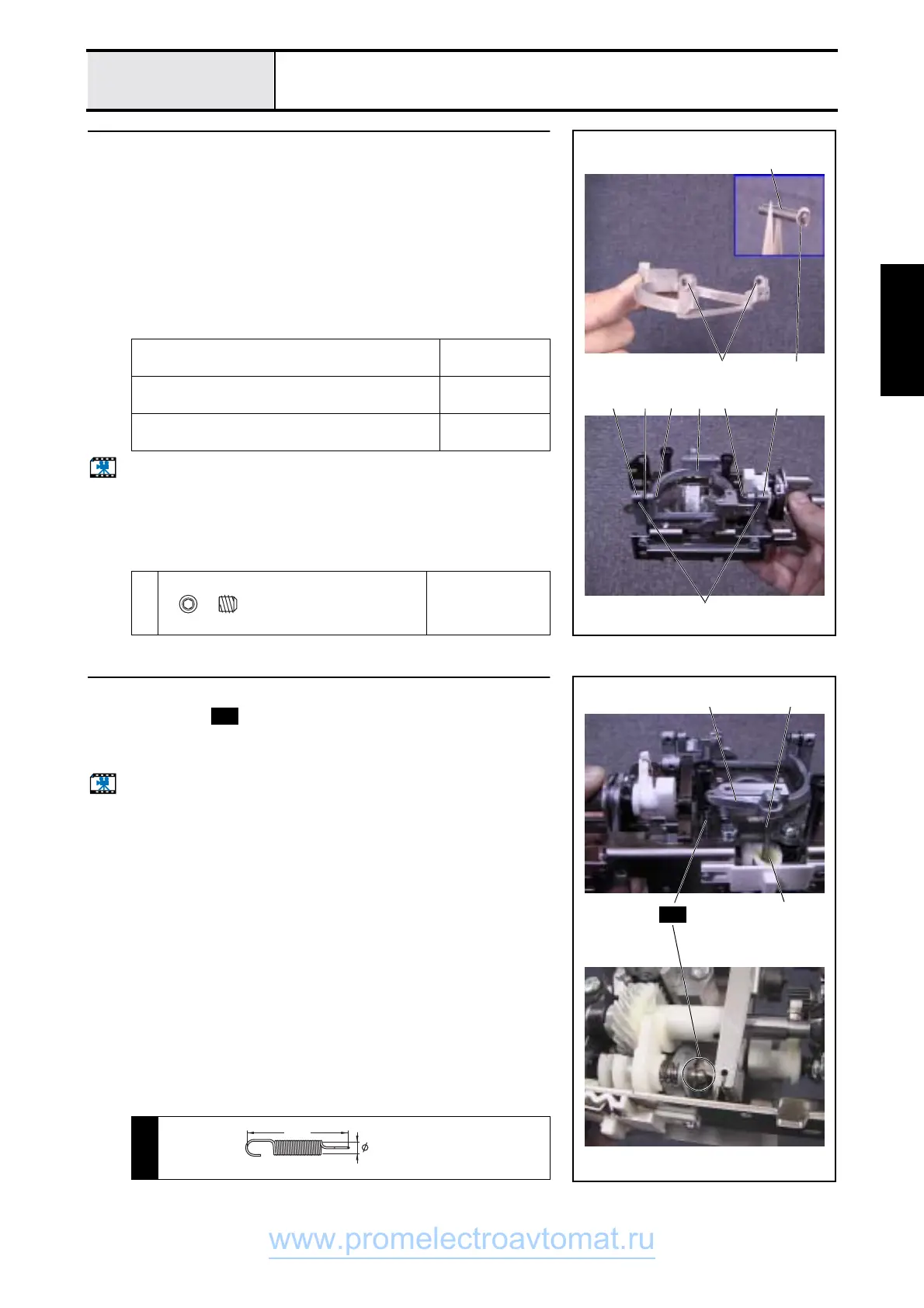

Feed bar attachment
1. Apply a small amount Molykote EM30L to the shaft holes 1 (two) in the
feed bar.
2. Attach retaining ring E2 to feed bar shaft B 2.
3. Attach the feed bar 3, feed bar shaft A 4, feed bar shaft B 5 and feed bar
spacer 6 to feed arm A 7 using screws 1 (two).
*Key point
• Feed bar shaft A 4 is attached from the inside of the feed bar
3.
• Move feed bar shaft B 5 to the left.
Start movie clip (CD-ROM version only)
Apply Molykote EM30L grease to feed shaft
holes in the feed bar
Small amount
Apply Molykote EM30L grease to feed bar shaft
A
Small amount
Apply Molykote EM30L grease to feed bar shaft
B
Small amount
1
Torque
1.18 – 1.57 N
−
m
34 57
1
Retaining
ring E2
2
6
1
7
Set Screw, Socket (CP
)
M4X4
Color; Black
16
Feed bar spring attachment
1. Attach spring to the feed bar 1 and vertical feed shaft 2.
*Key point
• Align the vertical rod 3 with the vertical lever seat 4.
Start movie clip (CD-ROM version only)
S17
S17
1 3
4
S17
SPRING
XC2547***
22.8
2.6
A hook form is a Left-right object.
