3 - 78
Feed module
Modules
26
Drop lever SE attachment

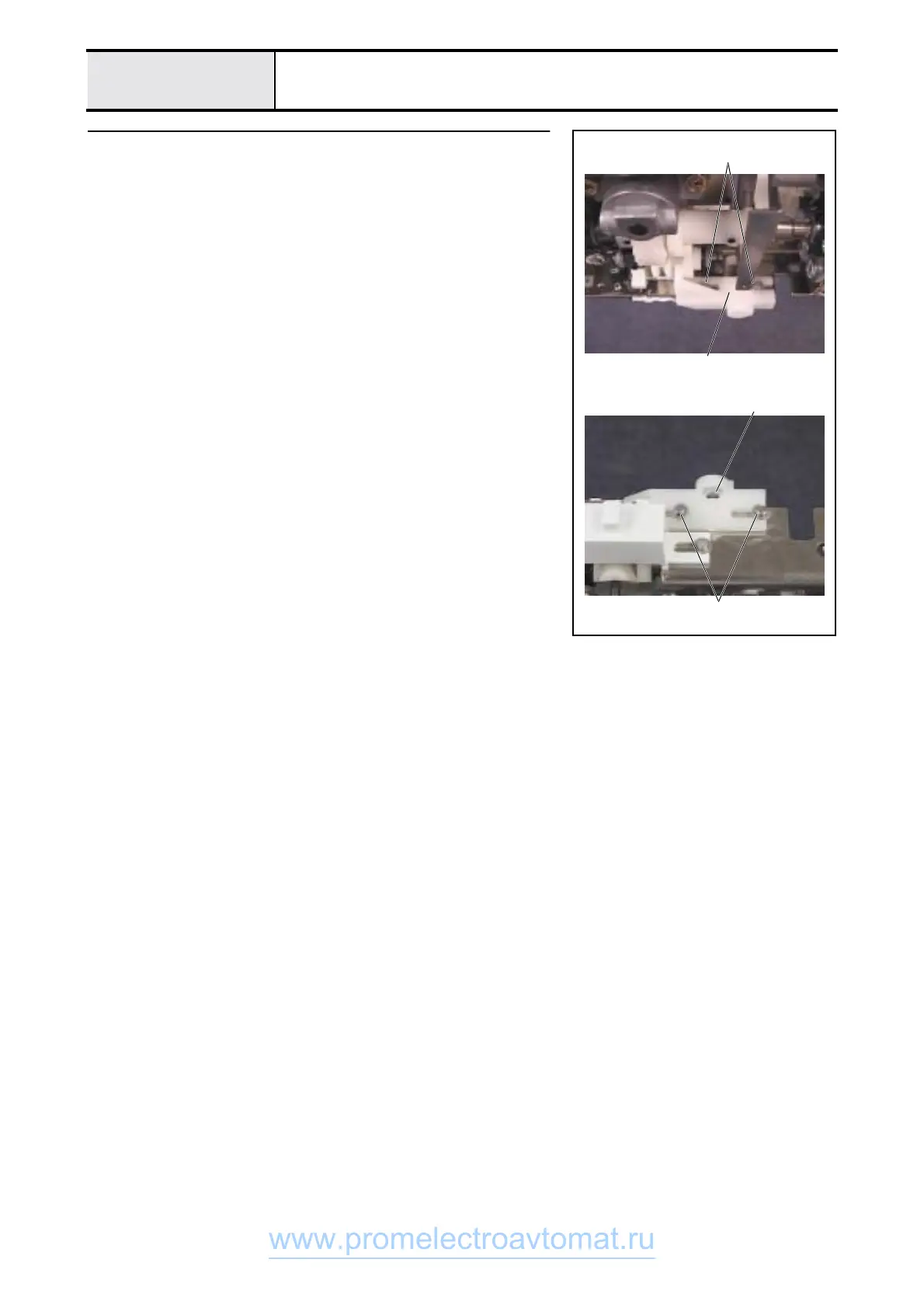

1. Attach retaining rings E2 (two) to slide shafts A (two).
2. Attach the slide shaft A assemblies (two) and the drop lever SE 1 to the
feed base, and attach retaining rings E2 (two).
2
1
Retaining ring E2
Retaining ring E2
