2 - 31
Thread tension mechanism
Main unit
Disassembly
13
Thread tension dial removal

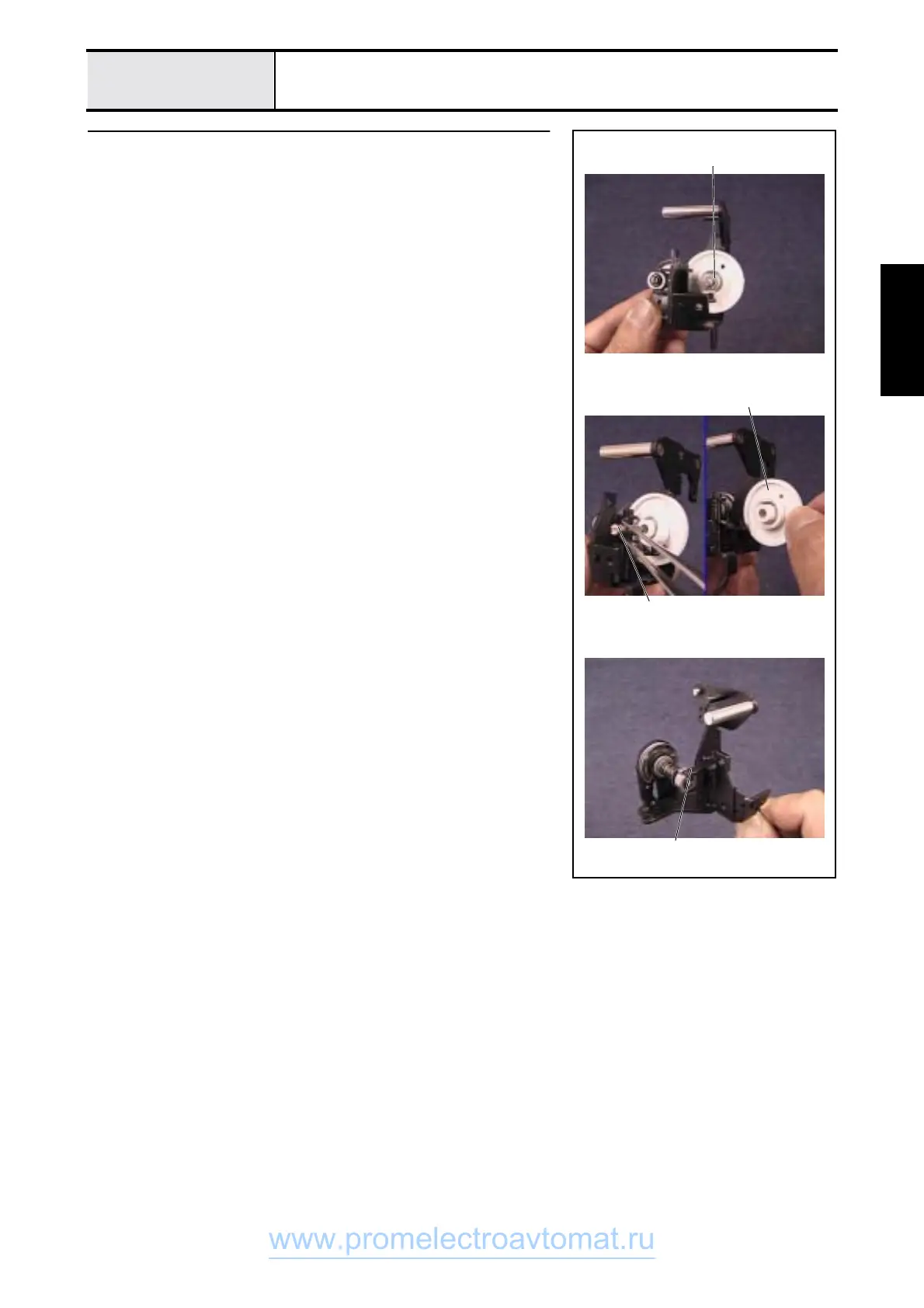

1. Remove retaining ring E3, and remove the plain S4 washer, polyester
slider and spring washer.
2. Remove the thread tension dial shaft 1, and remove the thread tension dial
2.
3. Detach the link arm assy. 3.
2
1
Retaining ring E3
3
