Brother CS8000 Series User Manual

2 - 42
Needle-presser module
Modules
18

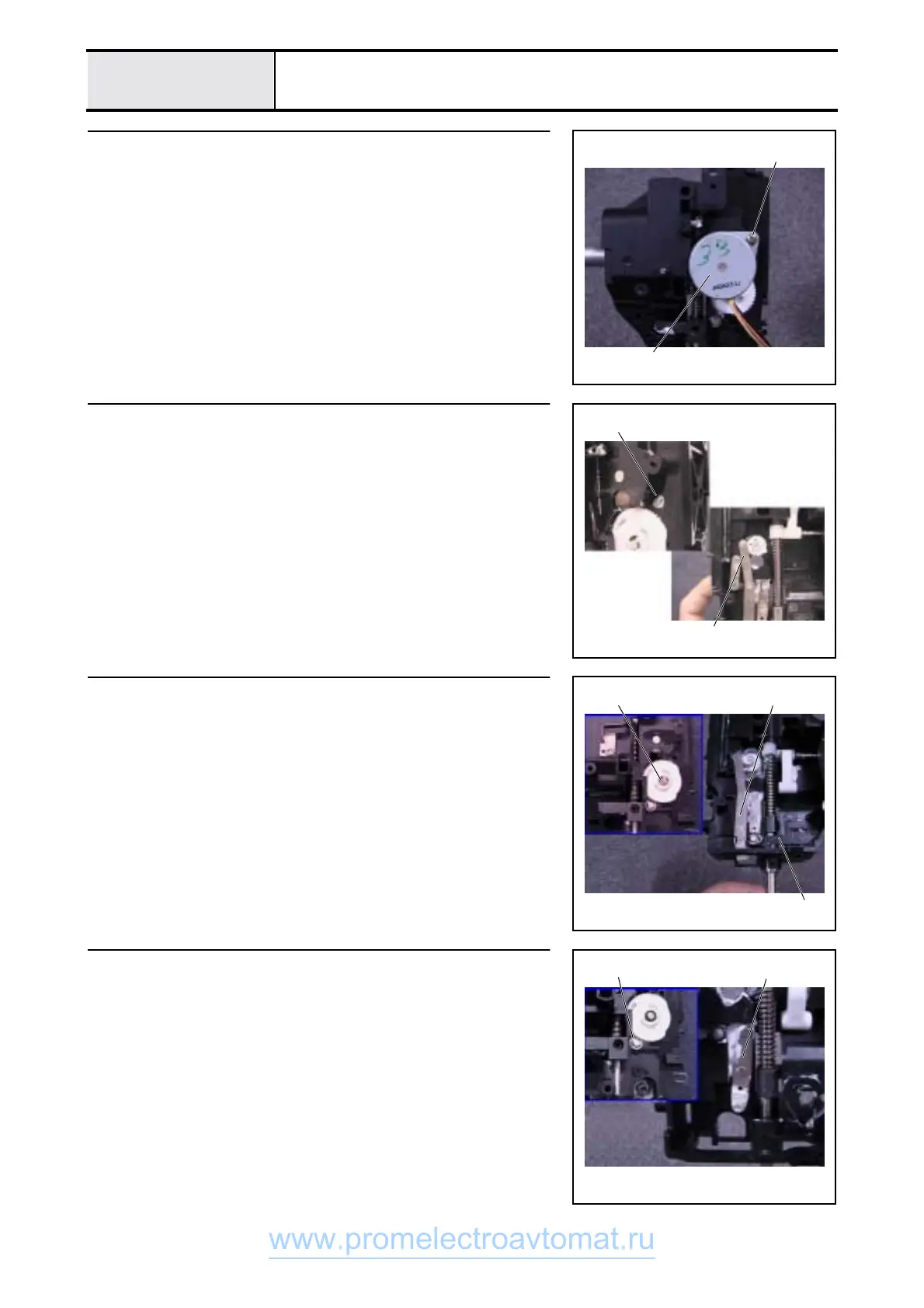

Z pulse motor removal
1. Remove screw 1, and remove the Z pulse motor (ZPMSMJ35-4840-A)
1.
1
1
19
Lever release plate assy. removal
1. Remove retaining ring E3, and remove the lever release plate assy. 1.
1
Retaining ring E3
20
Z zigzag lever and thread releaser assy. removal
1. Remove retaining ring E3.
2. Detach the Z zigzag lever 1 and thread releaser assy. 2.
3. Remove the Z lever cup from the Z zigzag lever 1.
2
1
Retaining ring E3
21
Thread release lever assy. removal
1. Remove retaining ring E3.
2. Remove the thread release lever assy. 1 and the polyester slider.
1
Retaining ring E3
