2 - 44
Needle-presser module
Modules
24

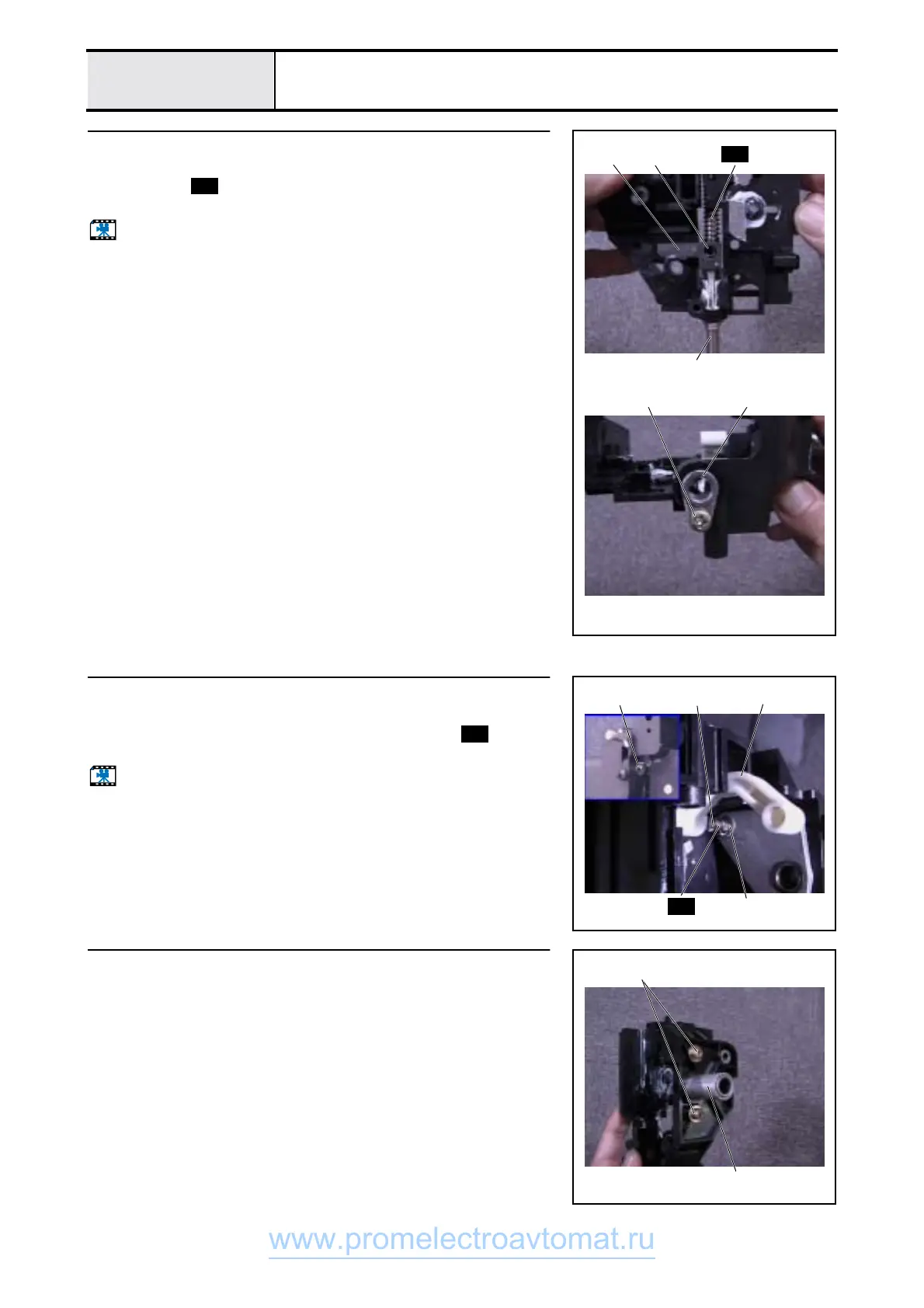

Presser bar removal
1. Remove screw 1, and remove the presser bar 1, presser bar clamp assy.
2, spring and presser spring supporter.
2. Remove screw 2, and remove the plate spring and presser bar bushing 3.
Start movie clip (CD-ROM version only)
2
3
1
S07
2
1
S07
25
Thread take-up lever link removal
1. Remove screw 1.
2. Remove retaining ring E4, and remove the shaft 1, spring and thread
take-up lever link 2.
Start movie clip (CD-ROM version only)
2
Retaining ring E4
1
S06
1
S06
26
Shaft bushing assembly removal
1. Remove screws 1 (two), and remove the shaft bushing assembly 1.
1
1
