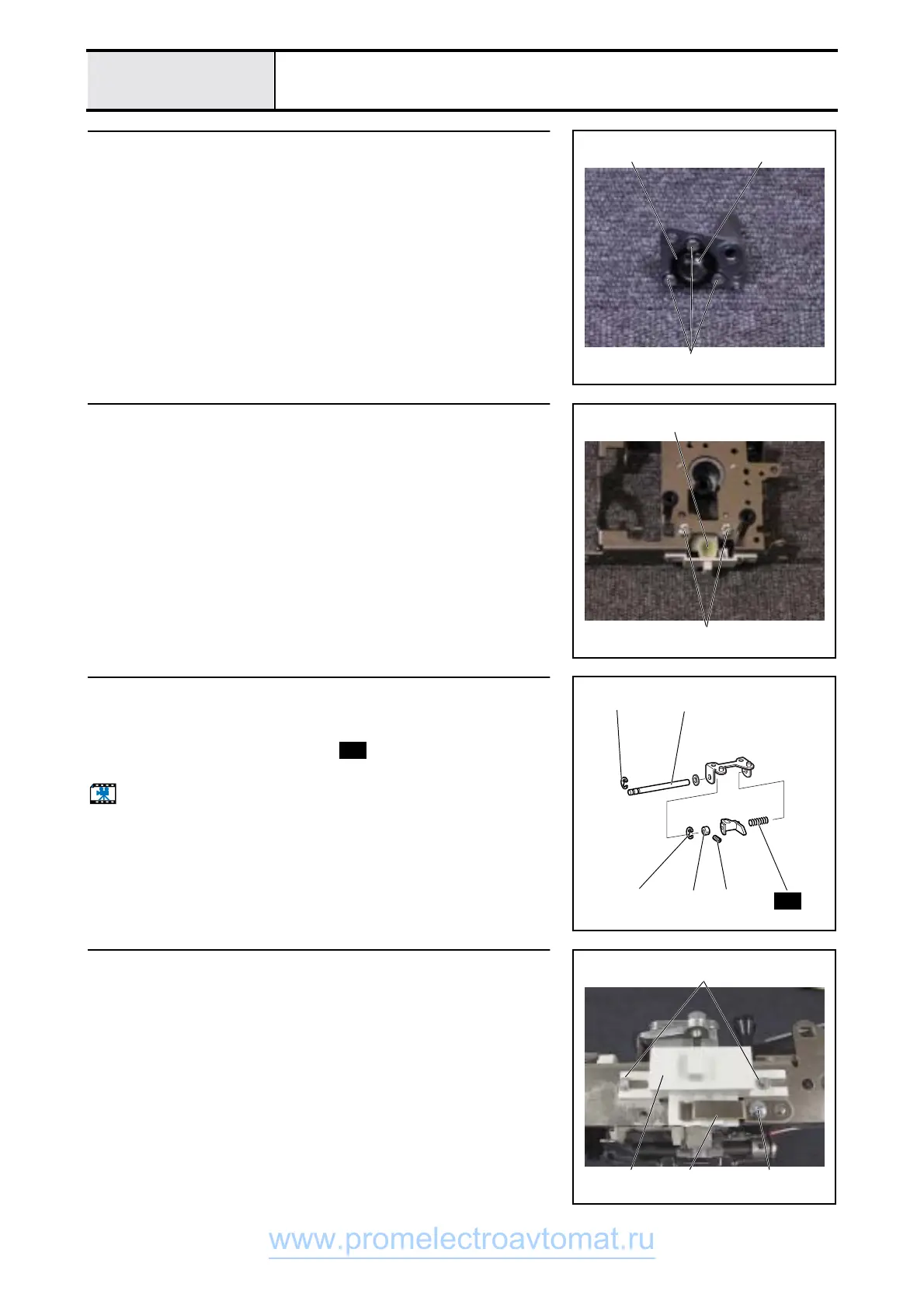

2 - 52
Feed module
Modules
21
Bushing presser B removal
1. Remove screws 1 (three), and remove bushing presser B 1 and the lower
shaft bushing 2.
1
1
2
22
Drop assy. removal
1. Remove screws 1 (two), and remove the drop assy 1.
1
1
23
Drop assy. disassembly
1. Remove screw 1.
2. Remove retaining ring E3, and remove the vertical feed shaft 1, polyester
slider, set screw collar 2 and spring .
3. Remove retaining ring E3 from the vertical feed shaft 1.
Start movie clip (CD-ROM version only)
1
S18
1
Retaining ring E3
2
Retaining ring E3
S18
24
Drop knob removal
1. Remove screw 1, and remove the spring plate 1.
2. Remove retaining rings E2 (two), and remove slide shafts B (two) and the
drop knob.
3. Remove the retaining rings E2 (two) from slide shafts B (two).
1
Retaining ring E 2
1
2
