2 - 51
Feed module
Modules
Disassembly
18

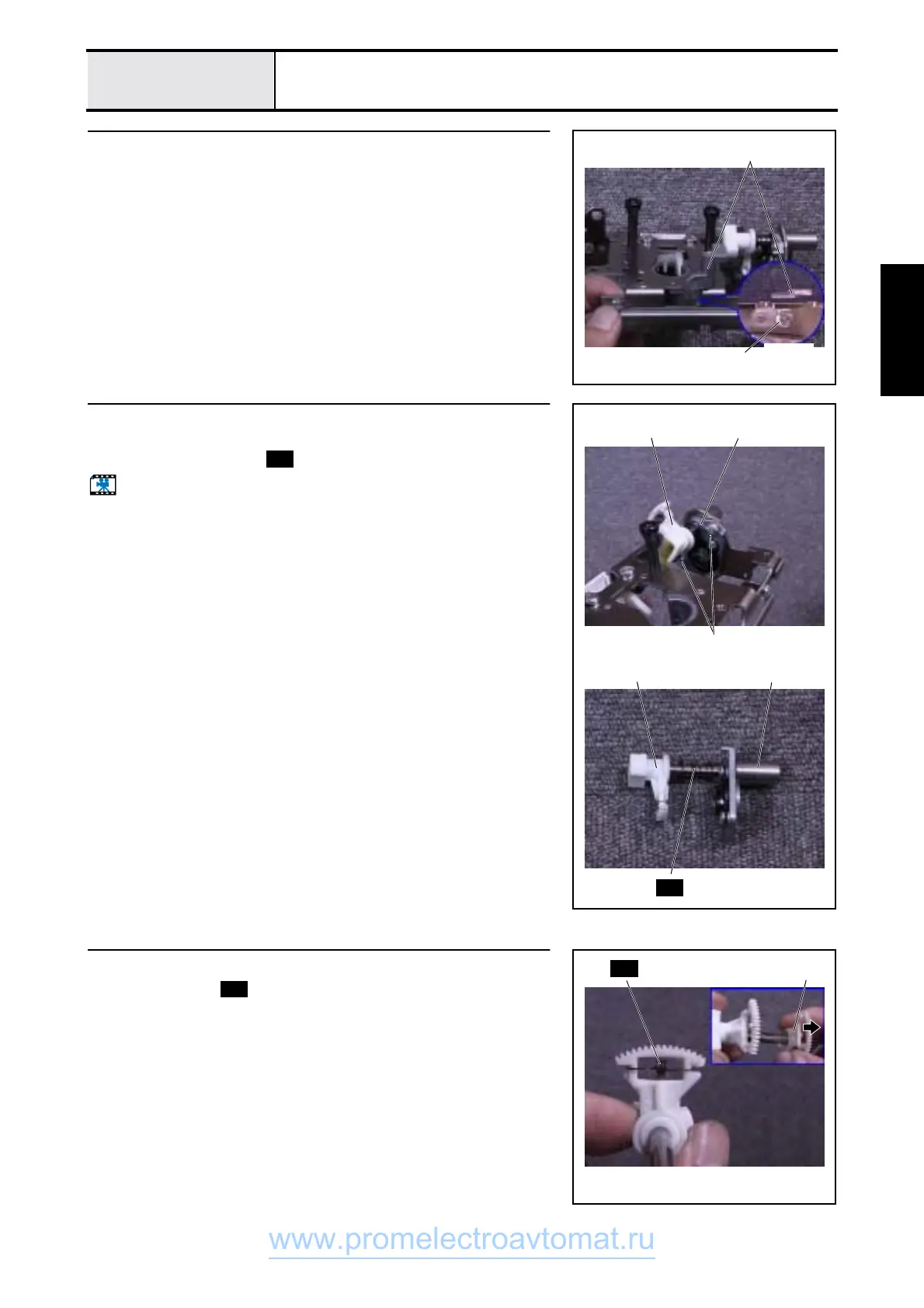

Stopper plate block assy. removal
1. Remove screw 1, and remove the stopper plate block assy 1.
1
1
*Bottom
19
Feed adjuster assy. removal
1. Remove screws 1 (two), and remove bushing supporter B 1, the feed
adjuster assy 2, spring and the polyester slider.
Start movie clip (CD-ROM version only)
2 1
1
2
S14
1
S14
20
Feed adjuster assy. disassembly
1. Remove spring and detach the F gear 1.
1
S13
S13
