2 - 50
Feed module
Modules
15

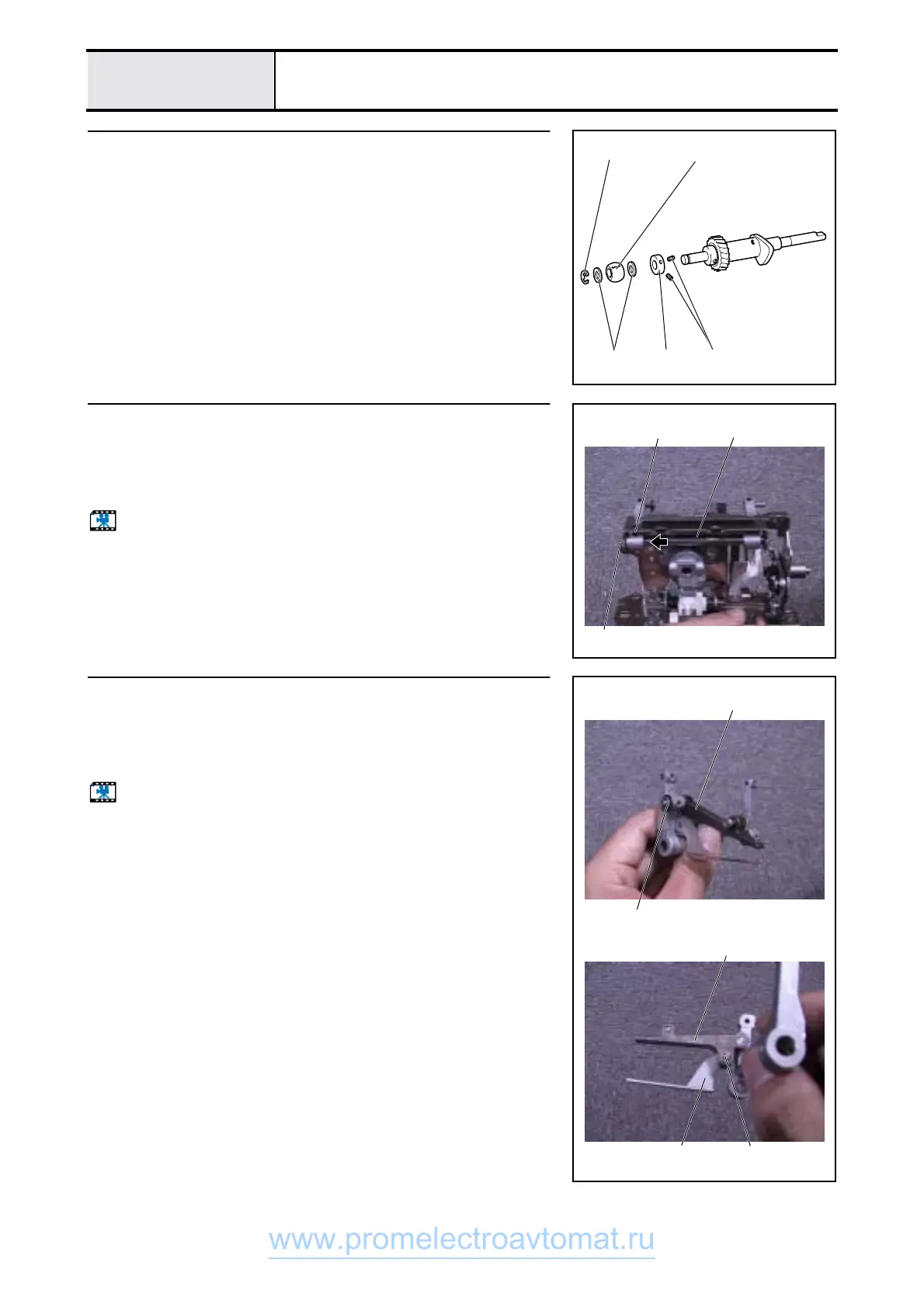

Lower shaft B assy. disassembly
1. Remove retaining ring E6, the thrust washer 1, lower shaft bushing 2
and thrust washer 1.
2. Remove screws 1 (two), and remove the set screw collar 3.
2
1
Retaining ring E6
13
16
Feed arm assy. removal
1. Remove screw 1, and remove the horizontal feed shaft 1 and polyester
slider.
2. Remove the feed arm assy.
3. Remove retaining ring E5 from the horizontal feed shaft 1.
Start movie clip (CD-ROM version only)
1 1
Retaining ring E5
*Bottom
17
Feed arm assy. disassembly
1. Remove retaining ring E3, and remove the feed arm B assy 1 and
polyester slider.
2. Remove retaining ring E2, and remove the feed supporting plate assy 2
from the feed arm B assy 1.
Start movie clip (CD-ROM version only)
1
Retaining ring E3
1
2
Retaining ring E2
