Feed module
Modules
Disassembly
13

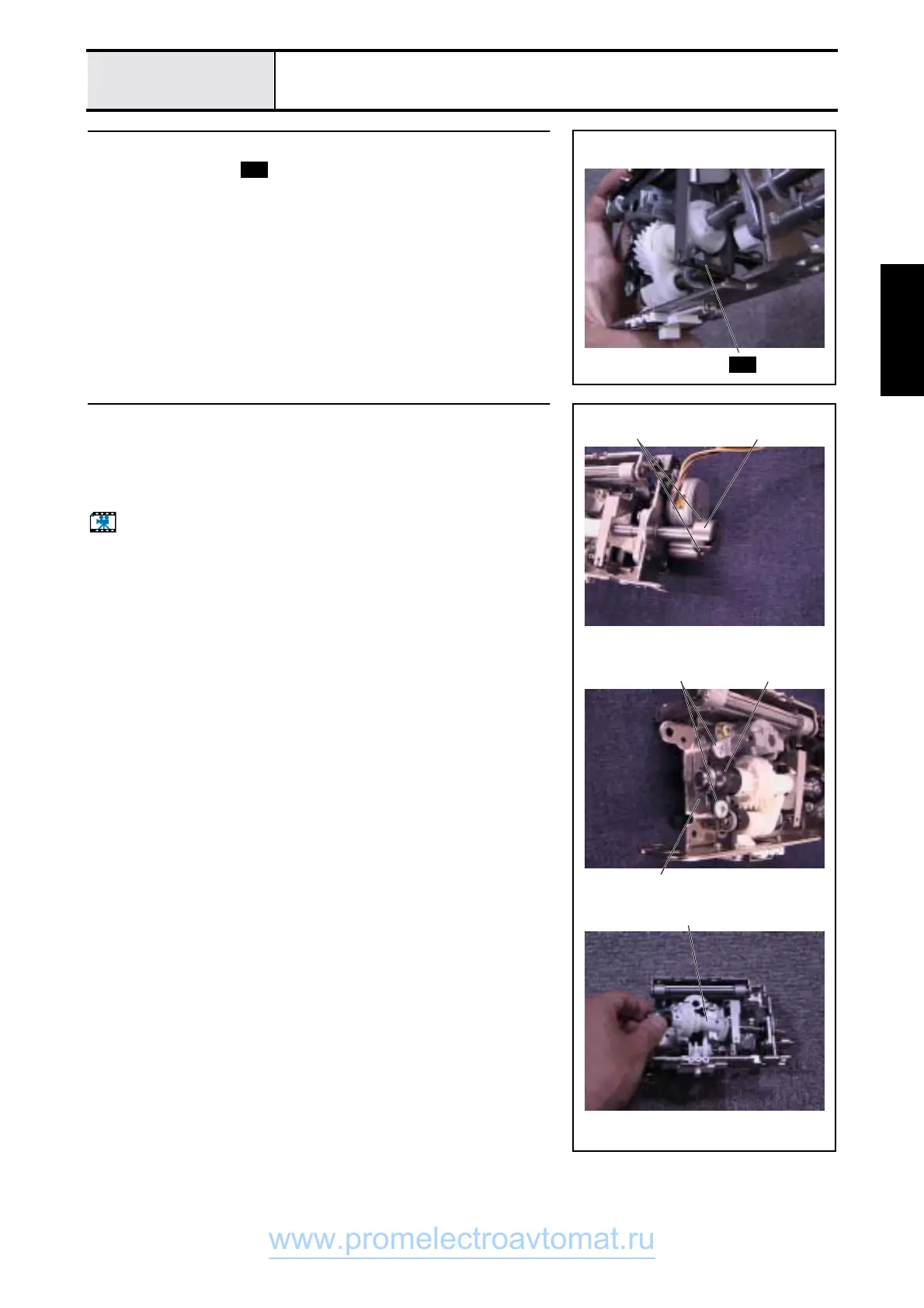

Feed supporting plate spring removal
1. Remove the spring .
S12
S12
14
Lower shaft B assy. removal
1. Remove screws 1 (two), and remove the joint 1.
2. Remove screws 2 (two), and remove shaft bushing presser A 2.
3. Remove the lower shaft B assy 3.
4. Remove bushing supporter A 4 from the feed base.
Start movie clip (CD-ROM version only)
