2 - 48
Feed module
Modules
9

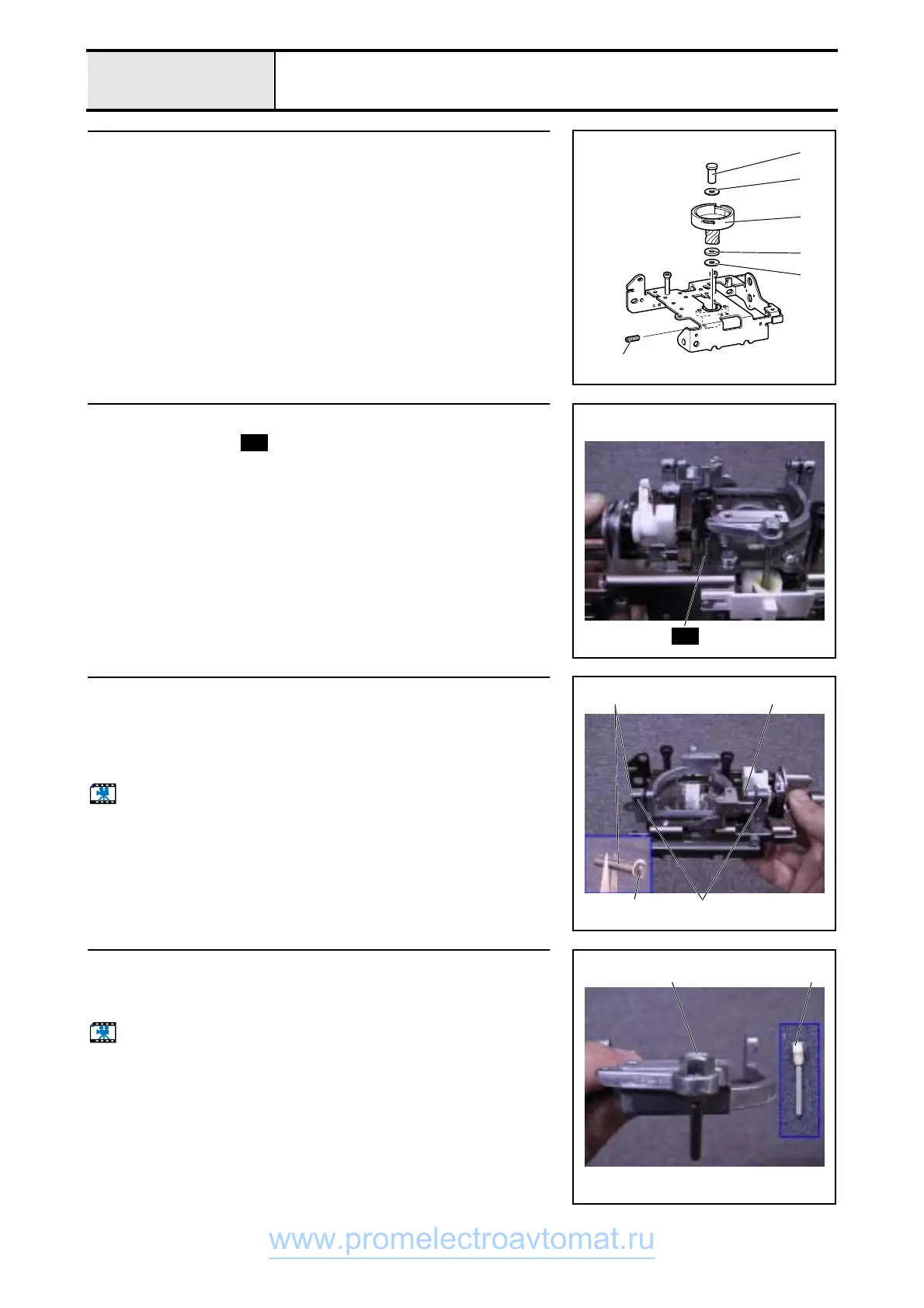

Outer rotary hook assy. removal.
1. Remove screw 1, and remove the outer rotary hook shaft 1, spacer 2,
outer rotary hook assy. 3, washer 6 4 and spacer 5.
1
1
2
3
4
5
10
Feed bar spring removal
1. Remove the spring .
S17
S17
11
Feed bar removal
1. Remove 1 (two), and remove feed bar shaft A 1, the feed bar spacer and
feed bar shaft B 2.
2. Remove the feed bar.
3. Remove retaining ring E2 from feed bar shaft B 2.
Start movie clip (CD-ROM version only)
12
1
Retaining ring E2
12
Vertical adjusting screw removal
1. Remove the vertical adjusting screw 1.
2. Remove the M5 nut 2 from the vertical adjusting screw 1.
Start movie clip (CD-ROM version only)
