3-57
Confidential

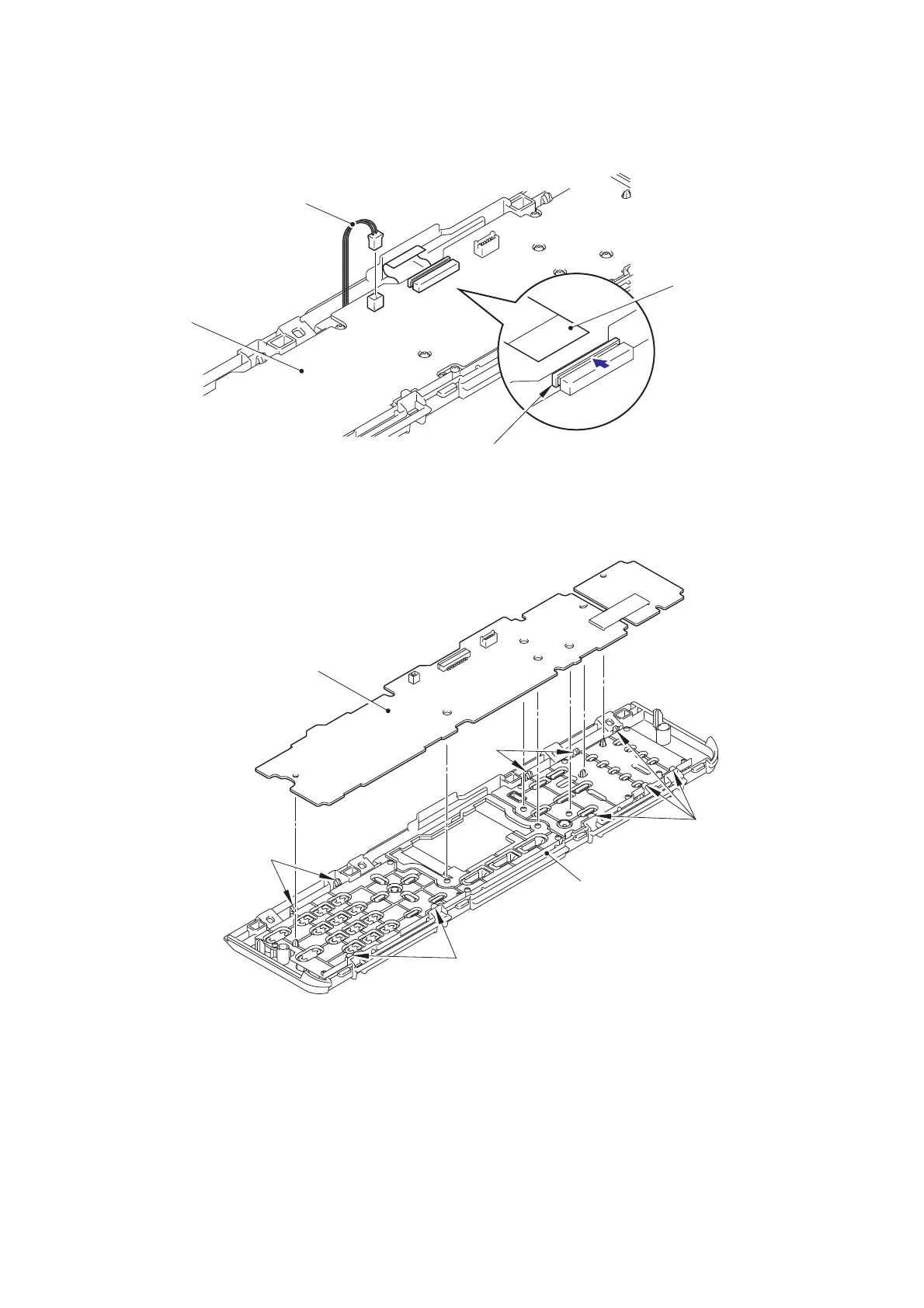

(5) Release the lock, and disconnect the LCD flat cable from the panel PCB ASSY.
(6) Disconnect the back light harness from the panel PCB ASSY.
Fig. 3-73
(7) Release the ten hooks (six for DCP models), and remove the panel PCB ASSY from the
control panel ASSY.
Fig. 3-74
LCD flat cable
Back light harness
Panel PCB ASSY
Lock
Panel PCB ASSY
Hooks
Hooks
Hooks
Control panel ASSY
Hooks
