2) Attach the four pieces of 12 mm x 12 mm double-sided tape to the document scanner
bottom cover ASSY, as shown in the illustration below for the positions.

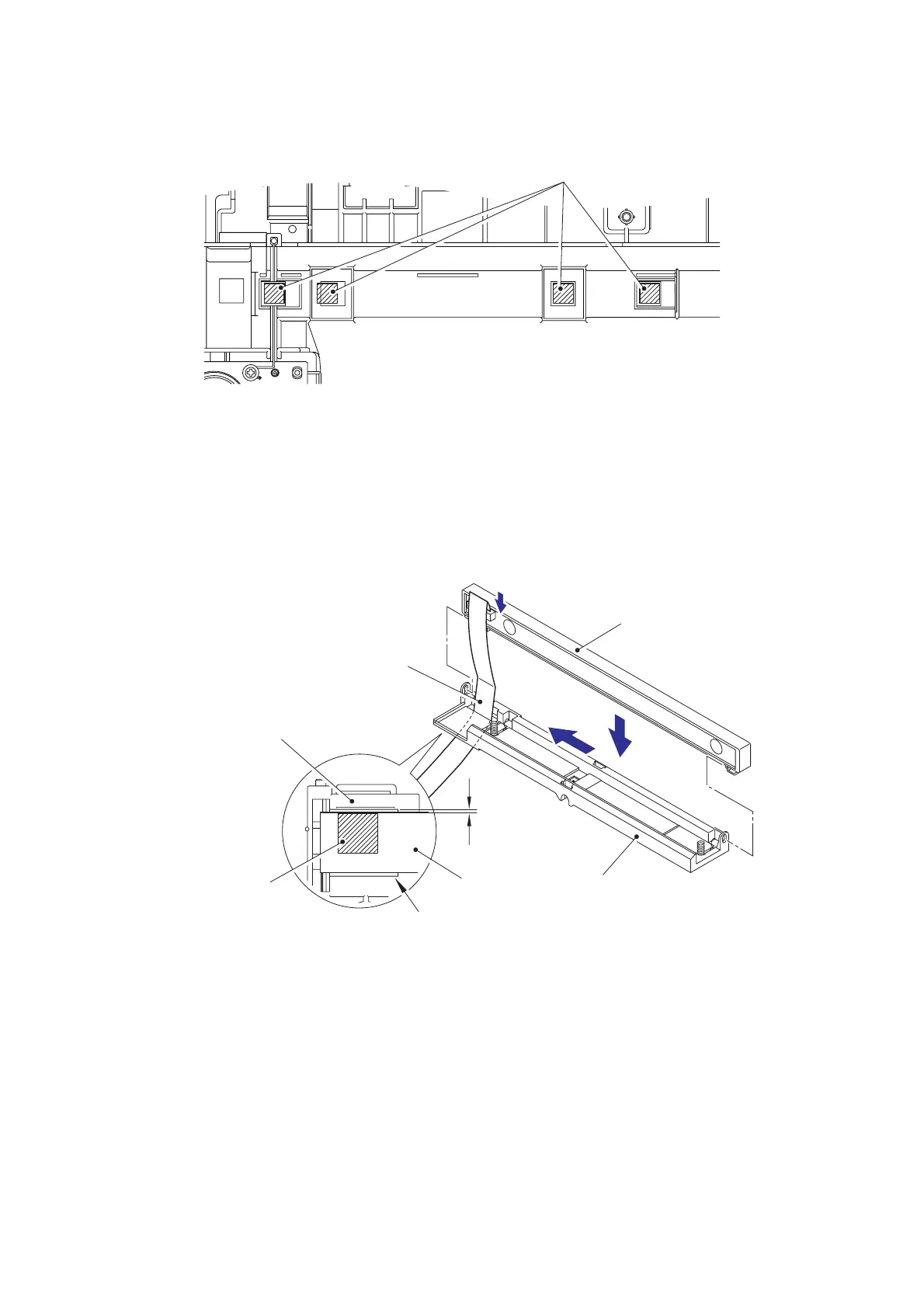

Fig. 3-89
3) Attach the 12 mm x 12 mm double-sided tape to the CIS carriage, as shown in the
illustration below for the position.
4) Insert the first side CIS flat cable into the first side CIS unit.
5) Attach the first side CIS unit to the CIS carriage.
6) Peel the release liner of the double-sided tape attached to the CIS carriage, and secure the
first side CIS flat cable to the tape as shown in the illustration below.
Fig. 3-90
Double-sided tapes
Document scanner bottom cover ASSY
Double-sided tape
CIS carriage
First side CIS unit
First side CIS flat cable
First side CIS
flat cable
CIS carriage
0 to 1mm
Stepped section
