Brother DCP-8157DN User Manual

3-66
Confidential

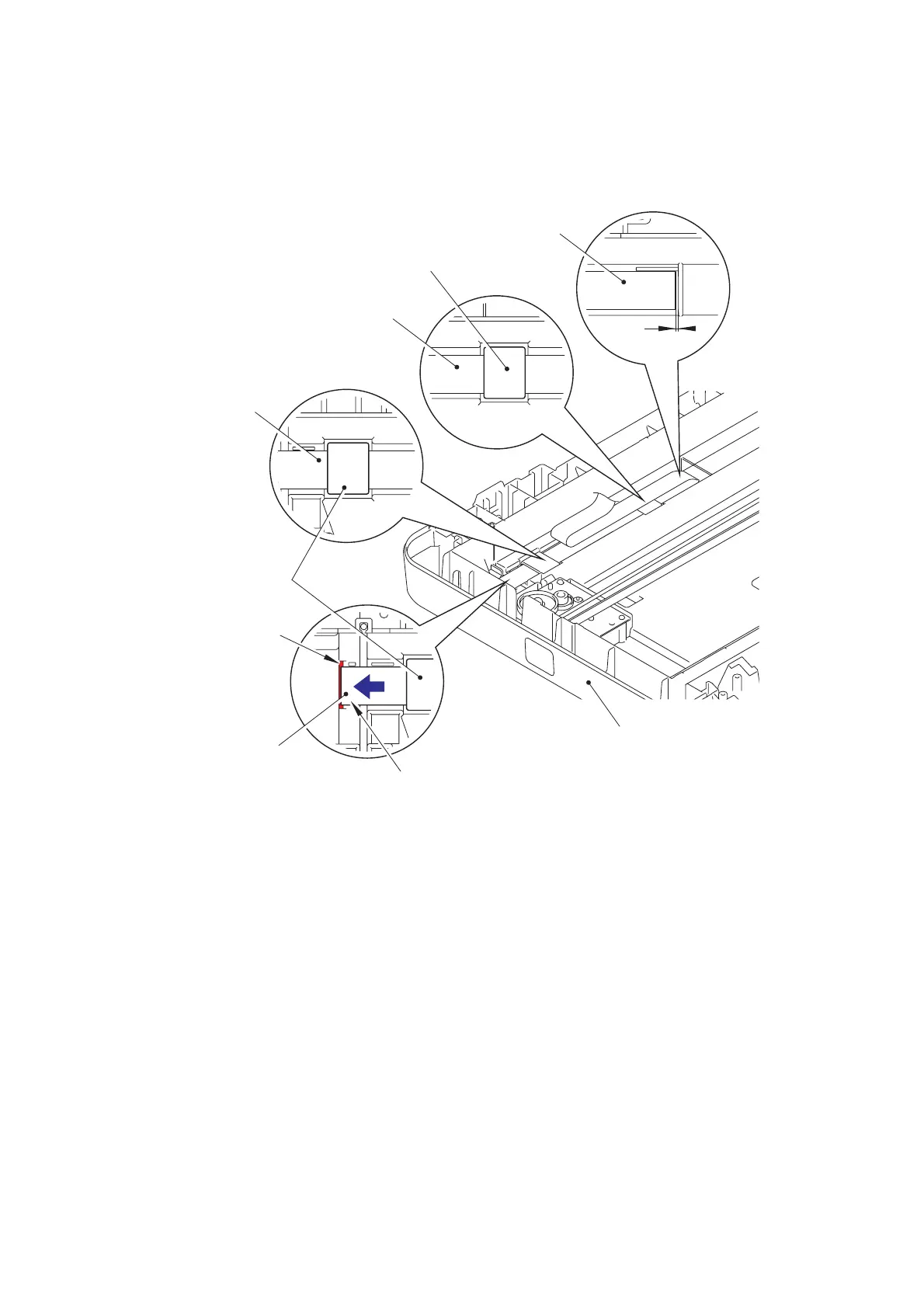

7) Pass the first side CIS flat cable through the two flat cores.
8) Peel the release liner of the four pieces of double-sided tape attached to the document
scanner bottom cover ASSY, and secure the first side CIS flat cable to the tape as shown in
the illustration below.
Fig. 3-91
First side CIS flat cable
Flat core
First side CIS flat cable
Flat core
First side CIS flat cable
1mm
Be sure to secure clearance.
First side CIS flat cable
Folded line should be 0 to 1 mm from the engraved marking.
Document scanner bottom cover ASSY

Brother DCP-8157DN Specifications

General

Print Technology	Laser
Max Resolution (B&W)	1200 x 1200 dpi
Duplex Printing	Yes
Scan Resolution	1200 x 1200 dpi
Network Ready	Yes
Functions	Copier, Printer, Scanner
Scanner Type	Flatbed, ADF
Interface	USB, Ethernet
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Operating Systems Compatibility	Windows, Mac, Linux
