3-6
Confidential

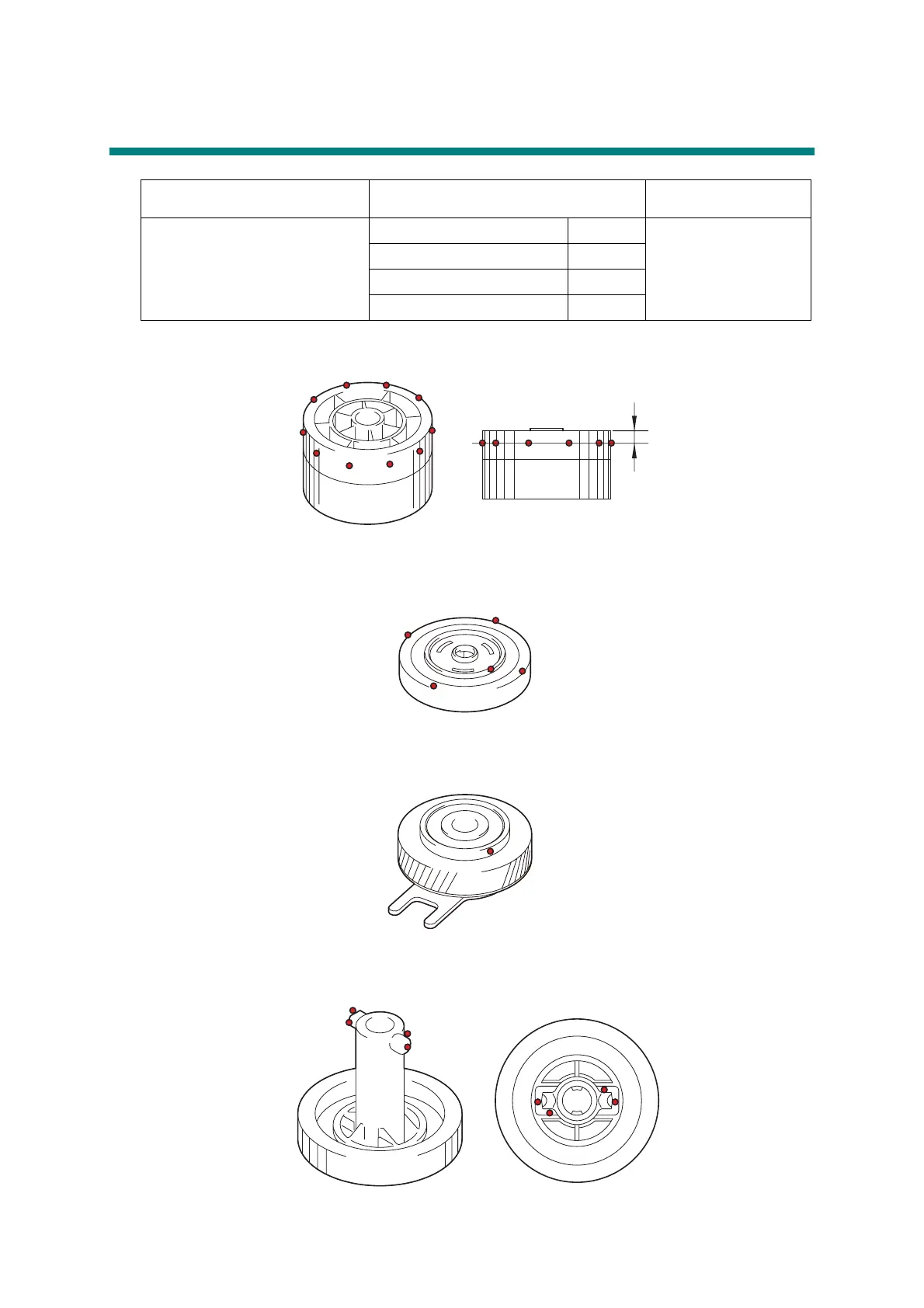

5. LUBRICATION
Fuser drive gear 39
Fig. 3-1
Develop one way clutch 53
Fig. 3-2
Develop clutch 51R
Fig. 3-3
Develop joint gear 37
Fig. 3-4
Lubricating oil type
(Maker name)
Lubrication point Quantity of lubrication
FLOIL BG-10KS (Kanto Kasei)
Fuser drive gear 39 10 places
1.5 mm dia. ball
Develop one way clutch 53 5 places
Develop clutch 51R 1 places
Develop joint gear 37 4 places
3mm
