9.36 Eject sensor PCB ASSY
(1) Release the eject sensor harness from the securing fixtures.
(2) Release the hook, and remove the eject sensor PCB ASSY from the machine.

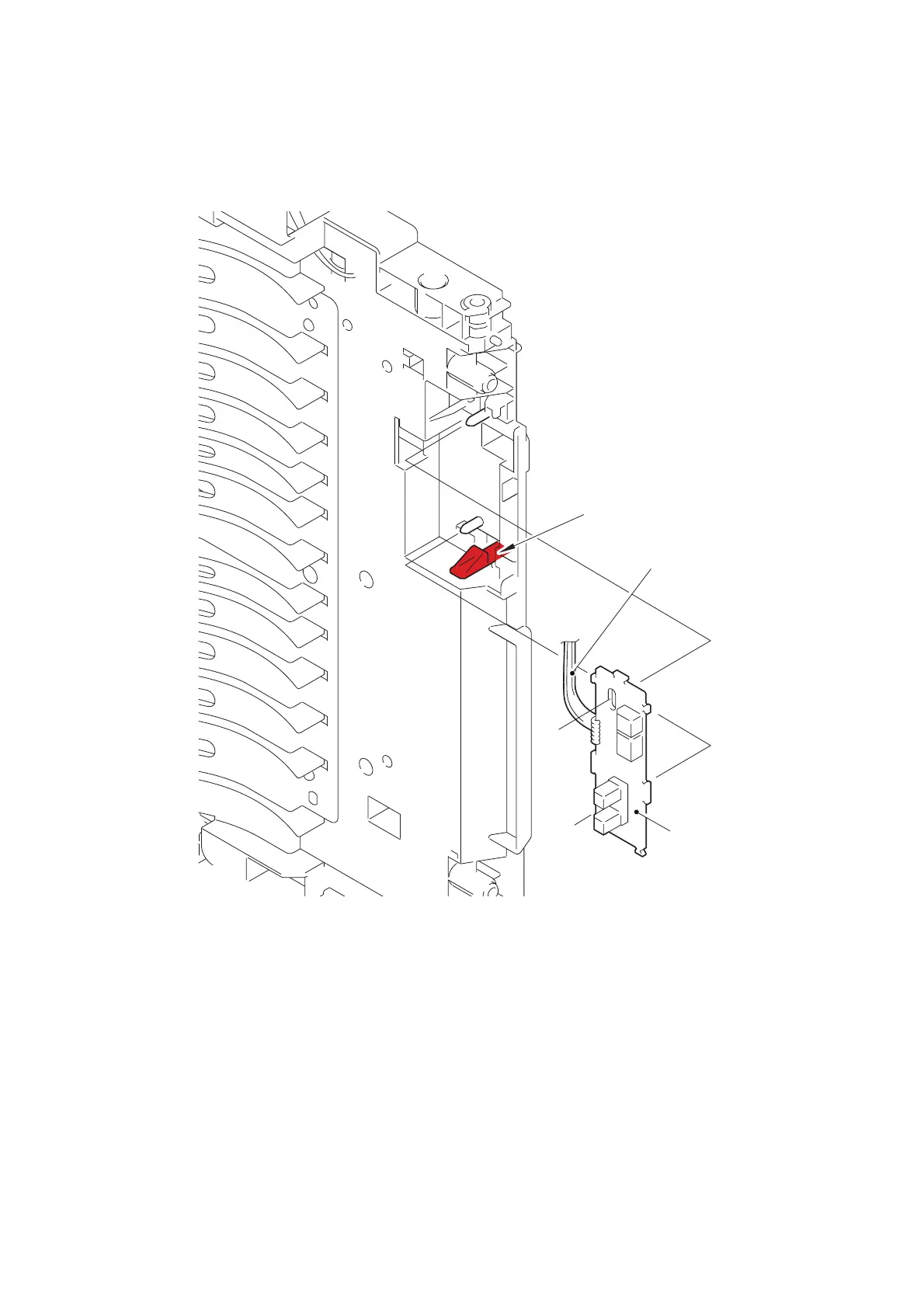

Fig. 3-67
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
Hook
Eject sensor PCB ASSY
Eject sensor harness
