Brother HL-5440D Service Manual

3-72
Confidential
(5) Turn MP paper empty actuator 2 in the direction of arrow 5a, and push the hook in the
direction of arrow 5b to slide MP paper empty actuator 1 in the direction of arrow 5c to
remove it from the MP feed frame in the direction of arrow 5d.
(6) Turn MP paper empty actuator 2 in the direction of arrow 5a, and remove it from the MP
feed frame in the direction of arrow 6.
(7) Remove the taptite bind B M3x10 screw, and remove the MP paper empty sensor PCB
ASSY from the MP feed frame.

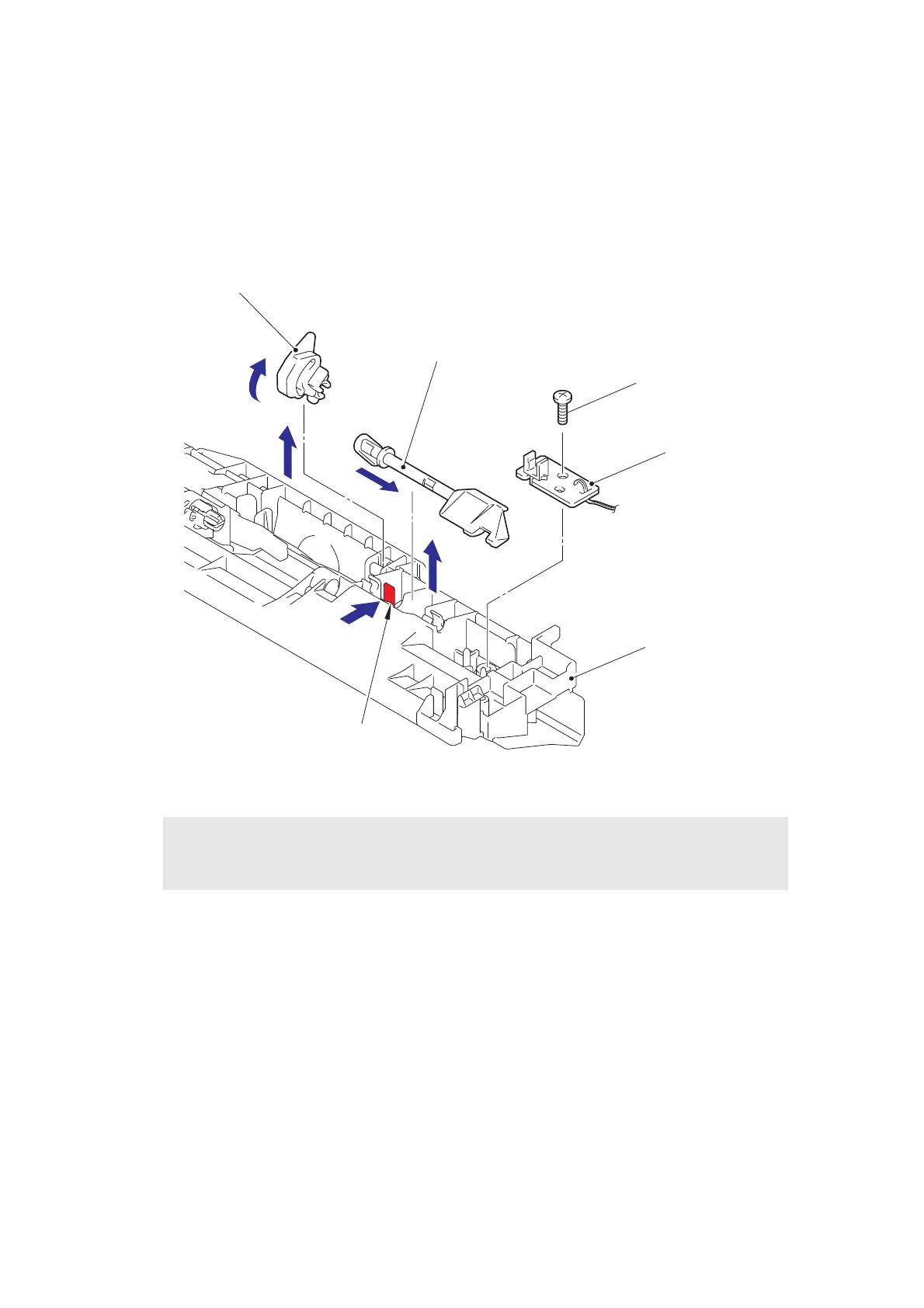

Fig. 3-73
Assembling Note:
• Insert the end of MP paper empty actuator 1 into the groove on MP paper empty
actuator 2.
Taptite bind B M3x10
MP paper empty sensor
PCB ASSY
MP feed frame
Hook
MP paper empty actuator 2
MP paper empty actuator 1
6
5c
5d
5a
5b

Brother HL-5440D Specifications

General

Color	No
N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Maximum duty cycle	- pages per month
Recommended duty cycle	500 - 3500 pages per month
Number of print cartridges	1
Processor family	Star Sapphire
Sound power level (standby)	34 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.4 W
Power consumption (standby)	4.7 W
Power consumption (printing)	665 W
Power consumption (PowerSave)	0.7 W
Package weight	11.800 g
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 245 mm
