9.7 Side cover L / Access cover
(1) Remove the taptite cup B M4x12 screw from the front side of the side cover L.
(2) Remove the taptite cup B M4x12 screw from the back side of the side cover L.
(3) Keep the two front hooks held down, and rotate the side cover L in the direction of arrow
3b while pushing it in the direction of arrow 3a. Release the remaining five hooks, and
remove the side cover L from the machine.

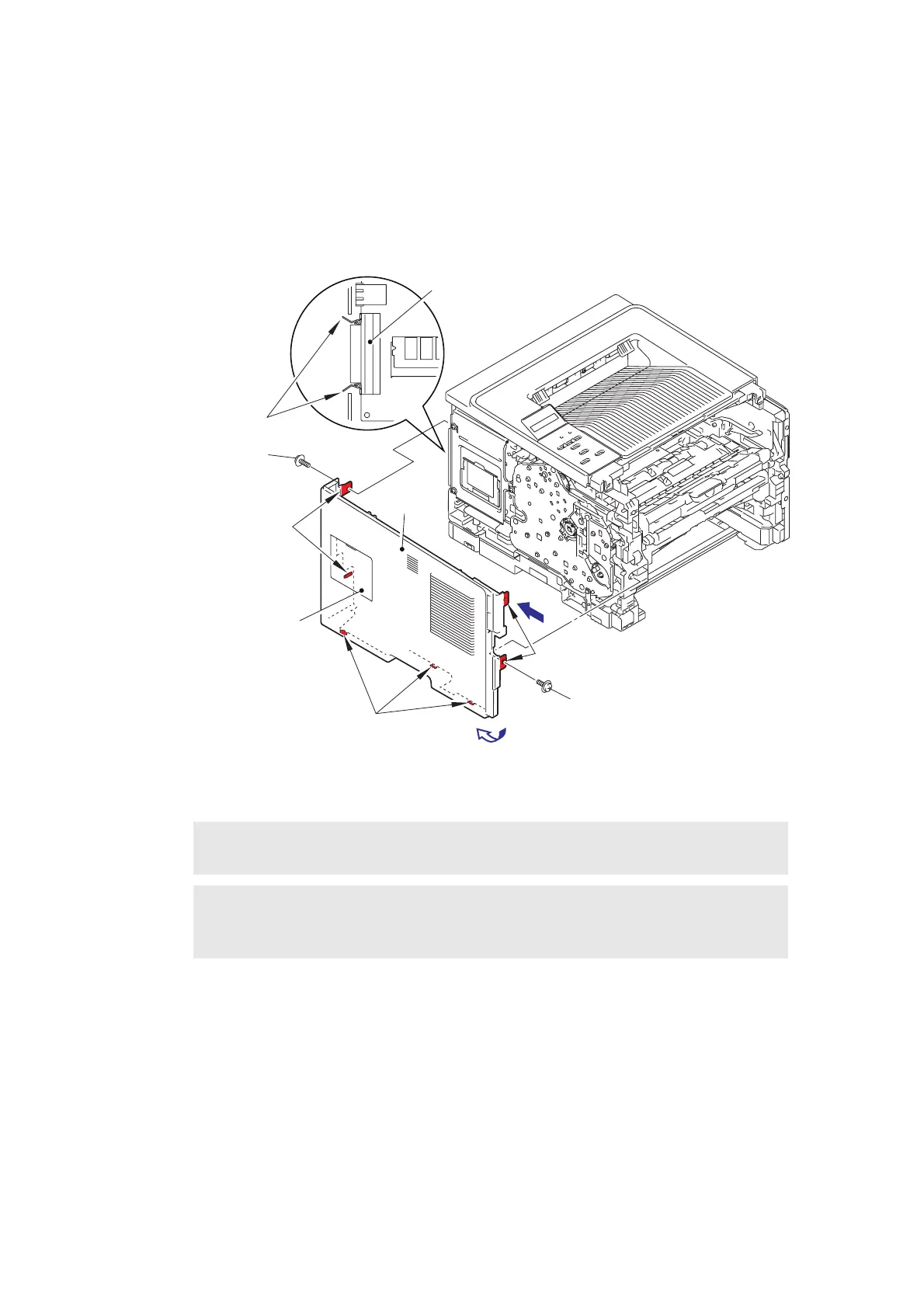

Fig. 3-20
(4) Release the hook, and remove the access cover from the side cover L.
Note:
• HL-5440D is not equipped with an access cover.
Assembling Note:
• For HL-5440D, raise the two locks for the parallel interface to the upright position,
and then attach the side cover L.
Parallel interface
Locks
Hooks
Taptite cup B M4x12
Access cover
Hooks
Taptite cup B M4x12
Side cover L
Hooks
3a
3b
