Brother HL-5440D - T2 Paper Feed Sensor PCB ASSY

3-84
Confidential
10.8 T2 paper feed sensor PCB ASSY

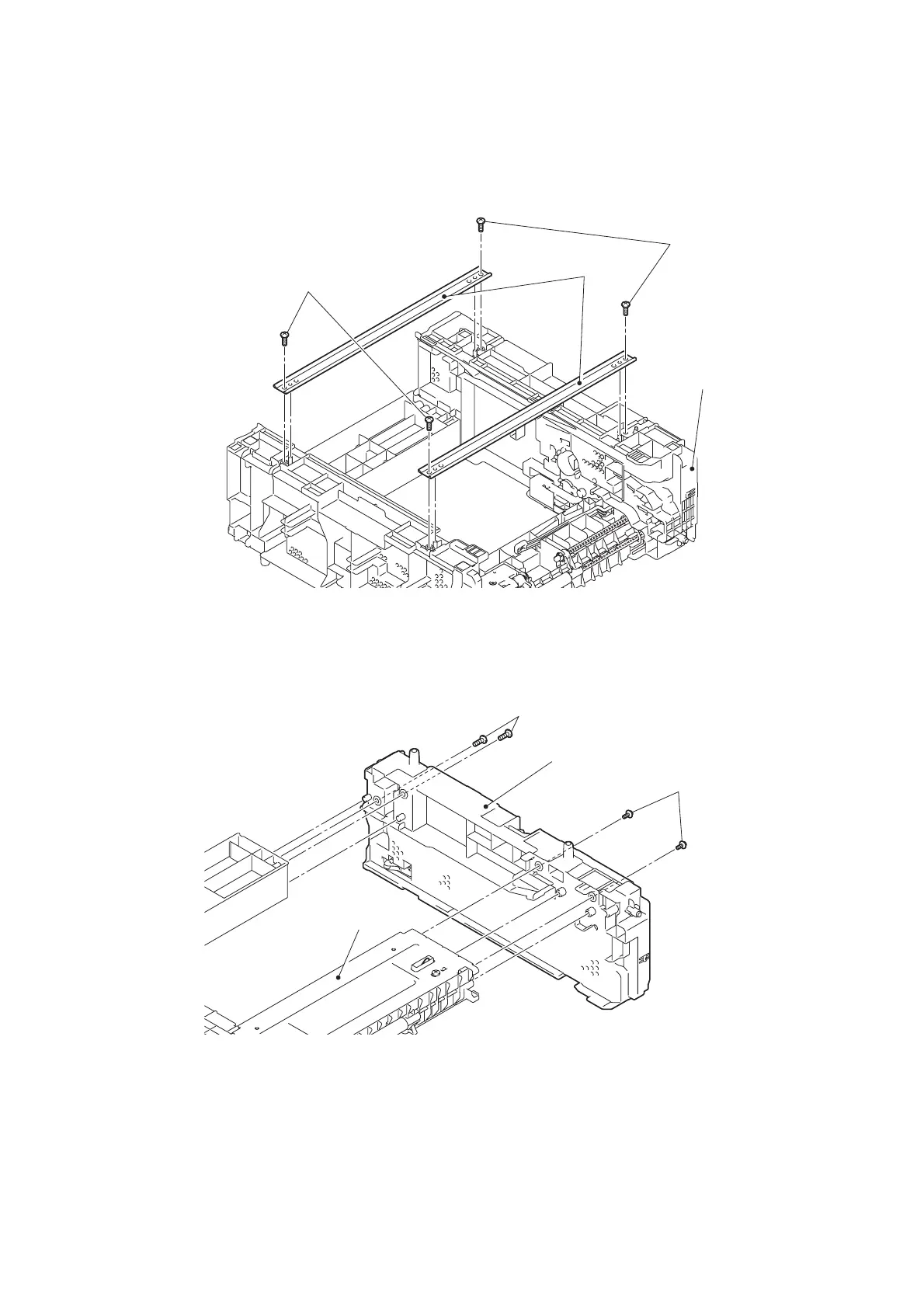

(1) Remove the four taptite bind B M4x12 screws securing the two under bars, and remove
the two under bars from the LT unit.
Fig. 3-88
(2) Remove the two taptite cup S M3x8 SR screws and the two taptite bind B M4x12
screws, and remove the T2 frame R unit from the LT unit.
Fig. 3-89
Taptite bind B M4x12
Taptite bind B M4x12
Under bars
LT unit
Taptite bind B M4x12
Taptite cup S M3x8 SR
T2 frame R unit
LT unit
