3-85
Confidential

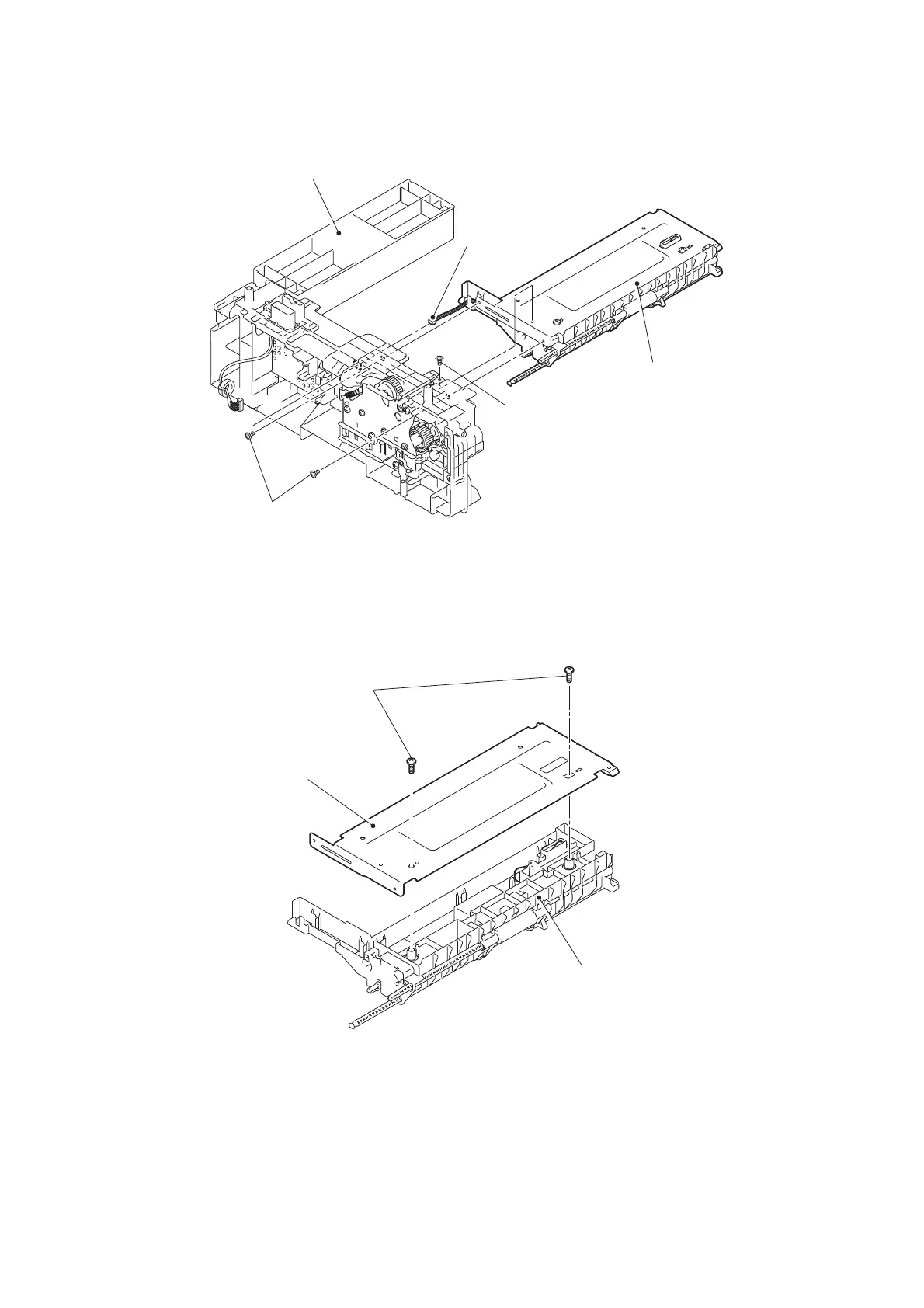

(3) Remove the three taptite cup S M3x8 SR screws, and remove the T2 paper feed frame
unit from the LT unit. Then pull out the T2 paper feed sensor harness from the LT unit.
Fig. 3-90
(4) Remove the two taptite bind B M4x12 screws, and remove the T2 front beam from the
T2 paper feed frame unit.
(5) Release the T2 paper feed sensor harness from the securing fixtures.
Fig. 3-91
T2 paper feed frame unit
Taptite cup S M3x8 SR
LT unit
T2 paper feed
sensor harness
Taptite cup S M3x8 SR
Taptite bind B M4x12
T2 paper feed frame unit
T2 front beam
