9.12 Wireless LAN PCB (Wireless Network model only)
(1) Disconnect the wireless LAN harness from the wireless LAN PCB.
(2) Release the hook to remove the wireless LAN PCB from the machine.

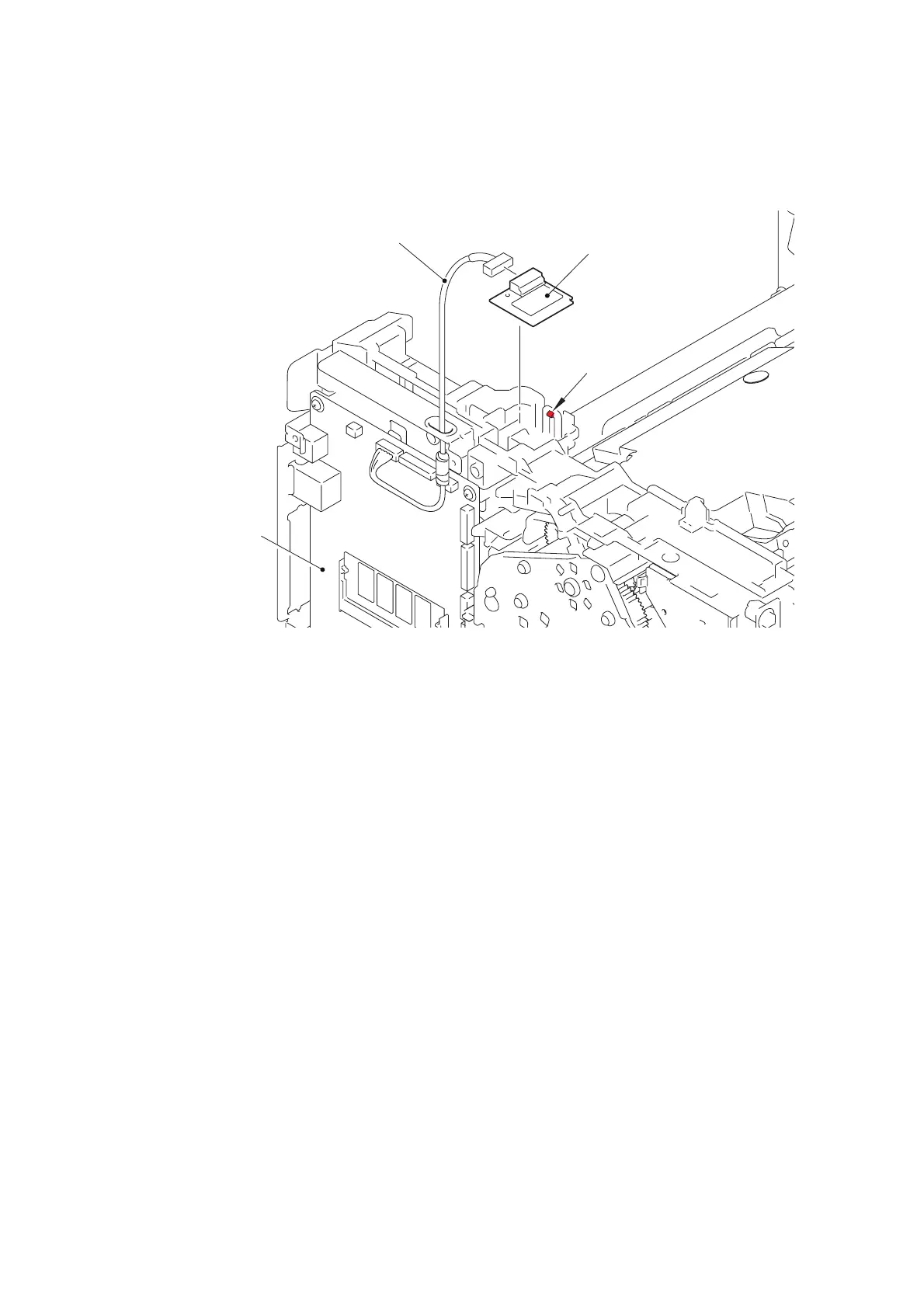

Fig. 3-28
Harness routing: Refer to “1.Main PCB ASSY”.
Wireless LAN PCB
Hook
Wireless LAN harness
Main PCB ASSY
