Brother HL-5440D - Main Components

2-9
Confidential
2.5 Main Components

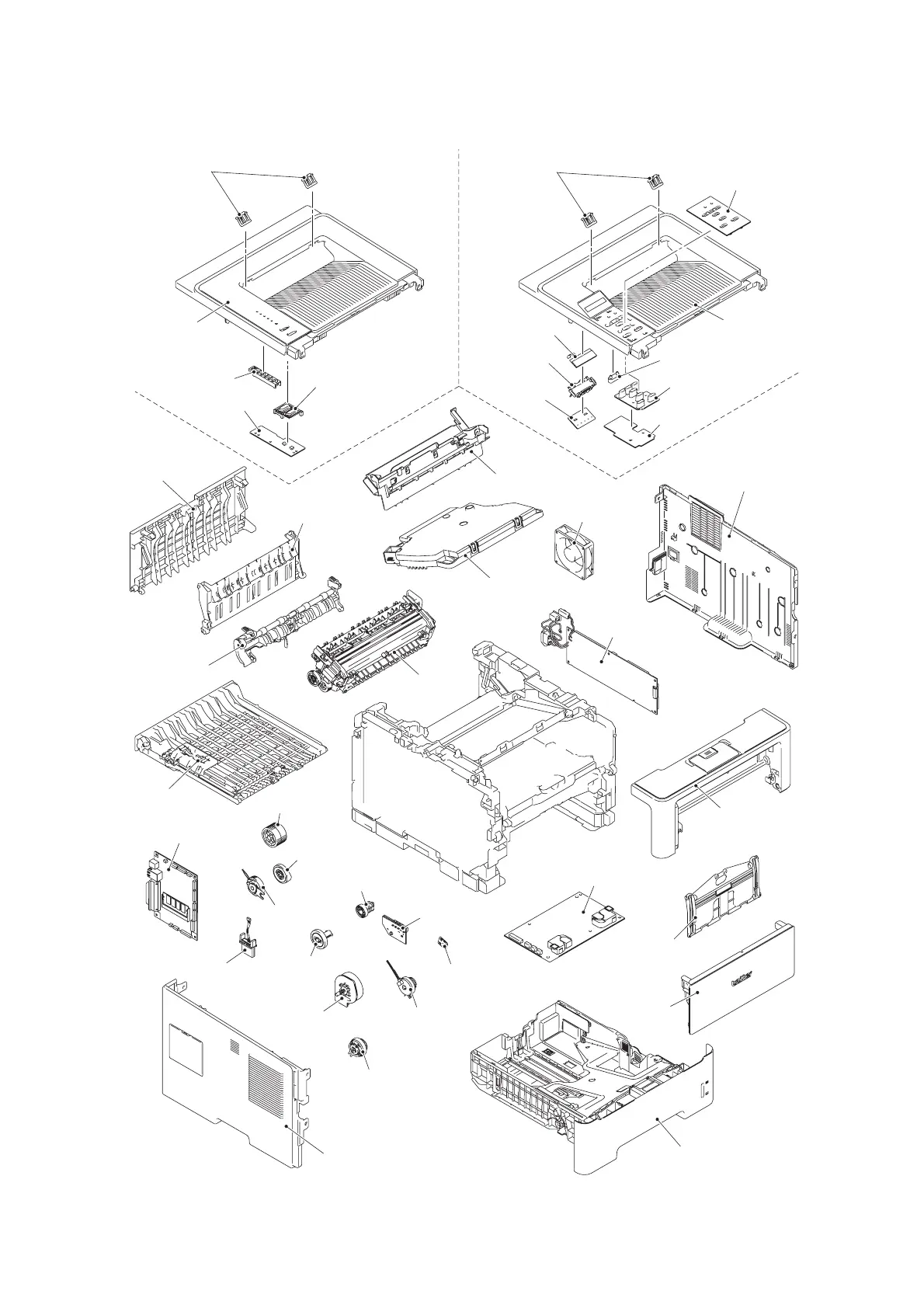

Fig. 2-4
Paper stack levers
Top cover ASSY
Panel light guide
Panel PCB ASSY
SW key printed ASSY
Back cover
Air duct
Laser unit
Main fan
Side cover R
Panel printed ASSY
Low-voltage power
supply PCB ASSY
Front cover ASSY
High-voltage power
supply PCB ASSY
Fuser unit
Fuser cover
Duplex tray
Main PCB ASSY
Fuser drive gear 39
Develop one
way clutch 53
Develop clutch 51R
Develop joint
Relay front PCB ASSY
Toner sensor PCB ASSY
T1 clutch
Registration clutch
Main motor
LT connector (T1)
Develop joint gear 37
Side cover L
Paper tray 1
MP cover
ASSY
MP paper
guide ASSY
Top cover ASSY
Rubber key printed ASSY
Panel light guide
Panel PCB
ASSY
LCD
LCD holder
Backlight
PCB ASSY
Paper stack levers
Outer chute
