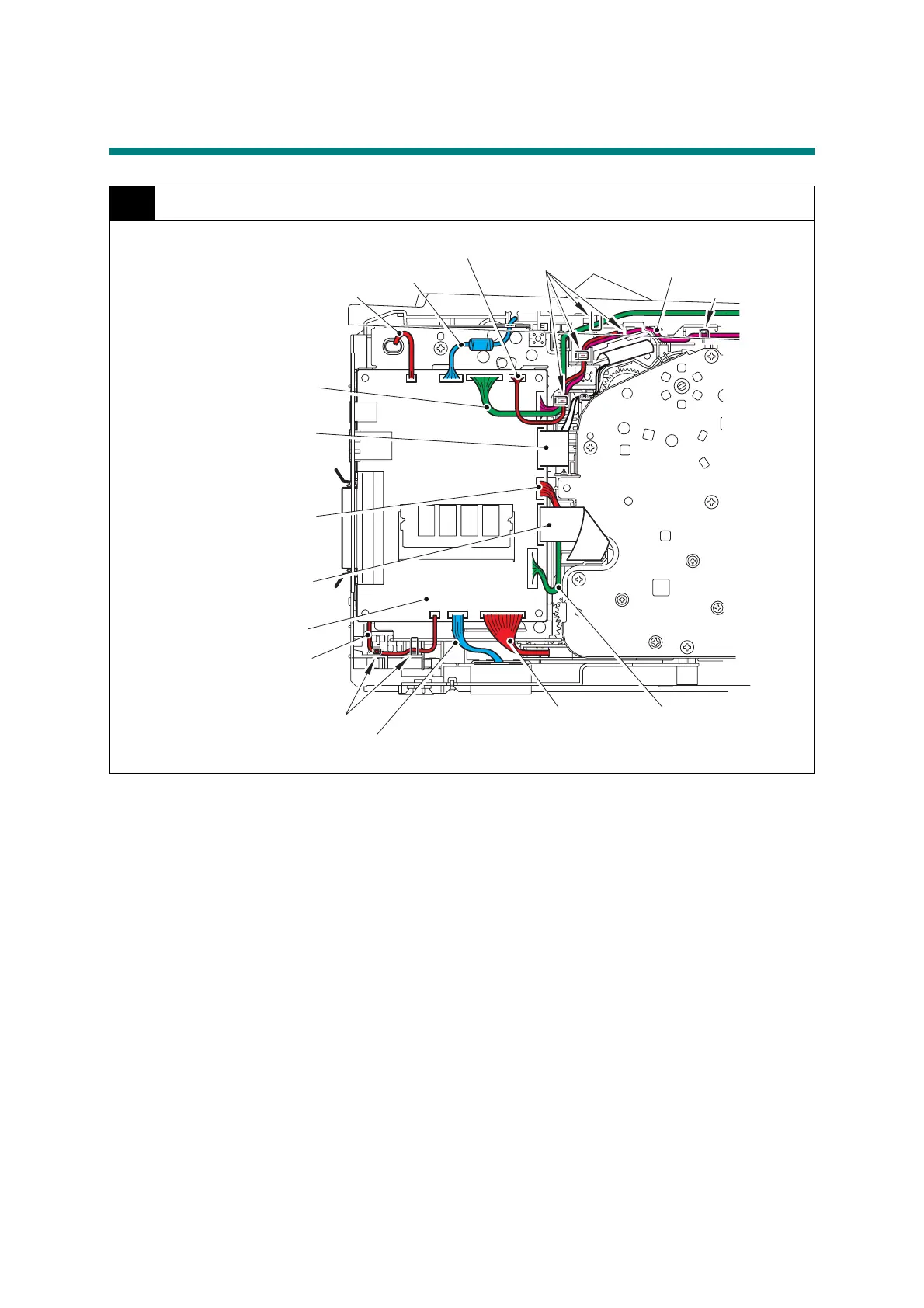

7. HARNESS ROUTING
1 Main PCB ASSY
Harness colors may be changed for any reason.
Hook
Wireless LAN harness (Shield)
Relay front harness (WH)
Hooks
Toner LED harness (RD, BL, WH)
Duplex solenoid harness (WH)
Panel harness (WH)
Laser unit flat cable
Center/side thermistor harness
(RD, BL, WH)
Main HVPS flat cable
Back cover sensor harness
(WH, BK)
LT harness (WH)
Main motor harness (RD, BL, WH) Low-voltage power
supply harness (WH)
Hooks
Main PCB ASSY
To Next Page
