Brother HL-5440D - Top Cover ASSY

3-24
Confidential
9.9 Top cover ASSY
(1) Remove the four taptite cup S M3x8 SR screws, and remove the main shield cover plate
from the machine.
(2) Disconnect the panel harness from the main PCB ASSY, and release the panel harness
from the securing fixtures.

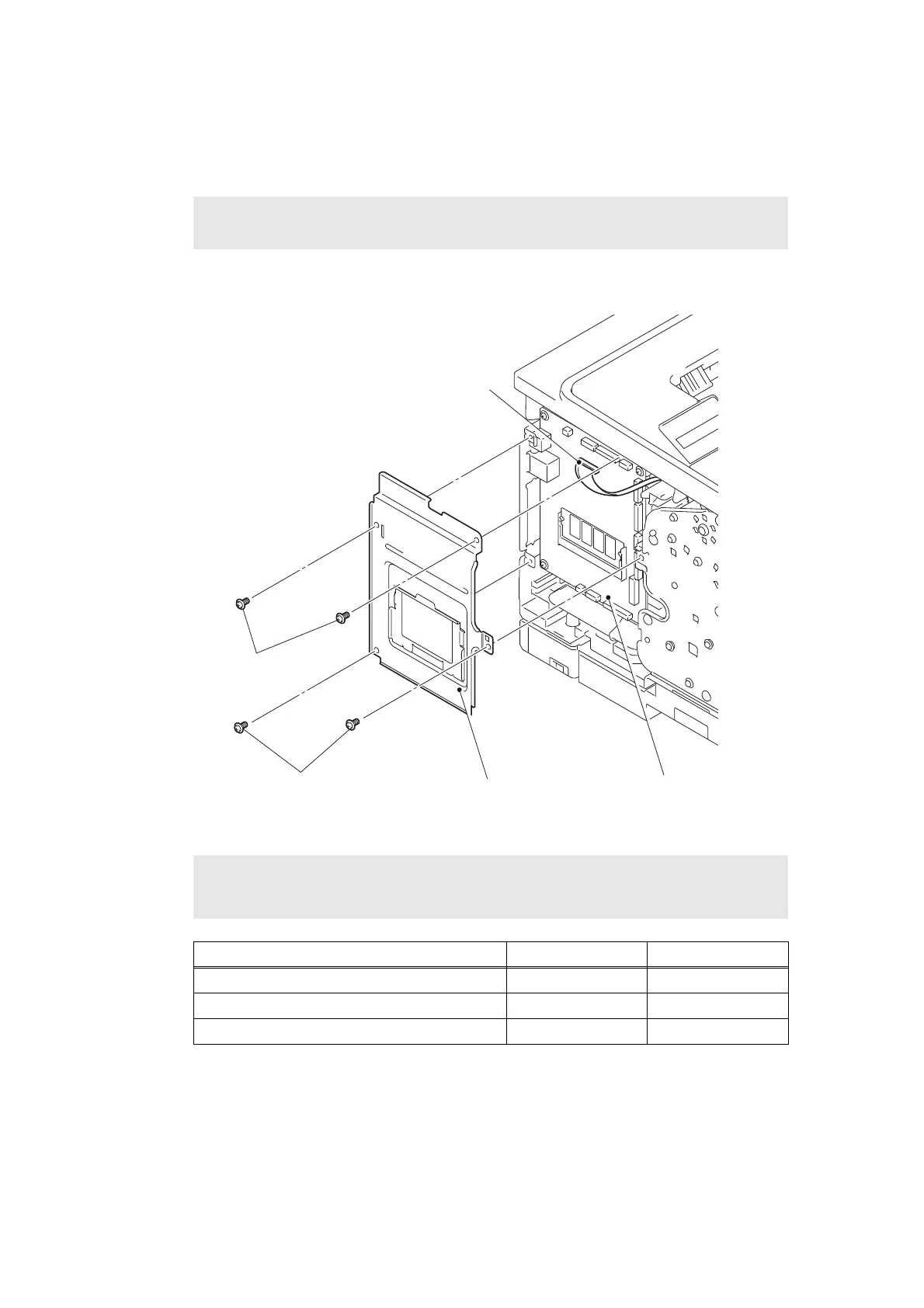

Fig. 3-22
Harness routing: Refer to “1.Main PCB ASSY”.
Note:
• HL-5440D is not equipped with a main shield cover plate.
Note:
• Use of screws A and B differs depending on the model.
Model A B
HL-5440D Not used Not used
HL-5450DN/5450DNT/5470DW/5470DWT Used Used
HL-6180DW/6180DWT Not used Used
Panel harness
Taptite cup S M3x8 SR
Main shield cover plate
Main PCB ASSY
Taptite cup S M3x8 SR
A
B
B
