3-28
Confidential
(7) Release the four hooks to remove the panel printed ASSY from the top cover ASSY.
(8) Release the two hooks to remove the LCD holder from the top cover ASSY.
(9) Release the two hooks to remove the LCD from the LCD holder.

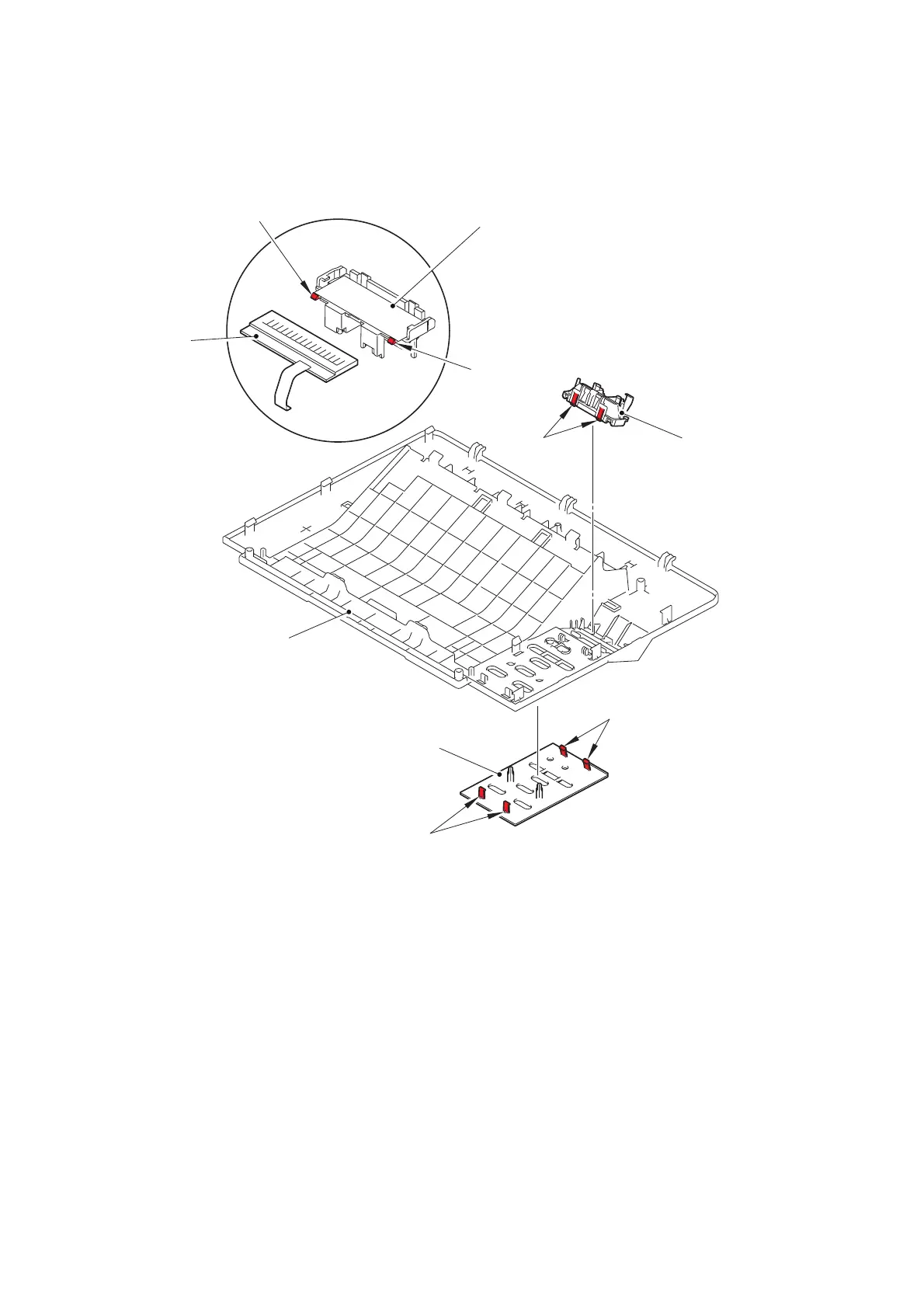

Fig. 3-26
LCD holder
Hook
Hook
LCD holder
LCD
Hooks
Top cover ASSY
Hooks
Panel printed ASSY
Hooks
