3-38
Confidential

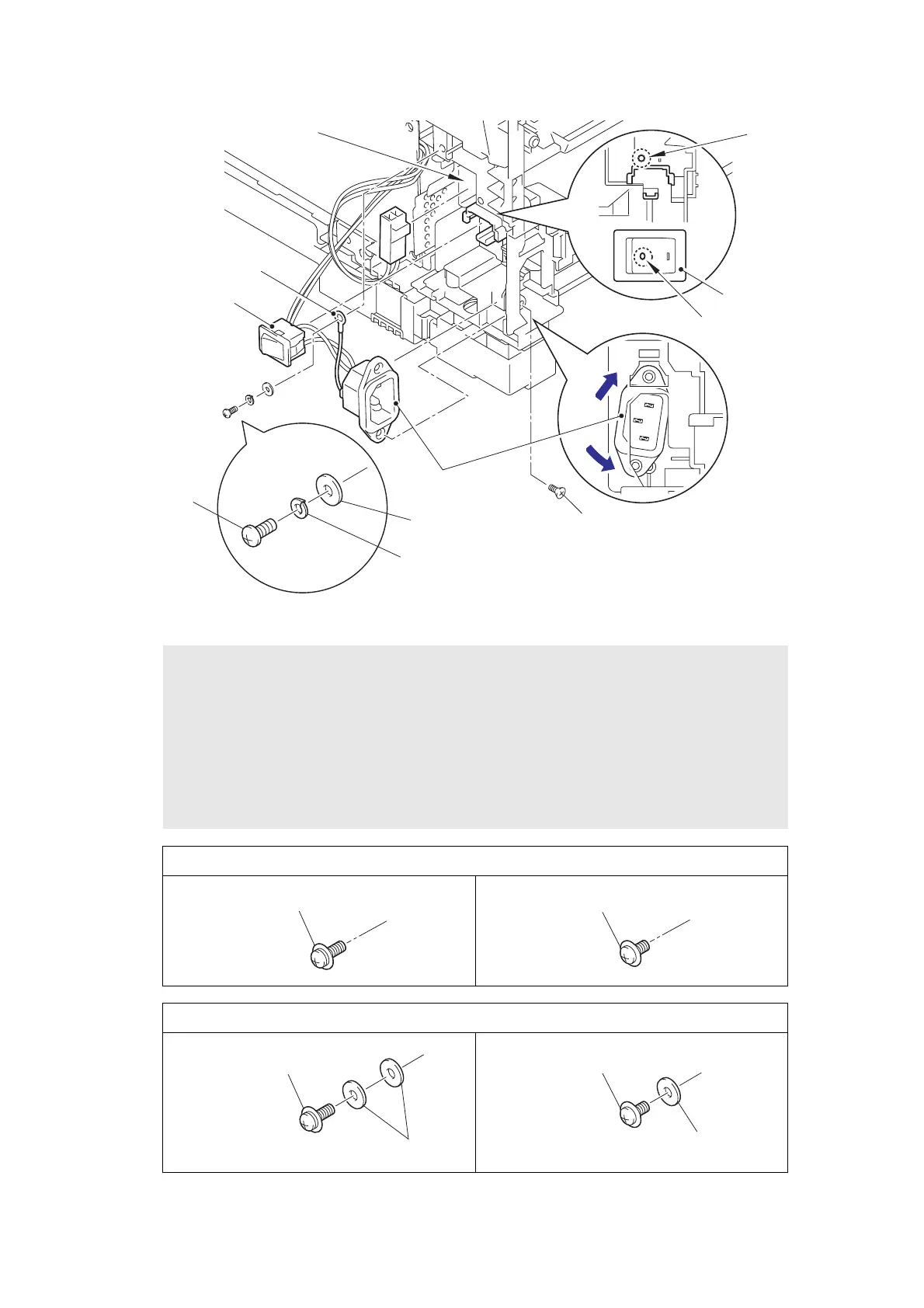

Fig. 3-38
Assembling Note:
• When attaching the power switch, align the marking on the power switch with the
marking on the machine.
• Attach the inlet as shown in the illustration above.
• Insert the inlet harness into the housing of the machine.
• For the screws shown in section A and section B, there are two other combinations
(see below) in addition to the combination shown in the illustration above. Be sure to
use the screw and washer provided with the machine.
<Section A>
<Section B>
Marking
Housing
Taptite flat B M3x10
Power switch
FG harness
Inlet
Power switch
Marking
1
2
Screw pan M4x8
Washer 5
Washer spring 2-4
<Section B>
Screw pan (S/P washer) M4x10
Screw pan (washer) M4x8 DB
Screw pan (S/P washer) M4x10
Washer 5
Screw pan (washer) M4x8 DB
Washer 5
To Next Page
