Brother HL-5440D - Page 189

3-70
Confidential
9.39 MP paper empty sensor PCB ASSY / MP paper empty actuator 1 / MP
paper empty actuator 2
(1) Remove the five taptite bind B M4x12 screws, and remove the main frame R from the
machine. Then pull out the low-voltage power supply harness from the main frame R.

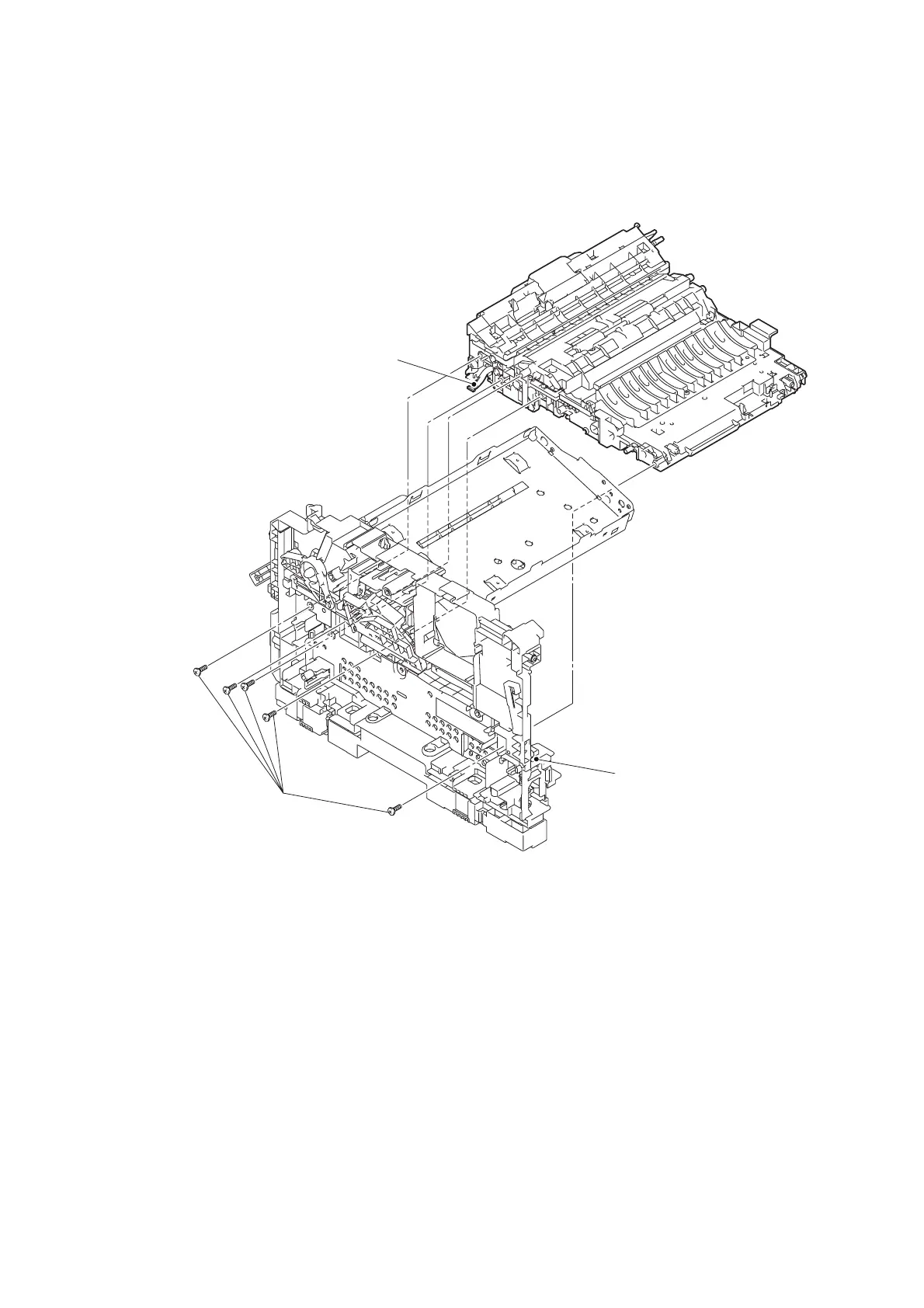

Fig. 3-71
Taptite bind B M4x12
Main frame R.
Low-voltage power supply harness
