(2) Remove the four HVPS chips.
(3) Remove the Taptite pan (washer) B M4x12DA screw and the Taptite cup S M3x8 SR
screw to remove the HVPS ground plate front.
(4) Remove the Taptite pan (washer) B M4x12DA to remove the HVPS ground plate rear.

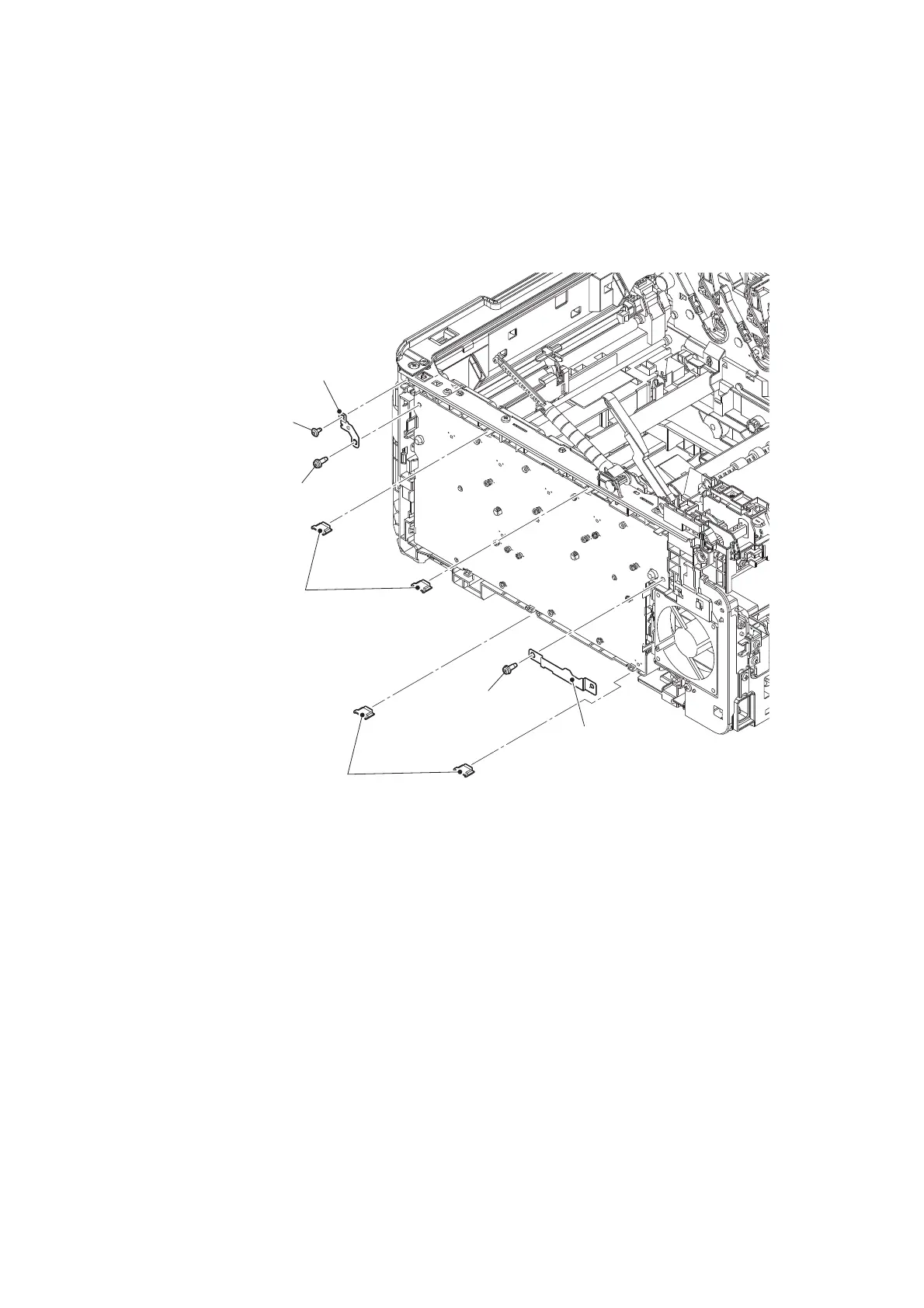

Fig. 3-44
HVPS ground plate front
Taptite cup S M3x8 SR
Taptite pan (washer)
B M4x12DA
HVPS ground plate rear
HVPS chips
Taptite pan (washer)
B M4x12DA
HVPS chips
