Brother HL-L3210CW Service Manual

3-64
Confidential
(6) Release the Cartridge sensor harness C/M/Y, the HVPS harness, the External temperature/
humidity sensor harness, the T1 paper empty/paper feed sensor harness, and the Manual
feed paper empty/regist rear/regist front sensor harness from the securing fixtures.
(7) Remove the two Taptite cup S M3x8 SR screws, the Taptite pan (washer) B M4x12DA
screw, the six Taptite bind B M4x12 (A) screws, and the Taptite bind B M4x12 (B) screw.
(8) Raise the Damper L ASSY to remove the Process drive unit.
(9) Release the High-voltage power supply flat cable from the securing fixtures and then
remove it from the machine.
(10) Release the Lock to disconnect the Process motor flat cable from the Process motor.

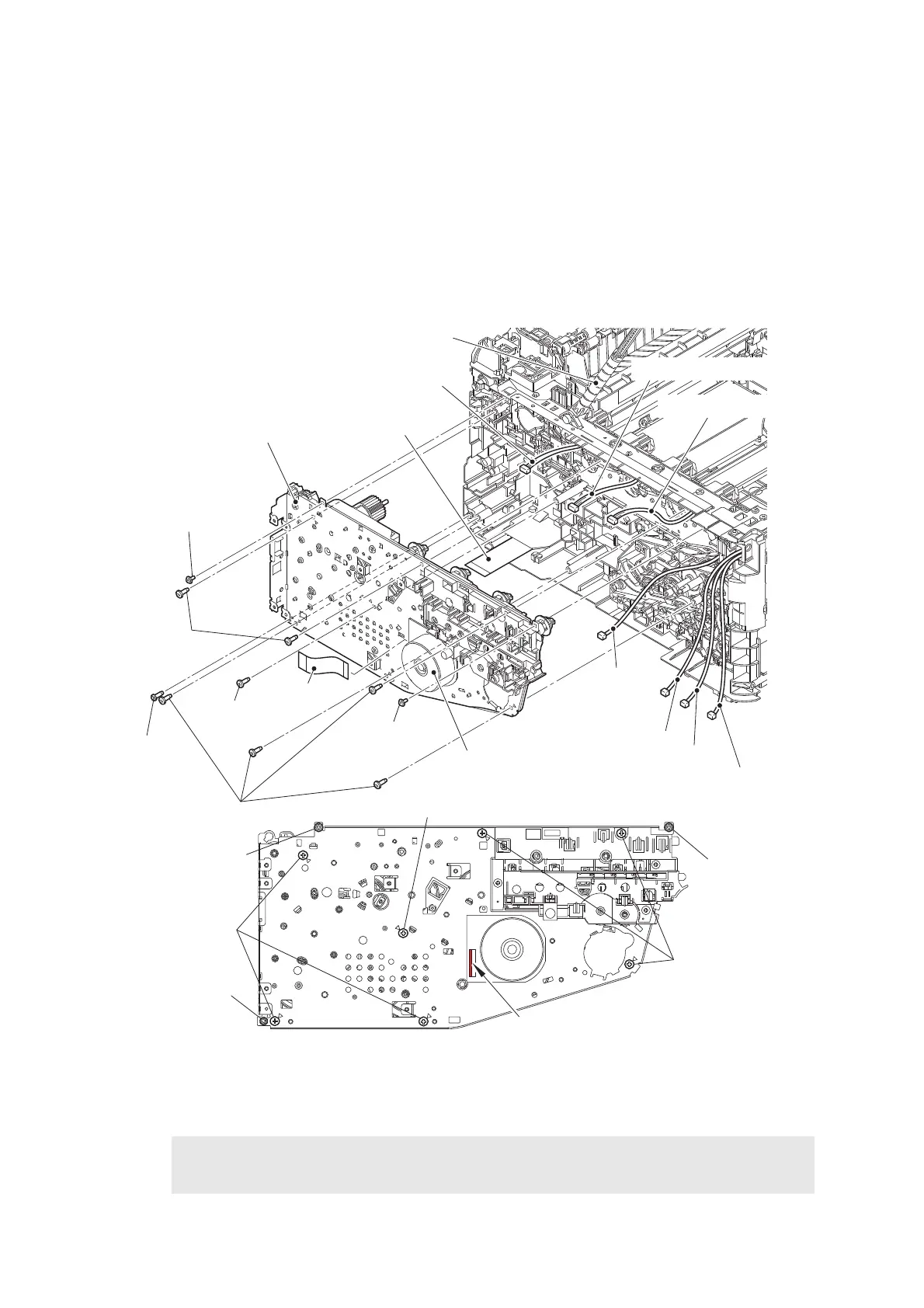

Fig. 3-55
Harness routing: Refer to “2. Main PCB, Cartridge sensor relay PCB, 5. High-voltage
power supply flat cable”.
Assembling Note:
• When attaching the Process drive unit, tighten the Taptite bind B M4x12 (B) screw first.
Taptite cup S
M3x8 SR
Taptite cup S
M3x8 SR
Process drive unit
Process motor
flat cable
Taptite cup S
M3x8 SR
Taptite cup S
M3x8 SR
Taptite bind B
M4x12 (A)
Taptite pan
(washer) B
M4x12DA
Taptite pan (washer)
B M4x12DA
Process motor
Taptite bind B M4x12 (A)
Taptite bind B
M4x12 (A)
Taptite bind B
M4x12 (A)
Taptite bind B M4x12 (B)
Taptite bind
B M4x12 (B)
High-voltage power
supply flat cable
Cartridge sensor harness C
External
temperature/
humidity sensor
harness
HVPS harness
T1 paper empty/paper
feed sensor harness
Manual feed
paper empty/
regist rear/
regist front
sensor harness
Cartridge sensor harness M
Cartridge sensor harness Y
Damper L ASSY
Lock

Brother HL-L3210CW Specifications

General

N-up printing	2, 4, 9, 16, 25
Duplex printing	No
Print technology	LED
Maximum resolution	2400 x 600 DPI
Warm-up time (from sleep mode)	24 s
Time to first page (black, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Duplex print speed (black, normal quality, A4/US Letter)	6 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Recommended duty cycle	300 - 1500 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PDF, PostScript 3, XPS
Display	LCD
Product color	Gray
Market positioning	Home & office
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Kindle Fire Printing, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print/Scan)
Paper input type	Cassette, Sheetfed
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	1
Sustainability certificates	Blue Angel, ENERGY STAR
Maximum internal memory	- MB
Sound pressure level (printing)	45 dB
Envelopes sizes	C5, Com-10, DL, Monarch
Custom media width	76.2 - 215.9 mm
Custom media length	116 - 355.6 mm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Package depth	589 mm
Package width	513 mm
Package height	372 mm
Package weight	20700 g
Power consumption (off)	0.04 W
Power consumption (standby)	8.8 W
Power consumption (printing)	390 W
Power consumption (PowerSave)	1 W
Energy Star Typical Electricity Consumption (TEC)	0.9 kWh/week
Standard interfaces	USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	AC
Bundled software	Nuance PaperPort 14 SE
Included black & color (CMYK) cartridges capacity	1000 pages
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	461 mm
Width	410 mm
Height	252 mm
