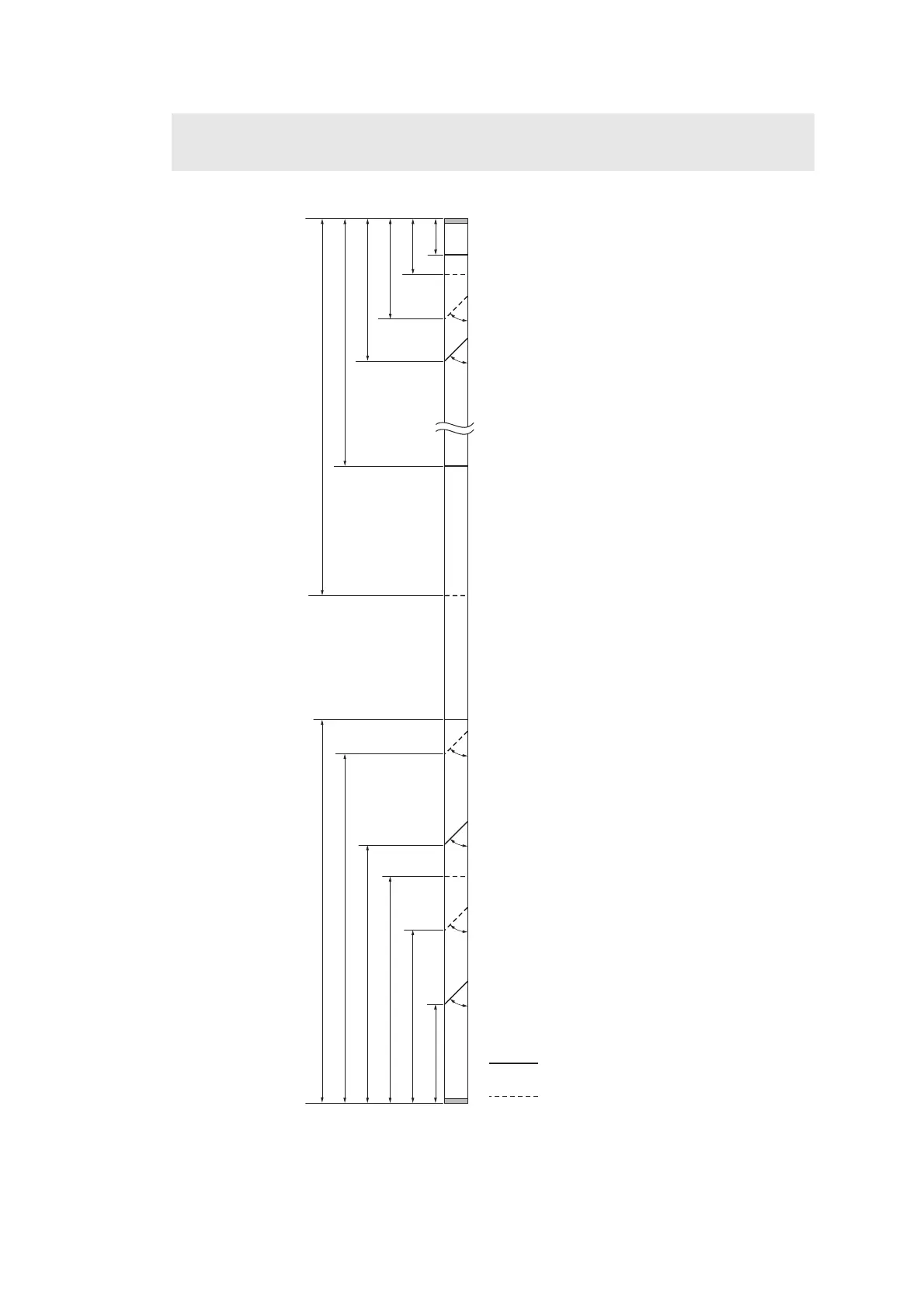

Fig. 3-56
Assembling Note:
• Fold the High-voltage power supply flat cable at the positions described below.
Mountain fold
45°
45°
45°
45°
45°
45°
75±1
132±1
172±1
26±1
41±1
75±1
196±1
265±1
107±1
337±1
300±1 445±1
Valley fold
Main PCB side
High-voltage power supply PCB side
