3-66
Confidential

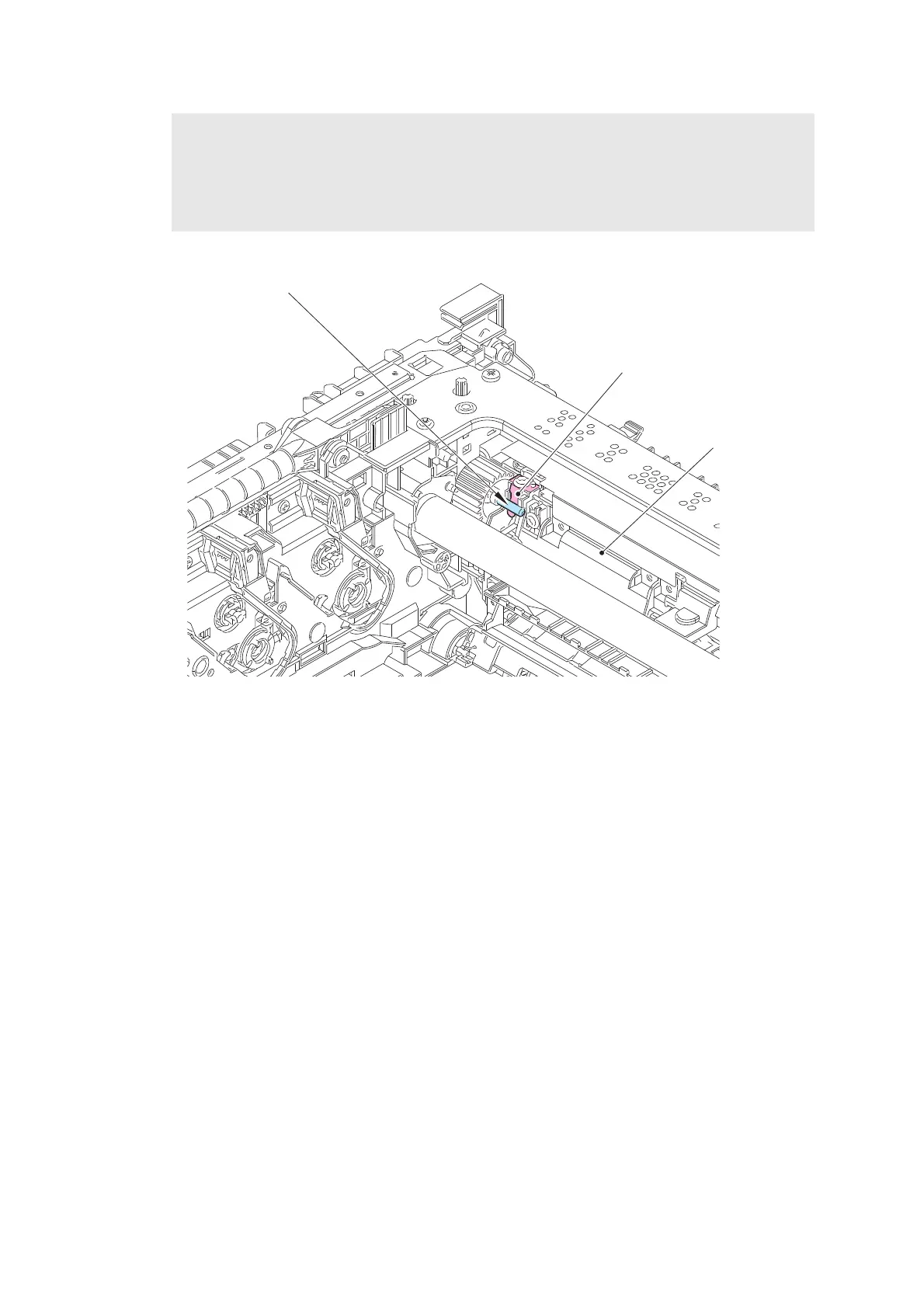

Fig. 3-57
Assembling Note:
• If you removed the Process drive unit while the Fuser unit was attached on the machine,
remove the Fuser unit once (refer to “9.5 Fuser cover ASSY / Fuser unit”) and reattach it
after attaching the Process drive unit.
The Conductive leaf spring of the Fuser unit may be deformed by the Calking shaft.
Fuser unit
Conductive leaf spring
Calking shaft
