Brother HL-L3210CW - Page 206

3-68
Confidential
Fig. 3-59

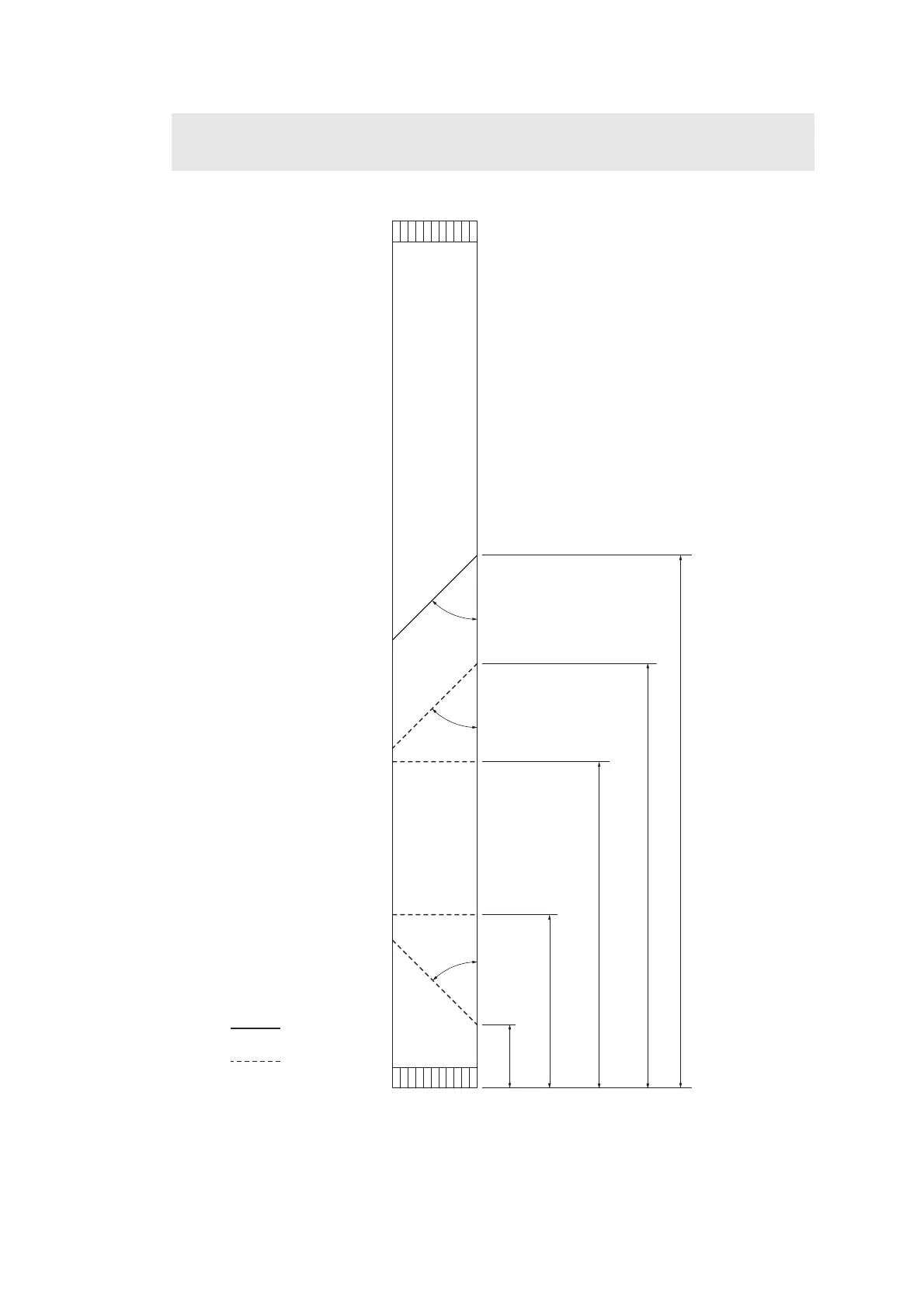

Assembling Note:
• Fold the Paper feed motor flat cable at the positions described below.
Mountain fold
45°
45°
45°
Valley fold
Main PCB side
Paper feed motor side
15±2
42±2
79±2
103±2
129±2
