(10) Disconnect the Low-voltage power supply harness from the Low-voltage power supply
PCB.
(11) Remove the three Taptite cup S M3x6 SR screws to remove the Low-voltage power
supply PCB and the LVPS insulation sheet from the LVPS plate lower ASSY.

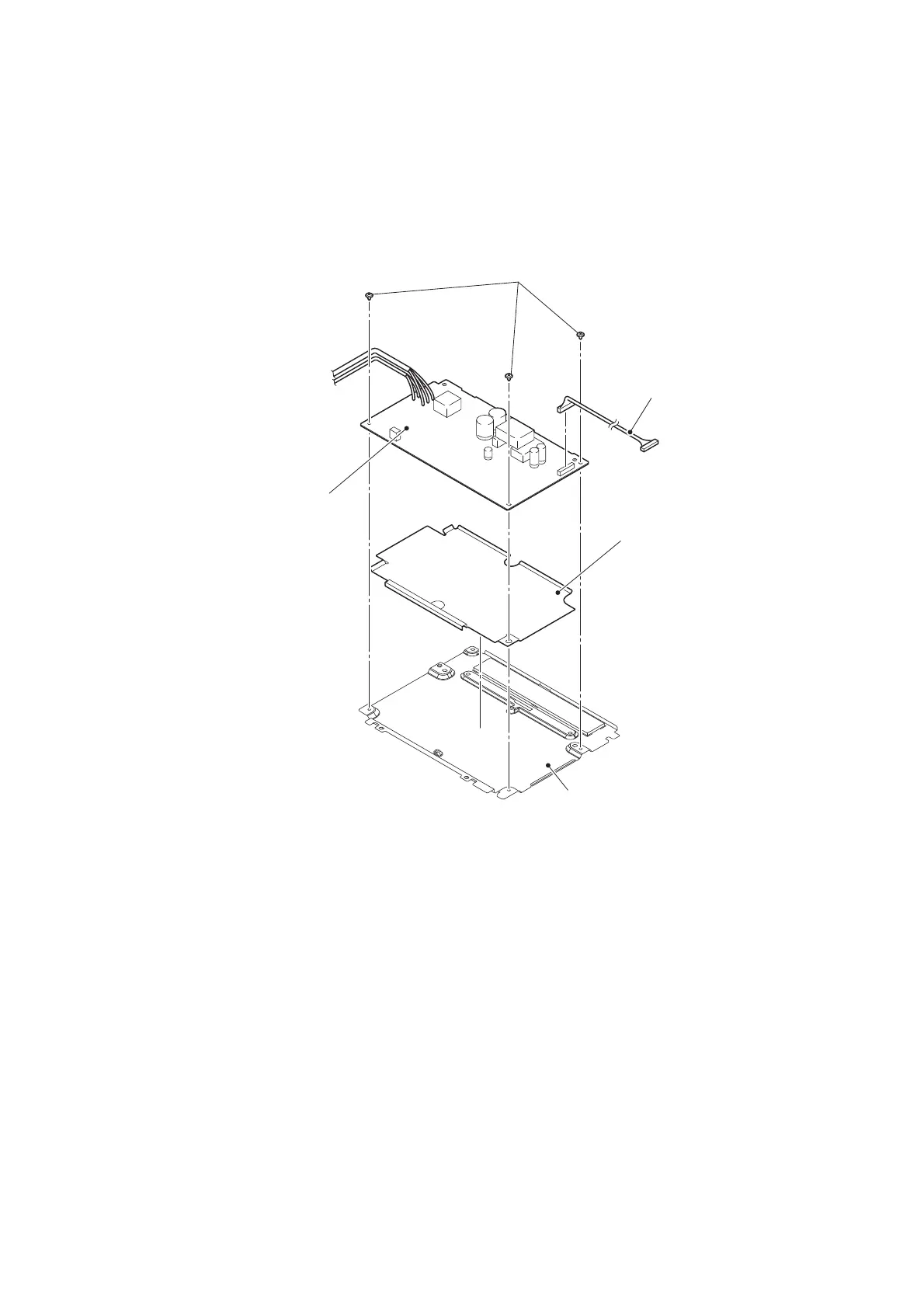

Fig. 3-73
LVPS plate lower ASSY
Low-voltage power
supply harness
Taptite cup S M3x6 SR
Low-voltage power
supply PCB
LVPS insulation sheet
