(8) Remove the Taptite bind B M3x10 screw to remove the Fuser cover R.

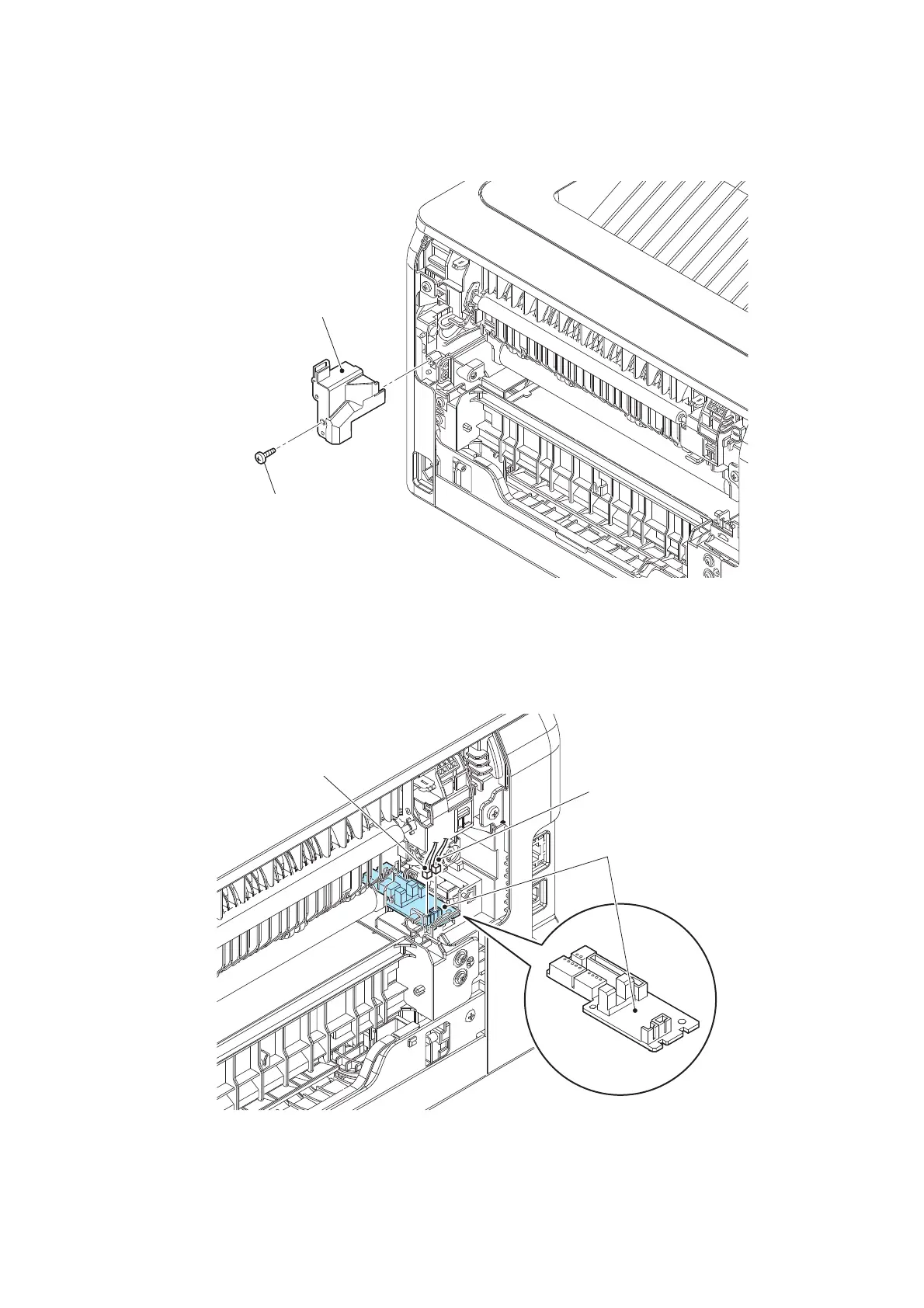

Fig. 7-9
(9) Disconnect the Center thermistor harness and the Side thermistor harness from the Eject
sensor PCB.
Fig. 7-10
Fuser cover R
Taptite bind B M3x10
<Back side>
Center thermistor harness
Side thermistor harness
Eject sensor PCB
<Back side>
