(10) Remove the two Taptite pan (washer) B M4x12DA screws. Pull out the Fuser unit on the
Frame L side in the direction of arrow 10a and then remove it in the direction of arrow 10b.
(11) Disconnect the Heater harness of the Fuser unit from the LVPS heater harness.

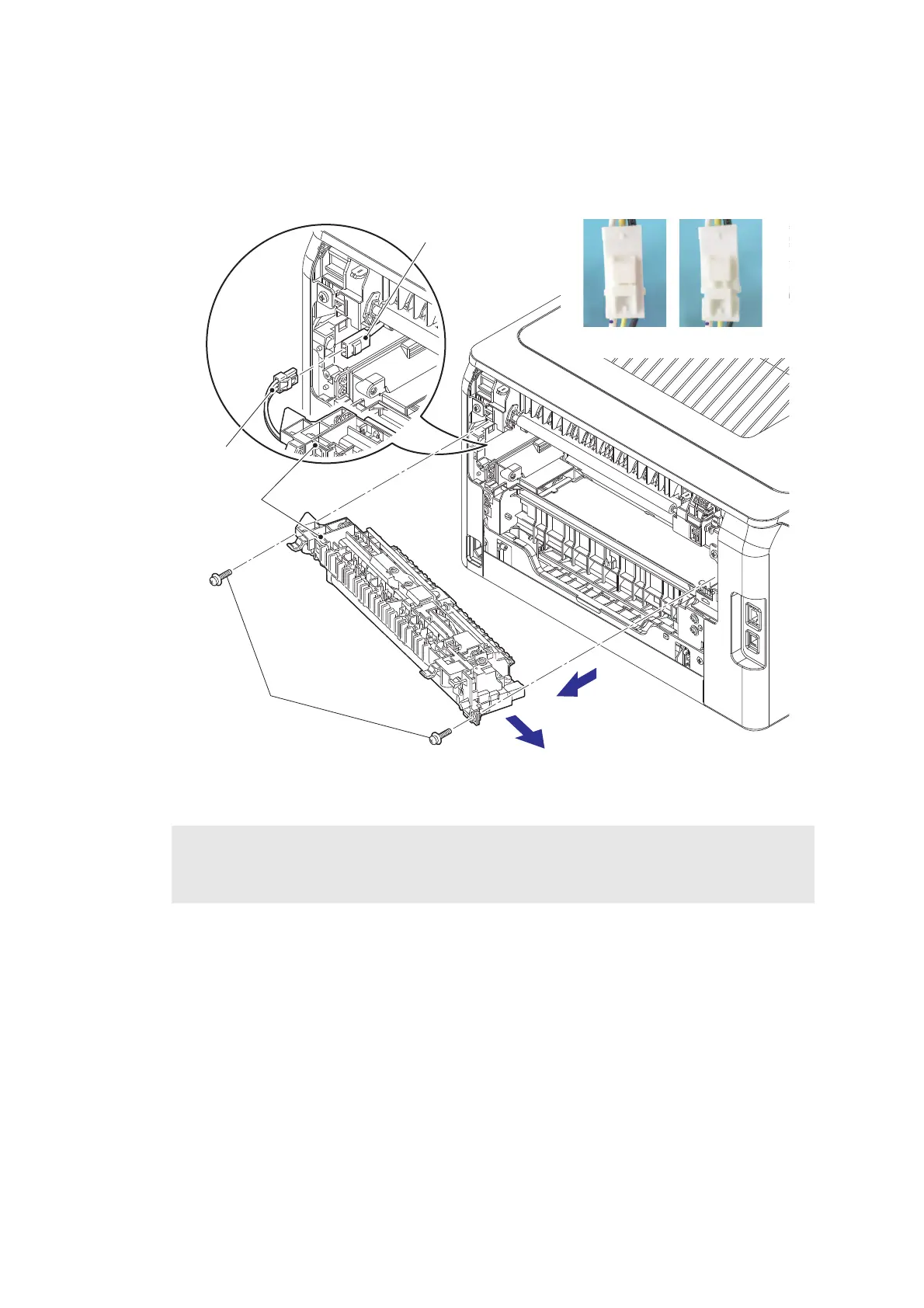

Fig. 7-11
Assembling Note:
• After connecting the Heater harness, pull the Connector on the Heater harness side
while holding the Connector on the LVPS heater harness side to make sure it is locked.
NGOK
LVPS heater harness
Heater harness
Fuser unit
Taptite pan (washer)
B M4x12DA
<Back side>
10a
10b
