Fig. 7-12
(12) After replacing the Fuser unit, reset the counter.
(Refer to “1.3.28 Reset counters for consumable parts (Function code 88)” in Chapter 5.)
Note:
• Do not apply a physical impact or vibration to the Fuser unit.
Assembling Note:

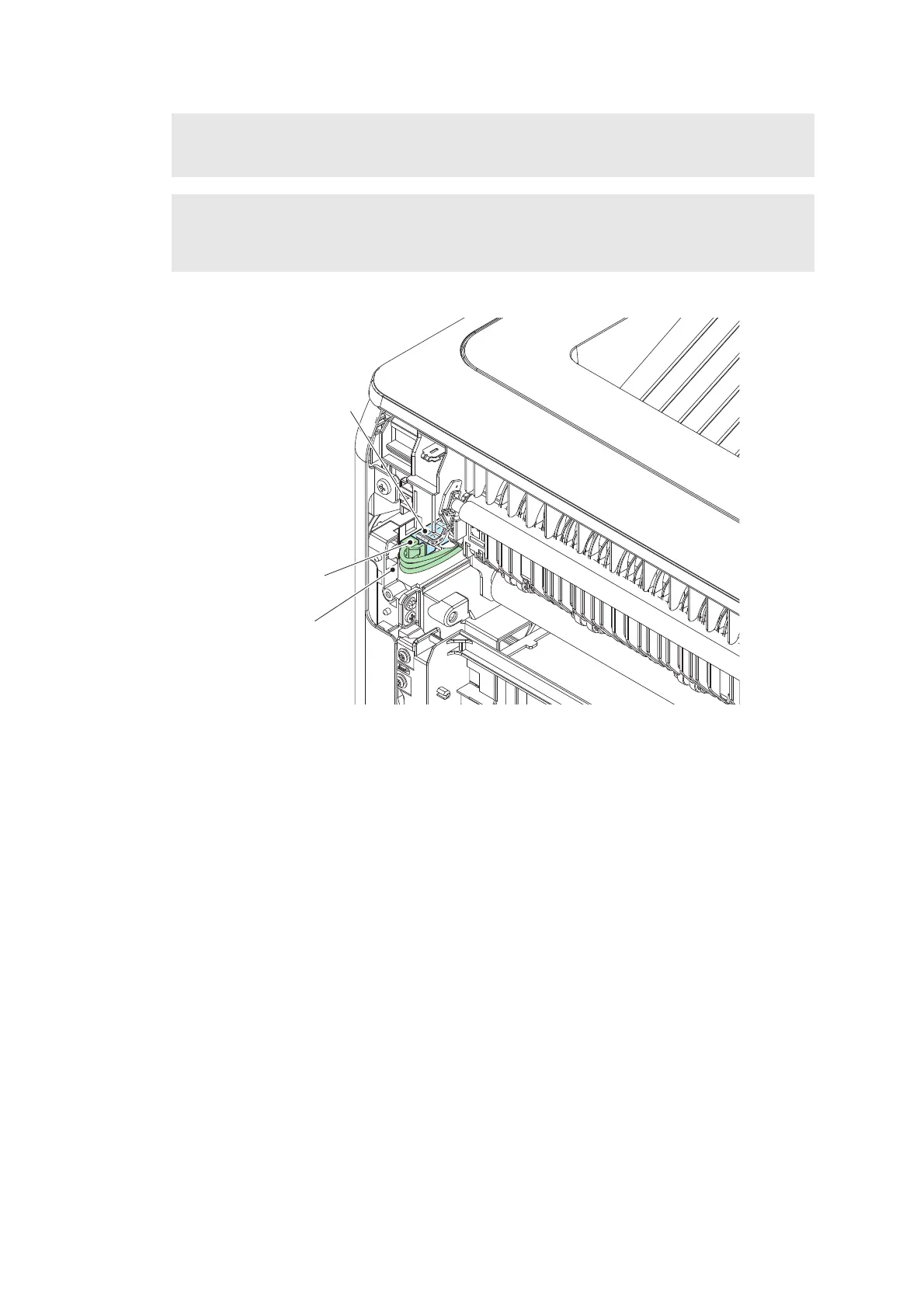

• After connecting the Heater harness of the Fuser unit to the LVPS heater harness, the
Heater harness is housed so that it does not come out of the Frame R.
LVPS heater harness
Heater harness
Frame R
<Back side>
