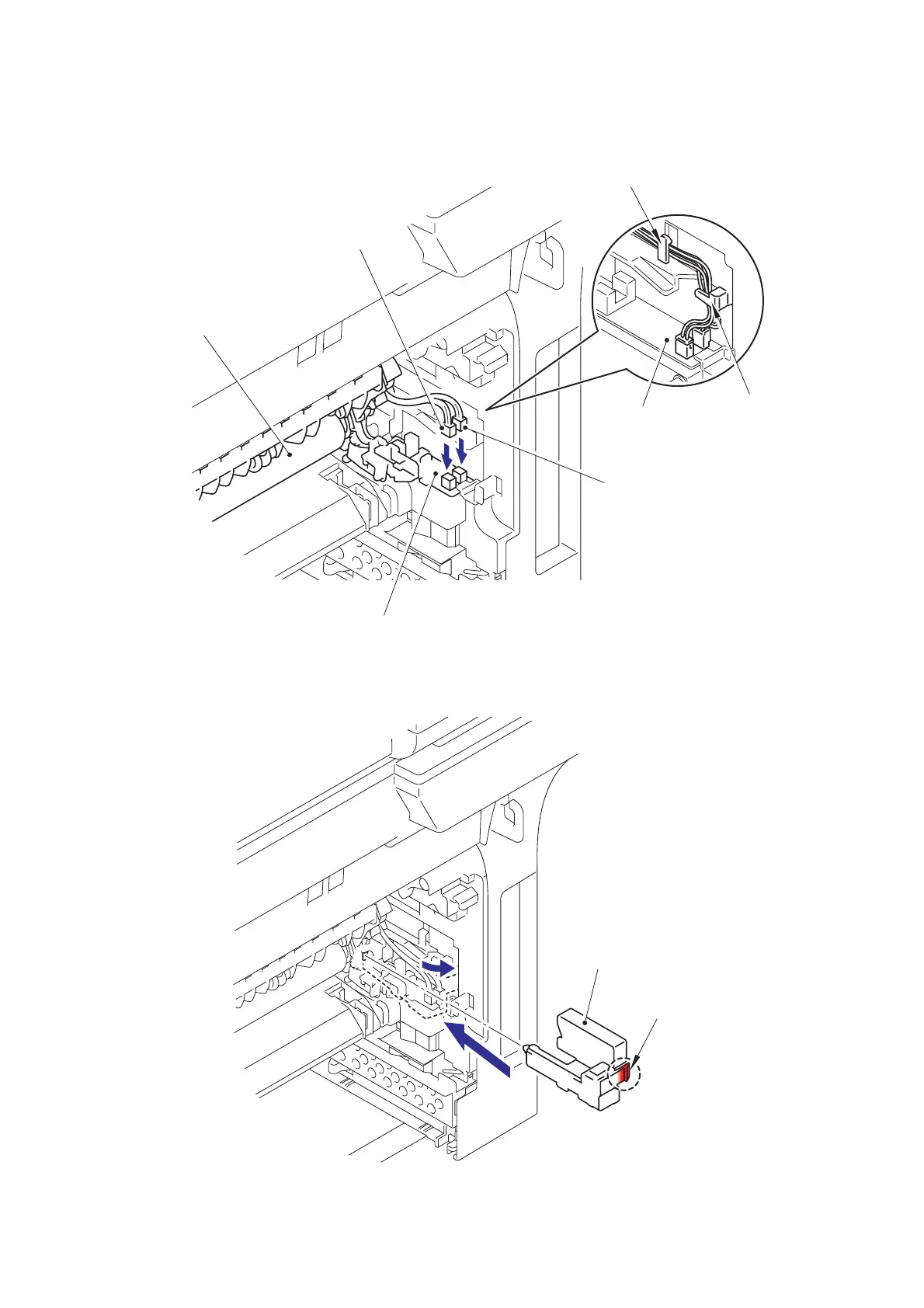

(24) Connect the connectors of the Thermistor ASSY M and Thermistor ASSY S onto the
Relay rear PCB ASSY.
Fig. 4-38
(25) Install the FU harness cover 2.
Fig. 4-39
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Relay rear PCB ASSY
Relay rear PCB ASSY
Hook
Hook
3a
3b
25b
25a
Hook
FU harness cover 2
