9.8.21 Document Front Actuator 2 / Document Front Sensor 2
(For the models with the DX only)
(1) Release the Hooks of the Document front sensor 2 to remove the Document front sensor
2 from the Paper feed chute ASSY.
(2) Disconnect the Connector from the Document front sensor 2.

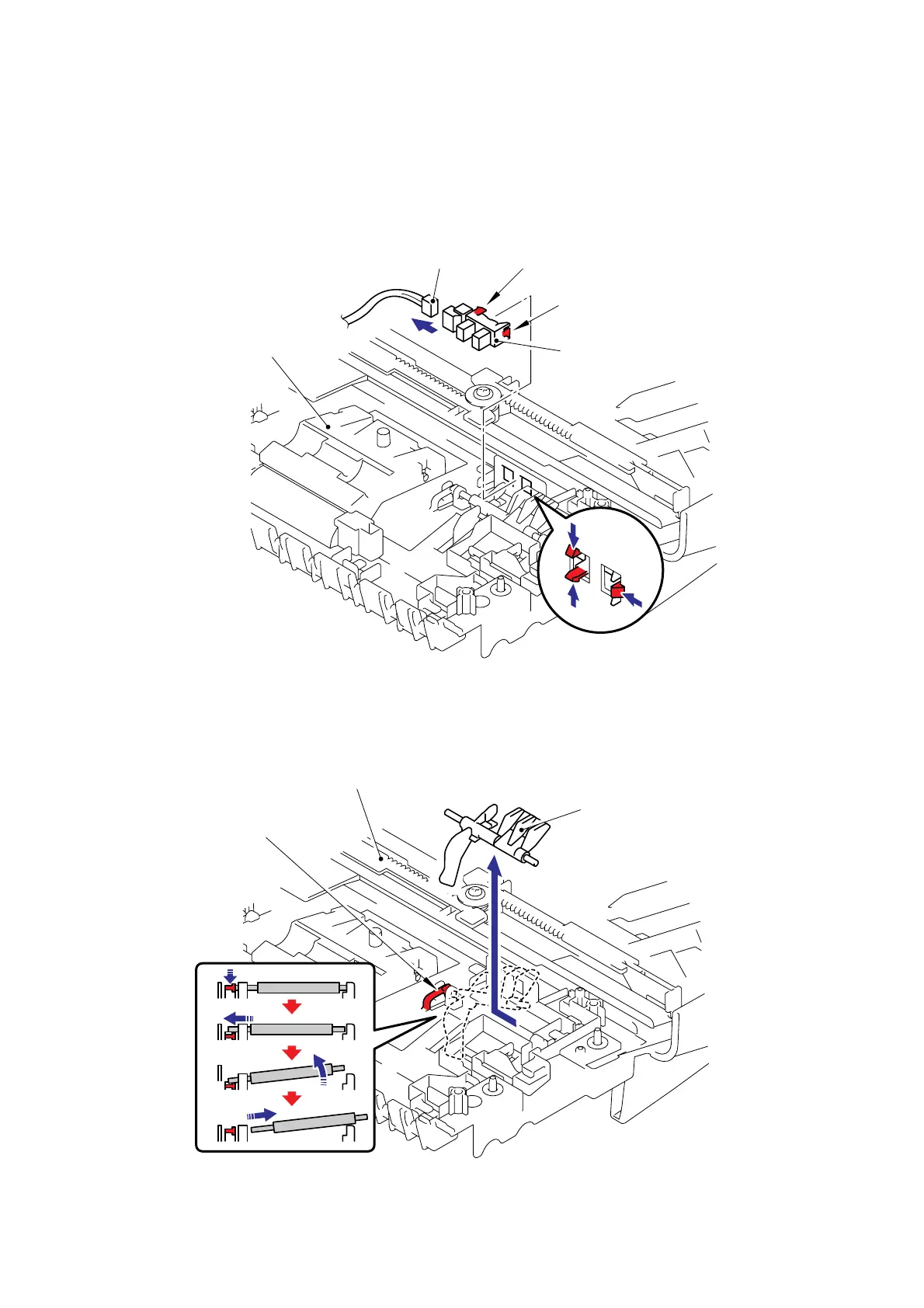

Fig. 5-70
(3) Push down the Stopper, slide the Document front actuator 2 to the stopper side and pull
up the Document front actuator 2 to remove.
Fig. 5-71
Connector
Paper feed chute ASSY
Hook
Hook
Document front sensor 2
Stopper
Paper feed chute ASSY
Document front actuator 2
