Brother MFC-8880DN Service Manual

5-107
Confidential
9.8.51 Separate Roller Holder ASSY
(1) Turn the ADF chute ASSY upside down.
(2) Remove the cup B M3x10 Taptite screw.
(3) Pull up the Separate roller holder ASSY and remove the Bushing from the Lower
document chute ASSY, and then remove the Separate roller holder ASSY.

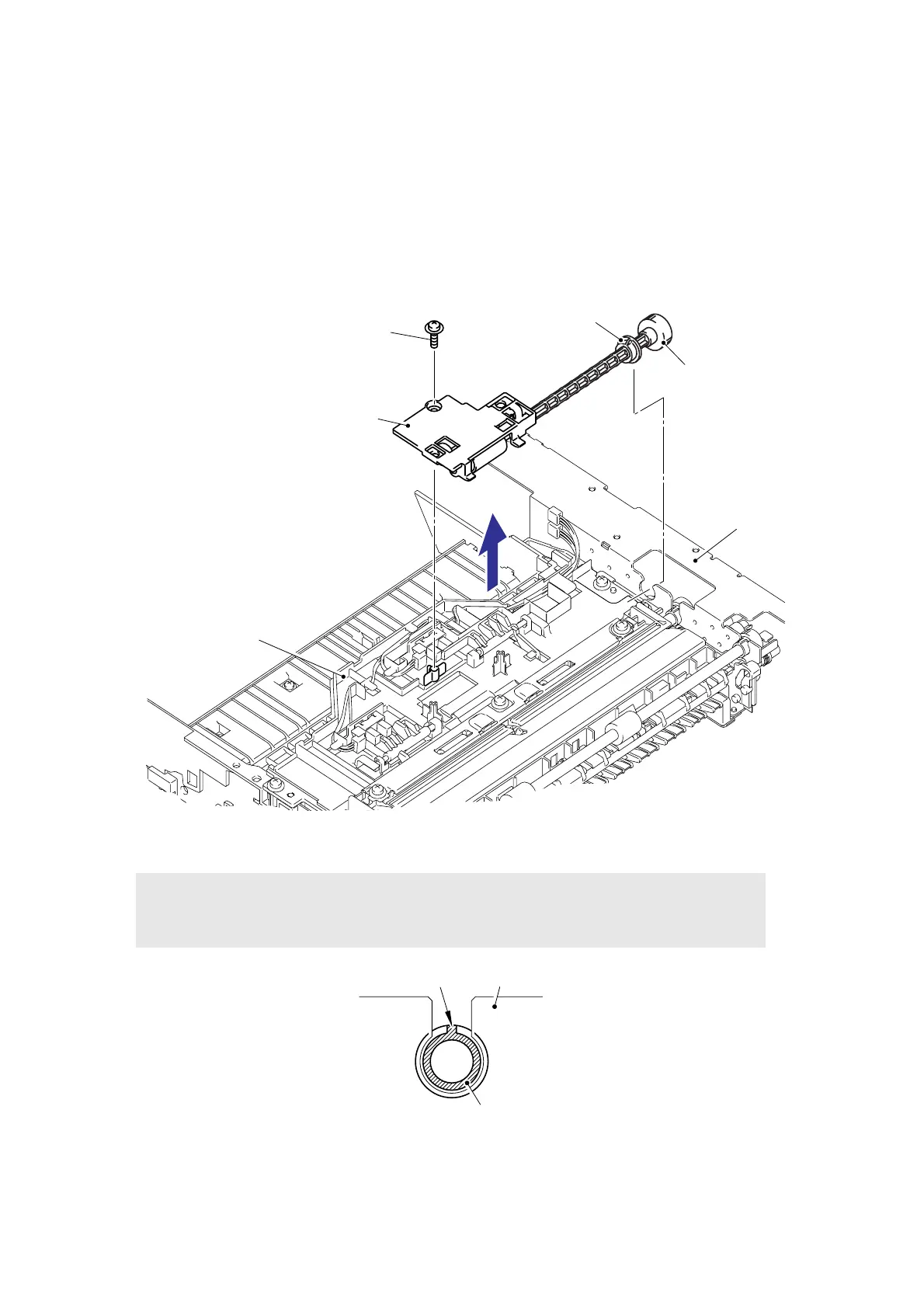

Fig. 5-115
Fig. 5-116
Assembling Note:
• When assembling the Separation roller gear 35, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Separate roller holder ASSY
Lower document chute ASSY
ADF chute ASSY
Taptite cup B M3x10
Bushing
Separation roller gear 35
Boss
ADF chute ASSY
Bushing
